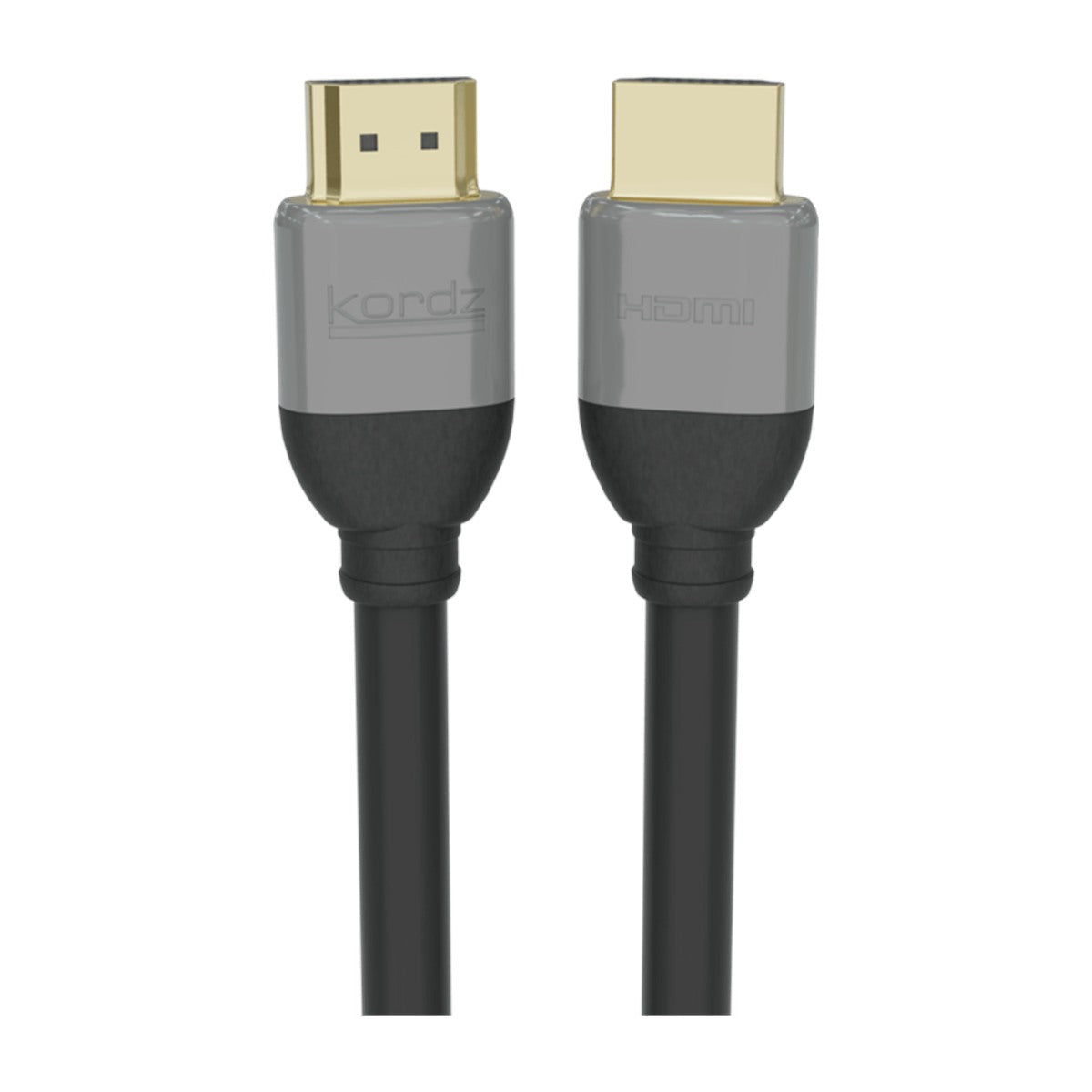

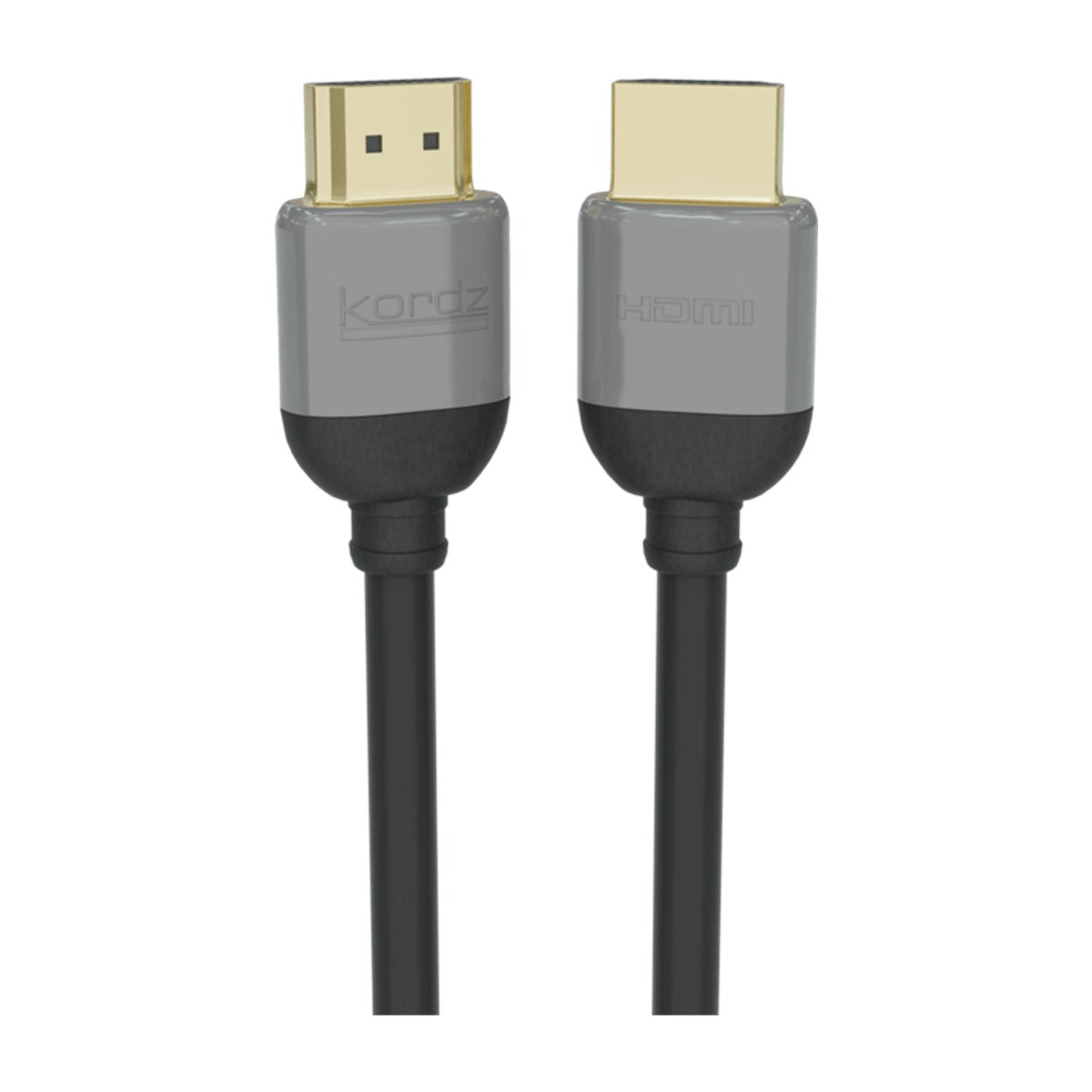

Kordz PRS4 Passive HDMI Cable 9 m Charcoal

Kordz PRS4 Passive Ultra High Speed 48Gbps HDMI Cables are designed to meet the high demands and rigours of professional integration, with their compact, gold-plated 2kg retention die-cast HDMI connectors, and highly flexible fire-rated cable. Ultra High Speed certified to 9m, they enable hassle-free and electronics-free installation and support the latest HDMI features when using 4K HFR or 8K devices.

PRODUCT OUTLINE

• Ultra High Speed Certified
• Supports 48Gbps 8K60 Dynamic HDR on all lengths
• Compact connector with full internal zinc-alloy diecast housing
• Easy installation aided by the unique Kordz shark-nosed dust-cap
• Each cable individually performance tested
• Flexible UL CMG fire-rated cable perfect for high performance applications
• RoHS Compliant
• Lifetime warranty

APPLICATION

• Data Rate: Up to 48Gbps (FRL mode) | up to 18.2Gbps (TMDS mode)
• Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
• Video Refresh Rate: Up to 240 frames per second
• Colour Depth: Up to 16 bits
• Colour Formats: RGB 4:4:4 / Y’CBCR 4:2:2 / Y’CBCR 4:2:0
• Content Protection: Up to HDCP 2.3 supported
• Audio Sample Rate / Channel: Up to 192KHz
• Audio Sample Size: Up to 24 bits
• Audio Channels: Up to 32 channels
• Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
• Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Ethernet channel, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC), High Dynamic Range (HDR), Dynamic HDR, Variable Refresh Rate (VRR), Quick Media Switching (QMS), Quick Frame Transport (QFT), Auto Low Latency Mode (ALLM), Display Stream Compression (DSC), Source-Based Tone Mapping (SBTM)

TECHNICAL INFO

HDMI CERTIFICATION 0.5m – 9.0m PASSIVE

• HDMI CTS Certification: Ultra High Speed HDMI® Cable
• DPL Labs Certified Data Rate: 12.0Gbpsc, 48Gbps agg
• Supported Data Rate: ≥12.0Gbpsc, 48Gbps agg (8K UHD)
• Supported HDMI Clock: 1200MHz

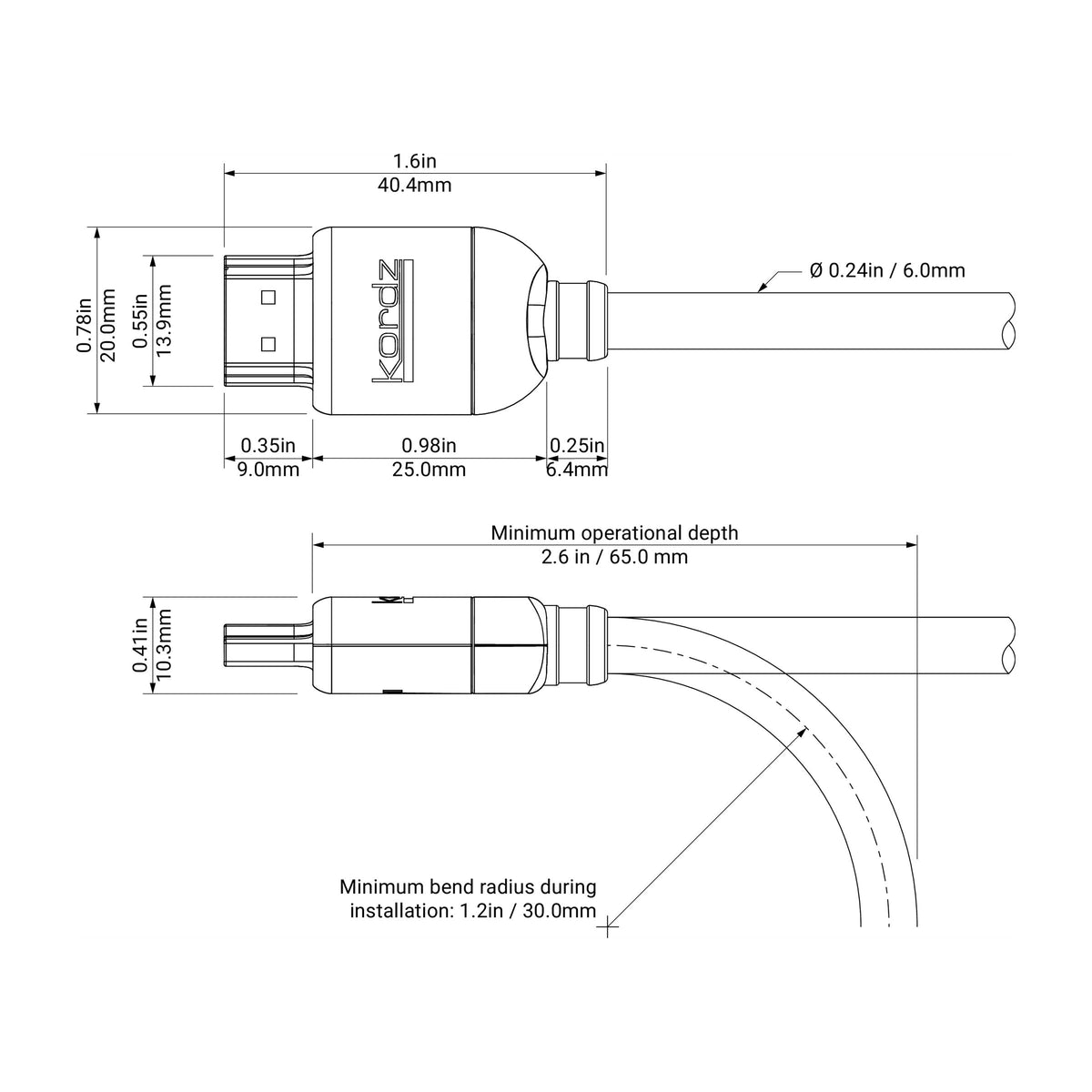

MECHANICAL

• Cable Diameter: 0.5m – 3.0m: 30 AWG 6.0mm / 0.24in Ø | 4.0m – 5.0m: 26 AWG, 8.0mm | 0.31in Ø| 7.0m – 9.0m: 24 AWG 9.0mm | 0.35in Ø
• Mounting Length: 0.5m – 3.0m: 30AWG, 59.0mm/2.3” |4.0m – 5.0m: 26 AWG, 66mm/2.6” |7.0m – 9.0m: 24 AWG, 110.5mm/4.4”
• Cable Bend Radius: 0.5m – 3.0m: 30 AWG, 25.0mm/1.0” | 4.0m – 5.0m: 26 AWG, 32.0mm/1.3” |7.0m – 9.0m: 26 AWG, 72.0mm/2.8”
• Retention Force (nominal): 20N (approx. 2kg / 4.4lbs) +10/-5%

CONSTRUCTION

• Primary Conductors: Solid 30-24 AWG OFC, length dependent
• Insulation on TMDS: Polyethelyene / Polypropylene, length dependent
• Insulation on 4C + HEAC Pairs: Polyethelyene / Polypropylene, length dependent
• Shielding on TMDS Pairs: AL/Mylar, 100% Coverage with 25% Overlapping
• Shielding Overall: AL/Mylar, 125% Coverage + Tinned copper braid, min 85% coverage
• Cable Jacket: UL CMG fire-rated PVC composite materials
• HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1μ” 24K Gold plated
• HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
• Termination: High Frequency Soldering
• HDMI Backshell: ABS front shell with PVC injection moulded boot and strain relief

WARRANTY

The Kordz PRS4 Passive HDMI Cable is backed by our Lifetime Guarantee that promises maintained product functionality and performance for your lifetime.
