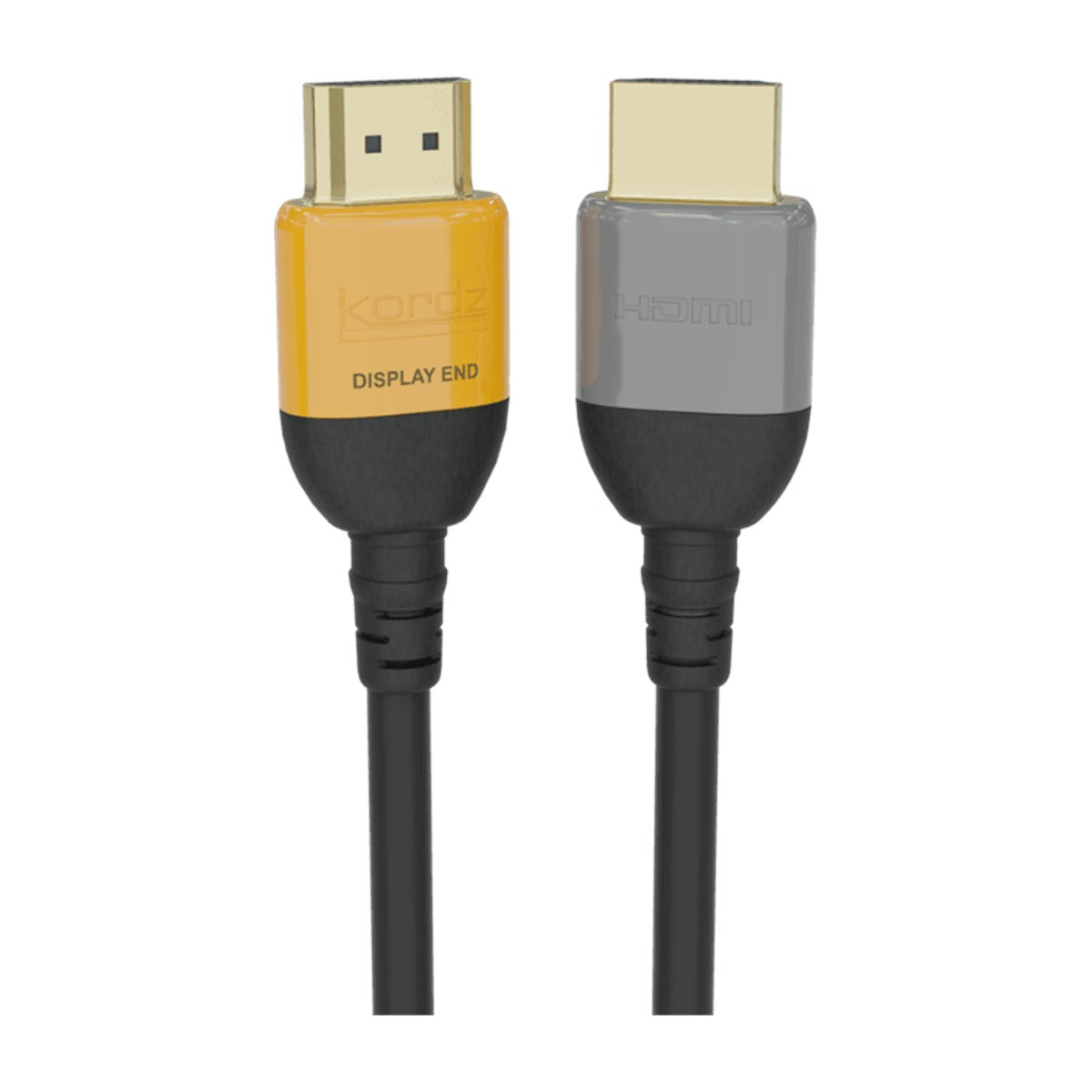

Kordz PRS4 Active Optical HDMI Cable 10 m Charcoal

Kordz PRS4 Active Optical Ultra High Speed HDMI® Cable is designed to meet the high demands and rigours of professional integration, with its compact, gold-plated 2kg retention die-cast HDMI connectors, and highly flexible fire-rated cable. Ultra High Speed certified to 20m, enabling the full benefits of the latest HDMI technology when using 4K HFR or 8K devices.

PRODUCT OUTLINE

• Ultra High Speed Certified
• Supports 48Gbps 8K60 Dynamic HDR on all lengths
• 15μ” gold-plated solid copper pins
• Compact connector with full internal zinc-alloy diecast housing
• Easy installation aided by the unique Kordz shark-nose dust-cap
• Each cable individually performance tested
• 2 year warranty

APPLICATION

• Data Rate: Up to 48Gbps (FRL mode) | up to 18.2Gbps (TMDS mode)
• Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
• Video Refresh Rate: Up to 240 frames per second
• Colour Depth: Up to 16 bits
• Colour Formats: RGB 4:4:4 / Y’CBCR 4:2:2 / Y’CBCR 4:2:0
• Content Protection: Up to HDCP 2.3 supported
• Audio Sample Rate / Channel: Up to 192KHz
• Audio Sample Size: Up to 24 bits
• Audio Channels: Up to 32 channels
• Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
• Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Ethernet channel, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC), High Dynamic Range (HDR), Dynamic HDR, Variable Refresh Rate (VRR), Quick Media Switching (QMS), Quick Frame Transport (QFT), Auto Low Latency Mode (ALLM), Display Stream Compression (DSC), Source-Based Tone Mapping (SBTM)

TECHNICAL INFO

HDMI CERTIFICATION 10.0m – 20.0m ACTIVE OPTICAL

• HDMI CTS Certification: Ultra High Speed HDMI® Cable
• DPL Labs Certified Data Rate: 12.0Gbpsc, 48Gbps agg
• Supported Data Rate: ≥12.0Gbpsc, 48Gbps agg (8K UHD)
• Supported HDMI Clock: 1200MHz

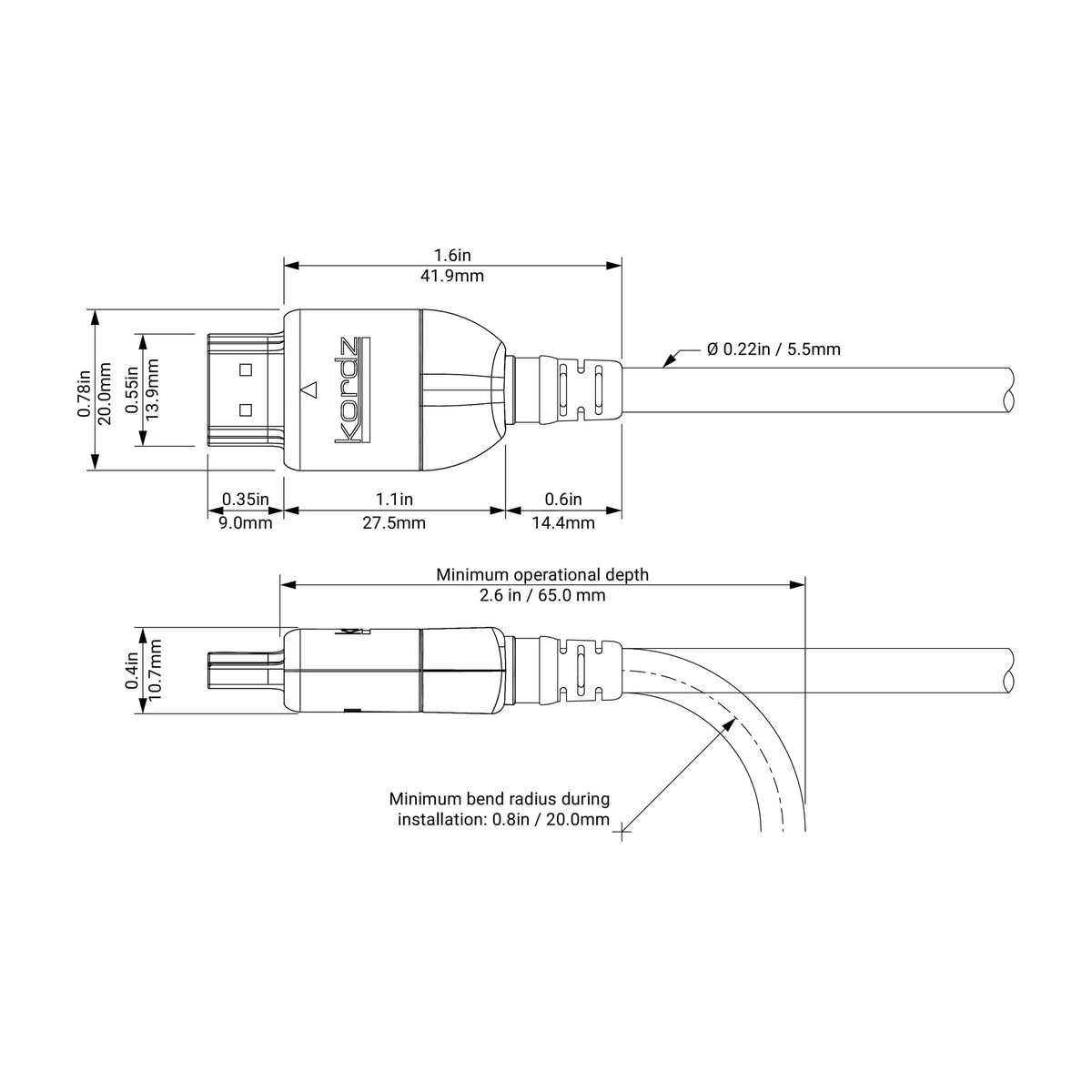

MECHANICAL

• Cable Diameter: 5.5mm±0.30mm / 8.2mm±0.30mm
• Mounting Length: 41.9mm/1.96″
• Cable Bend Radius: 20.0mm/0.78″ – 25.0mm/ 0.98″
• Retention Force (nom): 20N (approx. 2kg / 4.4lbs) +10/-5%

CONSTRUCTION

• FRL/TMDS Conductors : OM2 (50/125µm) optical fibre
• Conductors: Bare copper, 32-26AWG
• Shielding Overall: Al-PET (nom. 25% overlapping, Al side face out) Tinned copper wire braiding(16/13/0.08mm), with nom. 85% coverage
• Cable Jacket Material: LSZH rated composite (10.0m – 15.0m), PVC composite (20.0m)
• HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1μ” 24K Gold plated
• HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
• Active Technology: Directional, In-shell Optical Light Engine
• HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief

WARRANTY

The Kordz PRS4 Active Optical HDMI Cable is backed by our 2 Year Product Guarantee
