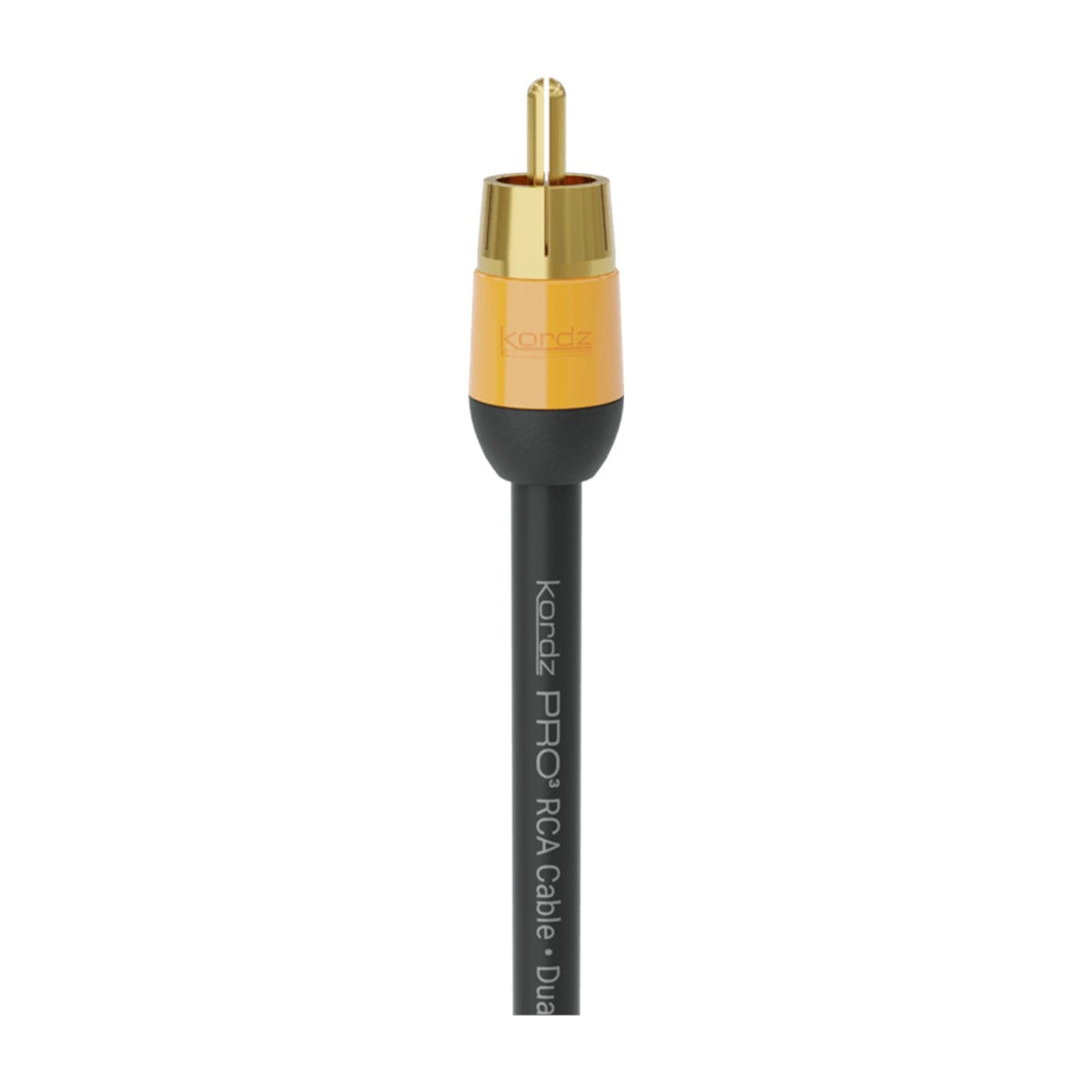

Kordz PRO3 Single RCA Cable 0.5 m Black

Kordz PRO3 Series RCA Cables are highly flexible, solid, and engineered for versatility in professional AV installations. They are designed for easy installation with shallow mounting depth and a secure connector. The double-shielded matte black CMG fire-rated jacket and stranded oxygen free copper conductors minimise signal loss and mitigates interference. The connector bodies are fully coloured to make channel identification easier when working in confined spaces. Single cables are optimised for S/PDIF digital audio featuring 75Ω cables and are available in lengths from 0.5m to 15m, making them idea for digital audio interconnects or for hooking up subwoofers. The twin cable variants are optimised for analogue audio use with 55Ω cable construction and are available in lengths from 0.5m to 5m. Kordz PRO3 Series RCA Cables make installations easier whilst ensuring reliable connectivity.

PRODUCT OUTLINE

• Professional grade cable
• Shallow mounting depth connectors
• Digital Audio Optimised 75Ω coaxial cable (PRO3-1RCA)
• Analogue Audio Optimised 55Ω coaxial cable (PRO3-2RCA)
• Stranded oxygen-free copper conductor
• Dual shielded cable with foil and braid
• Flexible and durable matte black PVC jacket
• Easy identification with full coloured connector bodies
• UL444 CMG fire-rated
• Kordz Lifetime Warranty

TECHNICAL INFO

MECHANICAL

• Single RCA Cable
• Cable Diameter: 6.0mm | 0.19in Ø
• Cable Bend Radius: 48~64mm
• Twin RCA Cable
• Cable Diameter: 4.8mm | 0.31in Ø
• Cable Bend Radius: 36~48mm

CONSTRUCTION

• Single RCA Cable
• Primary Conductors: Stranded 24 AWG OFC (99.99% Oxygen free copper)
• Insulation Material: Polyethylene / Polyethylene, length dependent
• Shielding: AL/Mylar, 125% Coverage + bare copper braid, 70% coverage
• Cable Jacket Material: UL CMG fire-rated PVC composite materials
• RCA Connector Pin: RCA connector, gold-plated brass
• RCA Back-shell: PVC front shell with PVC injection moulded boot and strain relief
• Twin RCA Cable
• Primary Conductors: Stranded 24 AWG OFC (99.99% Oxygen free copper)
• Insulation Material: Polyethylene / Polyethylene, length dependent
• Shielding: AL/Mylar, 125% Coverage + bare copper braid, 70% coverage
• Cable Jacket Material: UL CMG fire-rated PVC composite materials
• RCA Connector Pin: RCA connector, gold-plated brass
• RCA Back-shell: PVC front shell with PVC injection moulded boot and strain relief

WARRANTY

Kordz Lifetime Warranty
