Meridian Ellipse Streaming Speaker

The Meridian Ellipse is Meridian's first high-performance all-in-one streaming speaker and the third product from its Extreme Engineering Programme. It is a complete Meridian system in a compact cabinet, made in Britain, delivering natural, lifelike and room-filling sound with bass you would normally expect only from much larger loudspeakers. Ellipse won the EISA Best Product award 2024–2025.

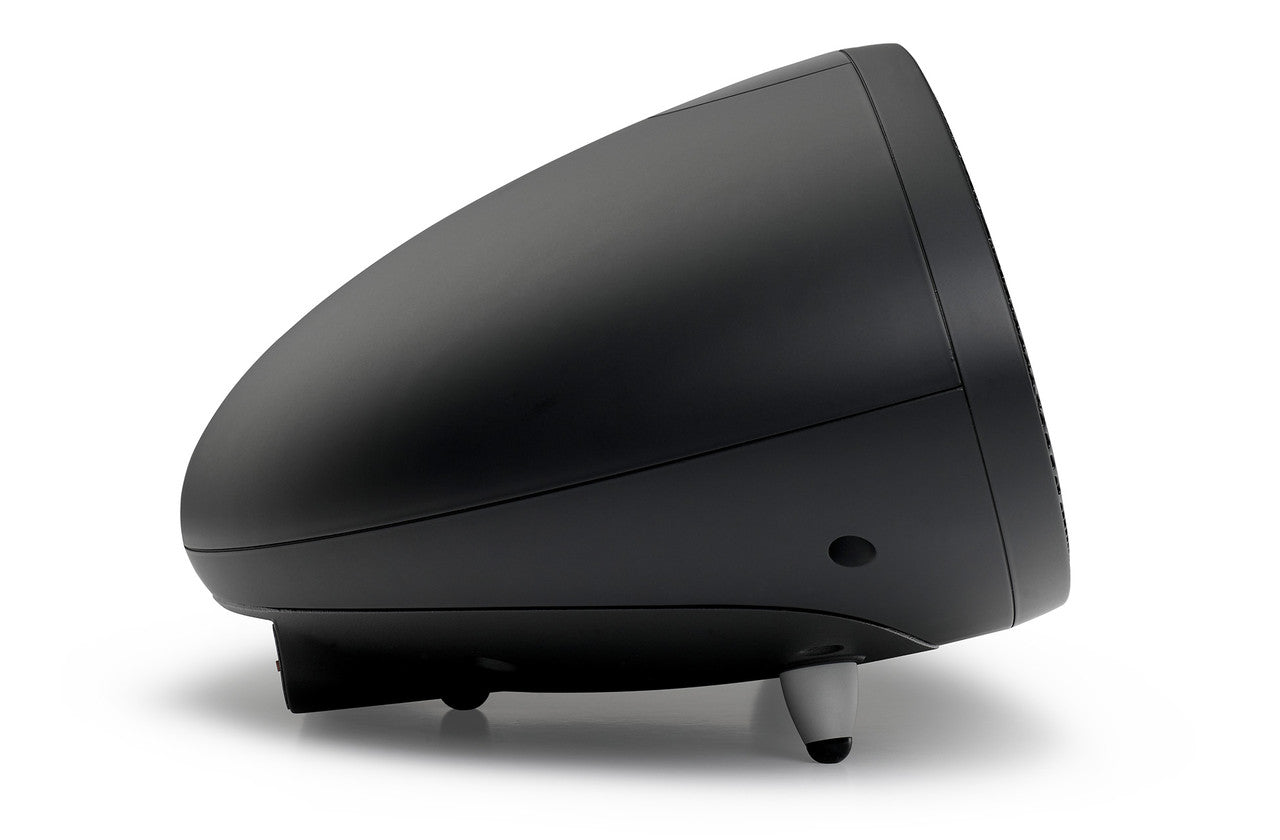

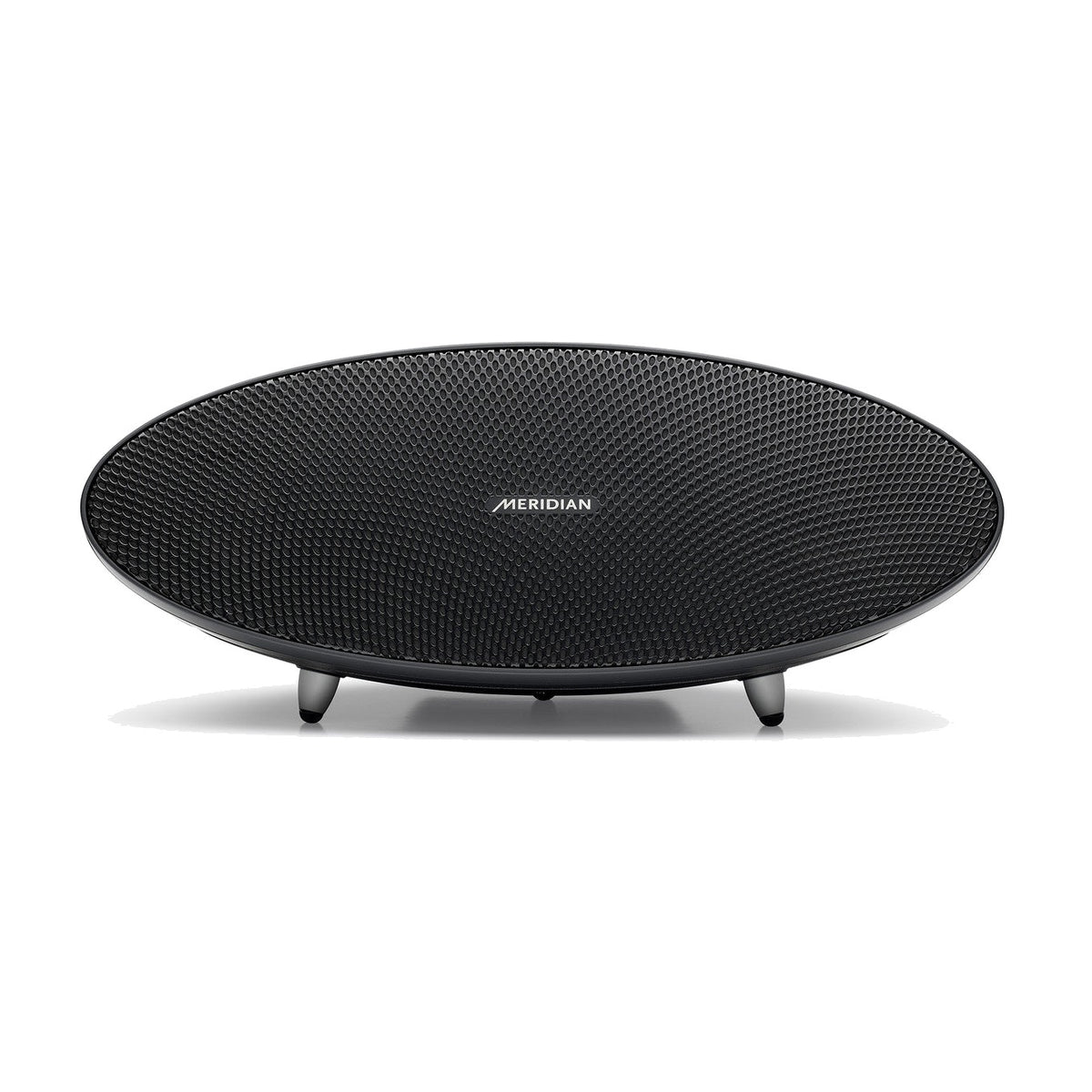

Technology from the flagship DSP8000 XE and DSP9 is condensed into an exceptionally inert, sealed enclosure with three active drivers and twelve Meridian DSP technologies. Image Elevation and Bass & Space let you tune the sound to the room, placement and your taste. The elliptical design with a smooth, non-reflective deep black finish fits elegantly into any modern interior, and illuminated touch controls on top keep everyday use simple.

Key Features

• Streaming via Wi-Fi, Ethernet and Bluetooth
• Apple AirPlay, Google Cast, Spotify Connect and TIDAL Connect; Roon Ready and UPnP renderer
• USB-C, optical and analogue inputs for other sources
• Three active drivers with 80 W of amplification in total
• Twelve Meridian DSP technologies including Bass & Space and Image Elevation

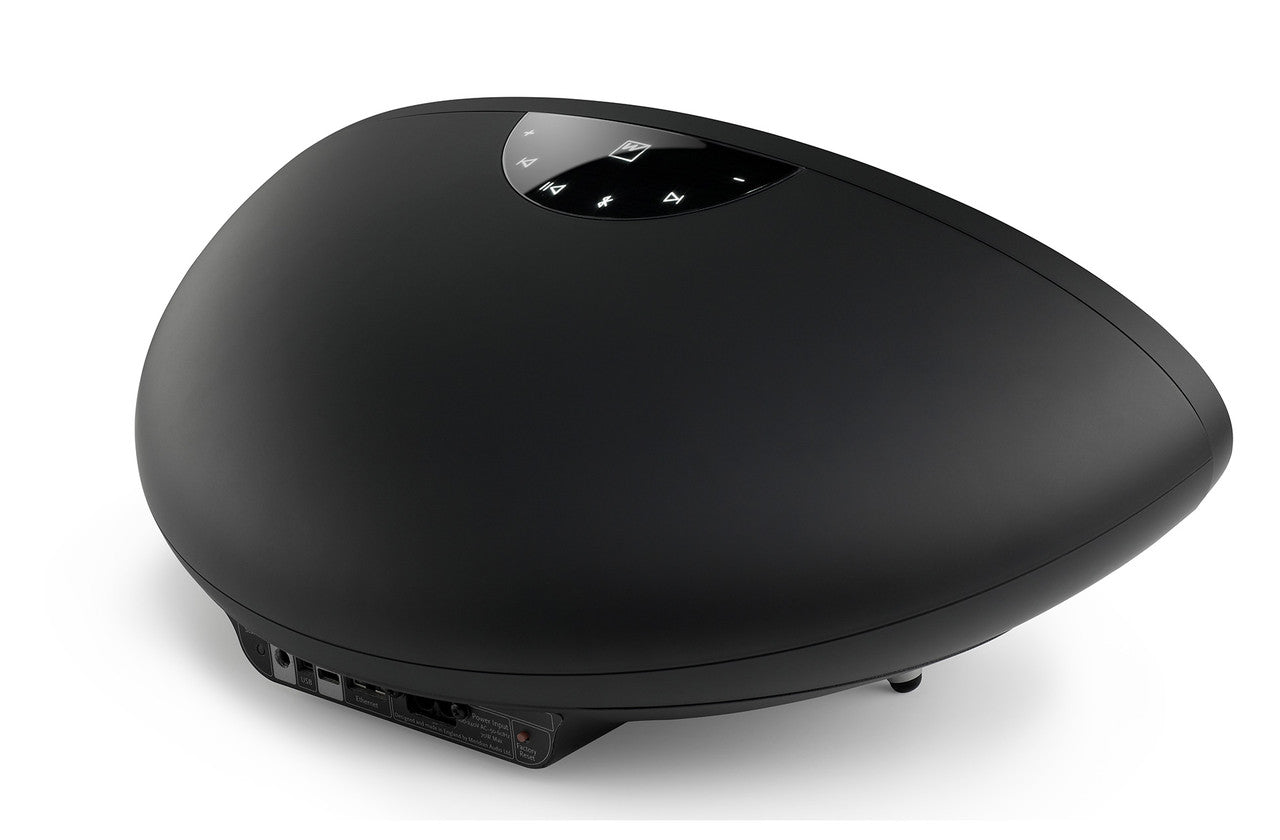

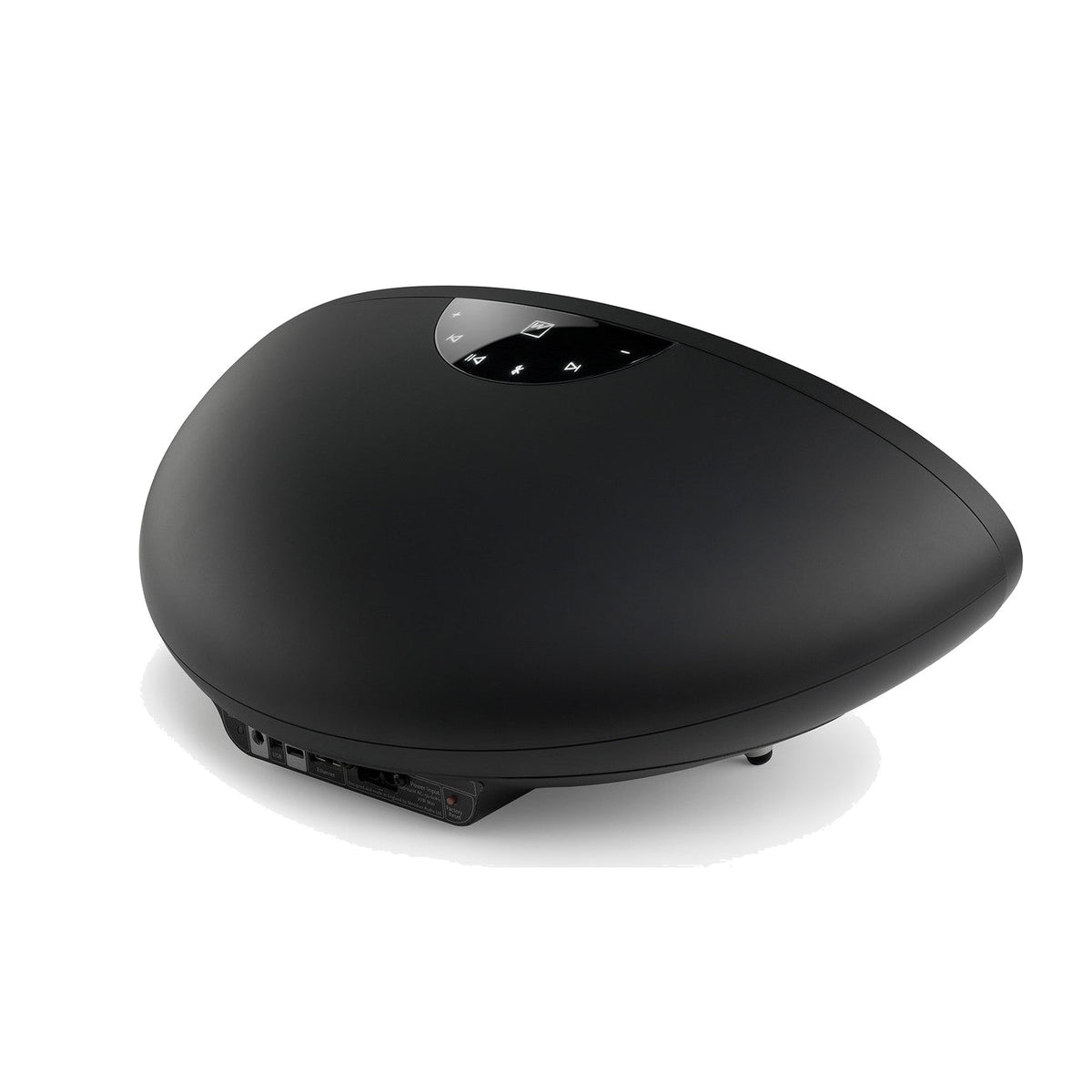

• Illuminated touch controls, Meridian Control app and IR remote support

Specifications

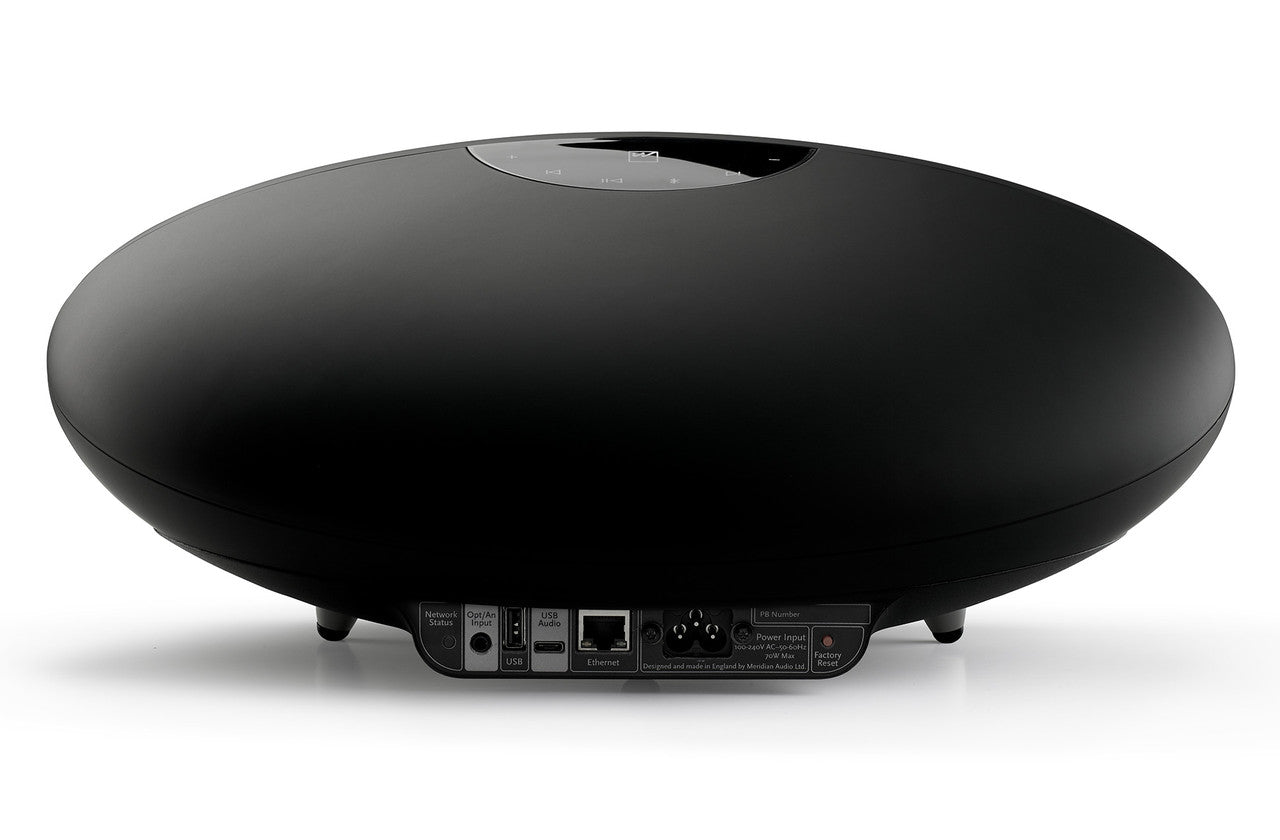

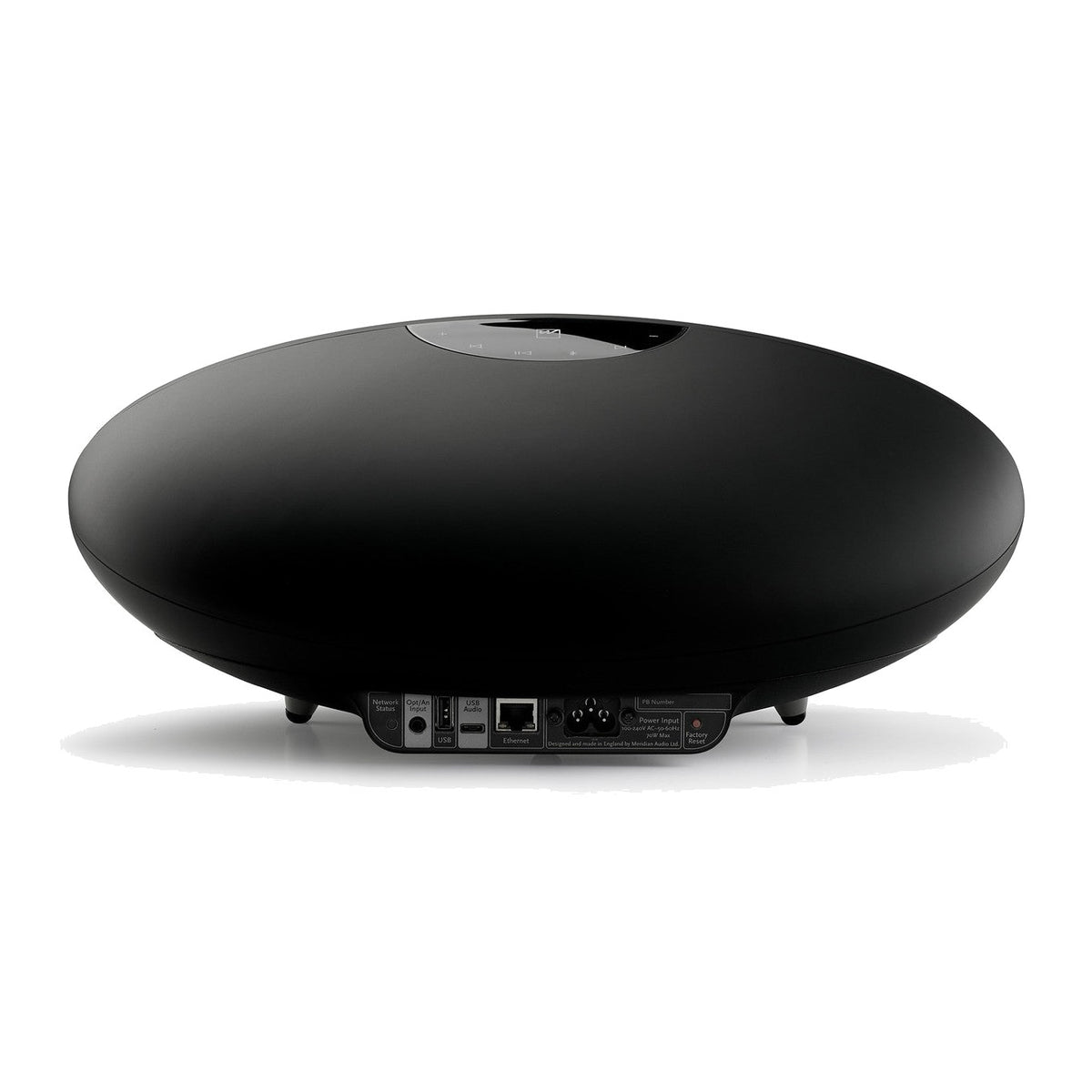

• Inputs: USB-C (up to 192 kHz / 24-bit), mini-Toslink optical (up to 96 kHz / 24-bit), analogue 3.5 mm (shared with optical, 88 kHz / 24-bit A/D)
• Network: dual-band Wi-Fi 2.4 / 5 GHz, Ethernet, Bluetooth
• Amplification: 2 x 25 W for the full-range drivers, 1 x 30 W for the subwoofer
• Drivers: 2 x 90 mm polypropylene wide-range, 1 x 150 x 100 mm long-throw racetrack subwoofer; crossover at 180 Hz
• Performance: SPL 100 dB at 1 m; in-room response 40 Hz – 20 kHz (±3 dB)
• Control: touch panel, Meridian Control app, IR receiver (MSR2 remote available separately), automation interface
• Power: 100–240 V AC, max. 70 W
• Dimensions (W x H x D): 412 x 171 x 223 mm
• Weight: 3.9 kg
