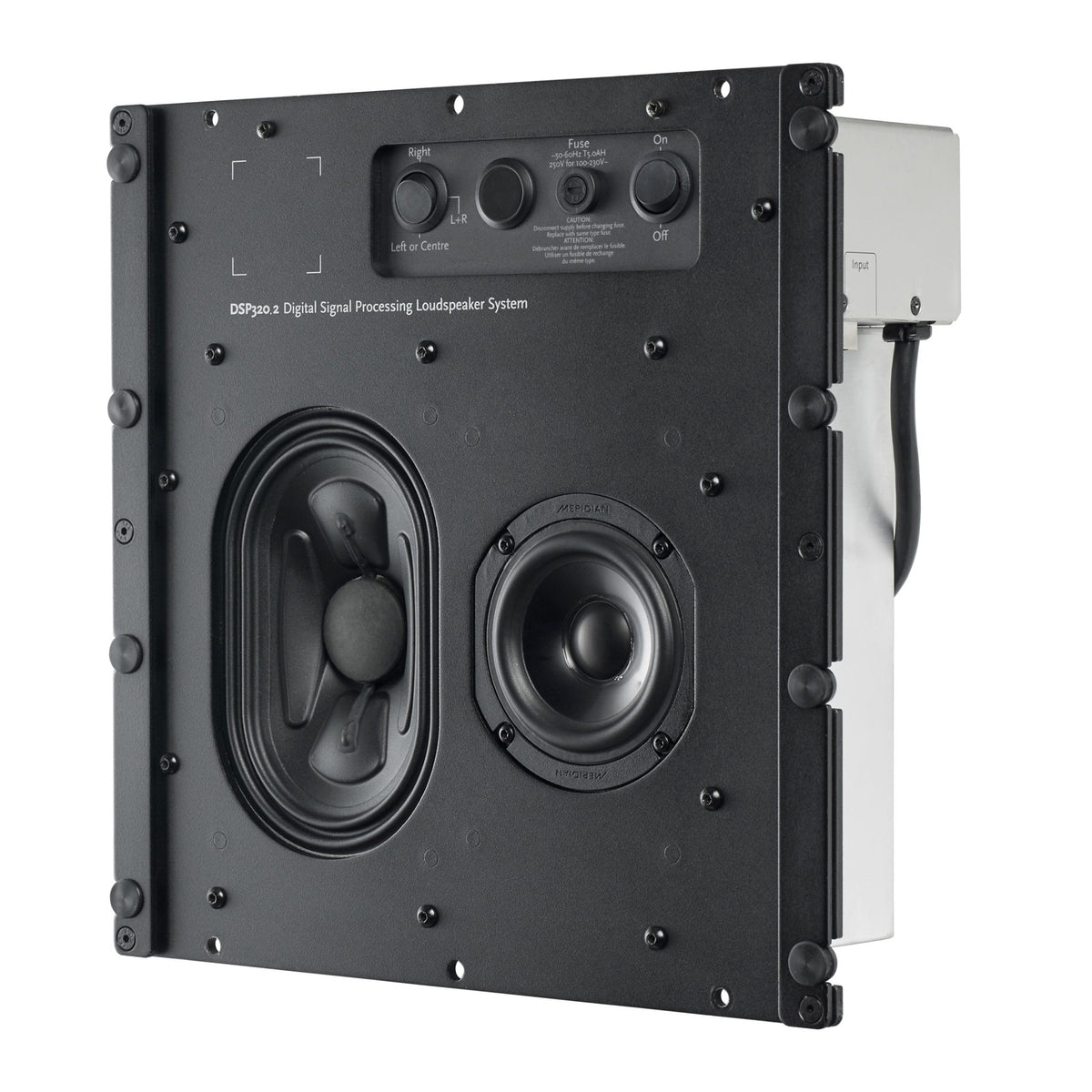

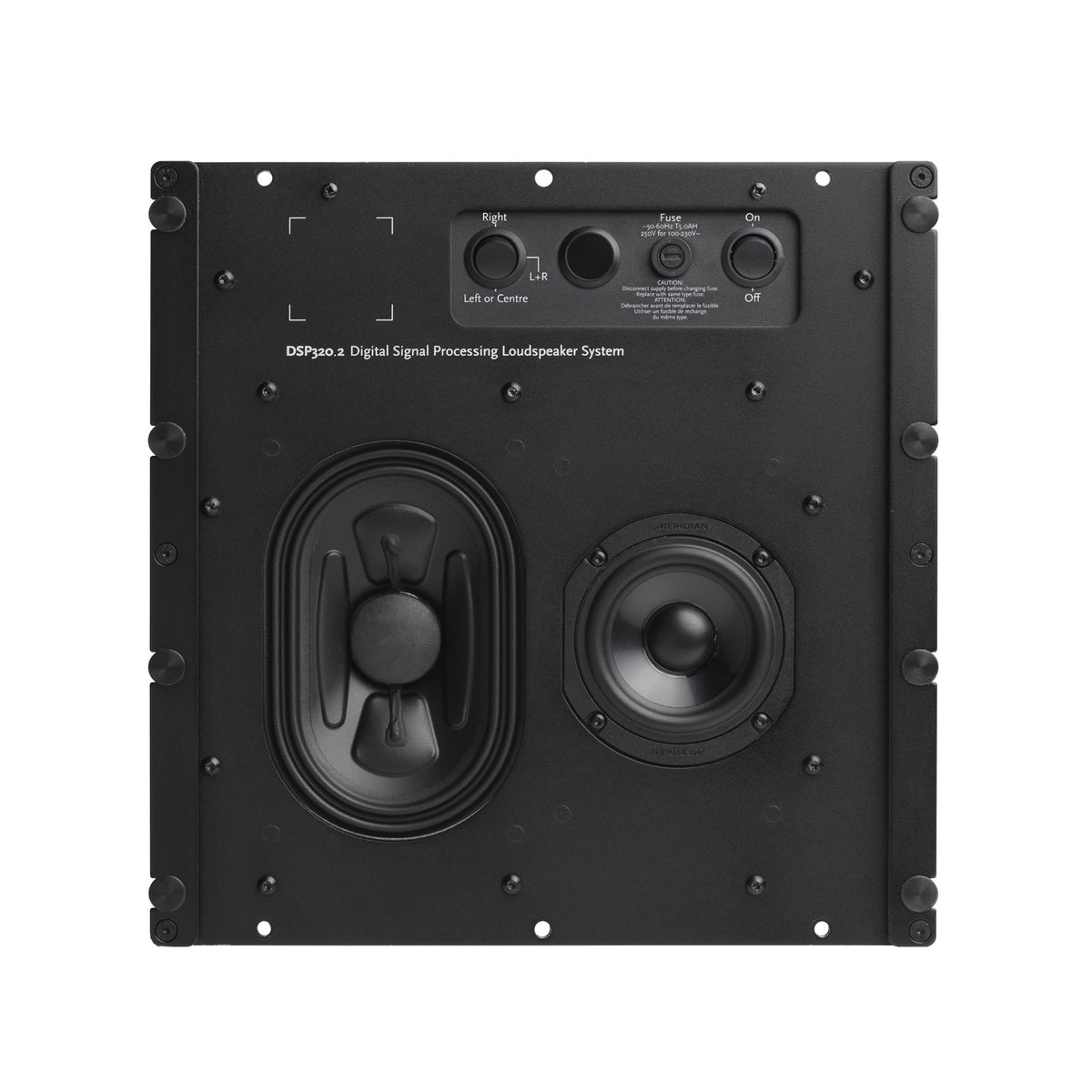

Meridian DSP320.2 Ceiling/In-Wall Loudspeaker

The Meridian DSP320.2 is a compact digital active loudspeaker for mounting in a wall or ceiling. Its slim, square profile hides a lot of power, accuracy and bass for a speaker this size, and wide dispersion makes it a great fit for living spaces, home theatres, marine and commercial installations.

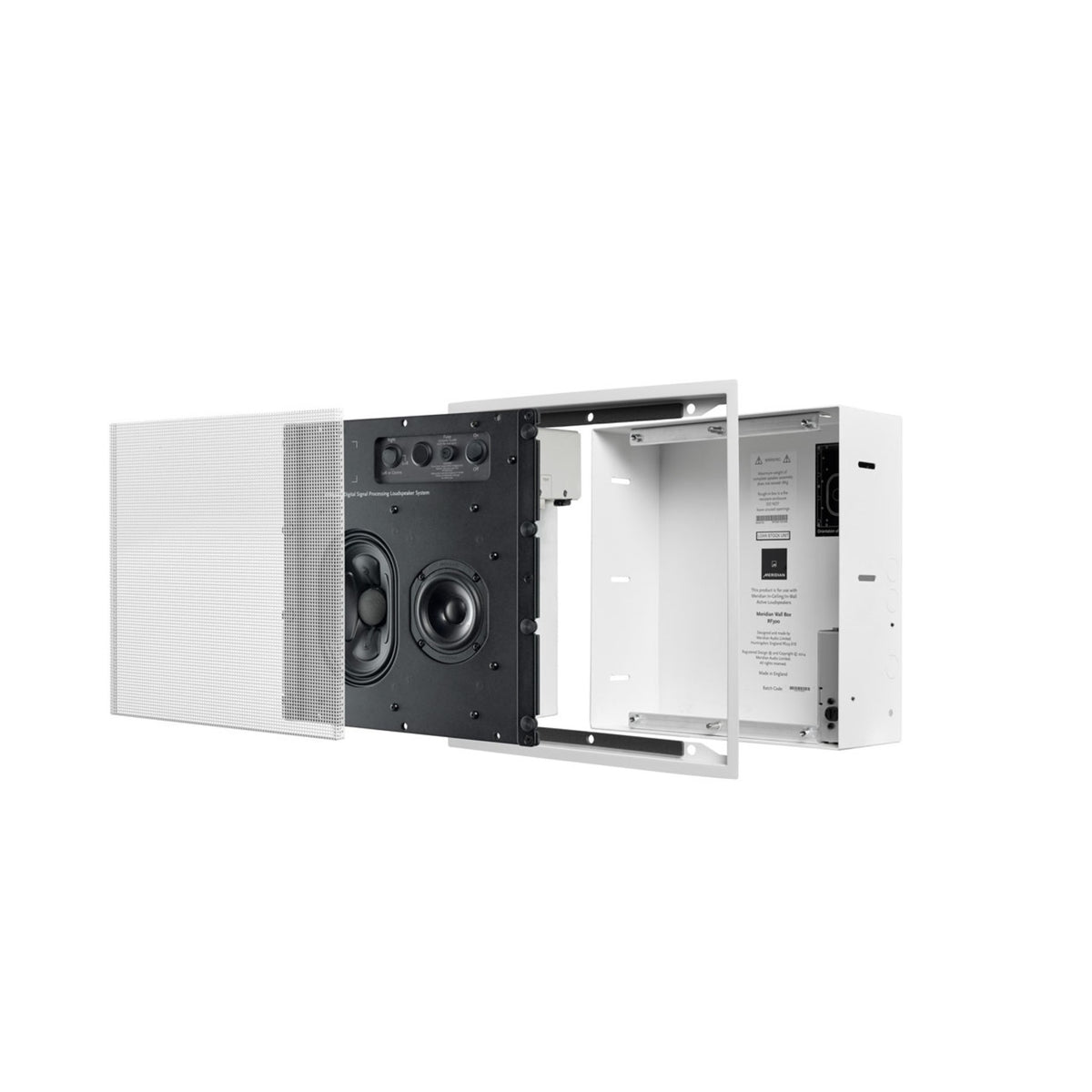

Two built-in 80 W amplifiers – one for each driver – and Meridian DSP make the DSP320.2 a true full-range loudspeaker with bass extension down to 50 Hz and a peak level of 106 dB at 1 m. The ultra-shallow 100 mm design together with the rough-in box and frame system makes installation easy and positioning precise, and the grille can be painted to match the room. It pairs naturally with the DSP520.2 and DSP640.2 and also offers an L + R mode.

Key Features

• Full DSP loudspeaker performance in a mounting depth of only 100 mm
• One 80 W Class D amplifier for each driver
• Bass down to 50 Hz, peak SPL 106 dB at 1 m
• Left / centre / right channel selection and L + R mode
• Paintable grille for discreet integration
• Meridian technologies: Bespoke Signal Mapping, E3 Bass, Image Elevation, FFA (Full Frequency Alignment), Pro-Active Bass, Pro-Active Thermal, True Time, True Link and Q-Sync

Specifications

• Input / output: Meridian SpeakerLink (RJ45), 32–96 kHz, up to 24-bit
• Drivers: 1 x racetrack oval bass driver, 1 x 85 mm wide-range driver
• Amplification: 1 x 80 W Class D per driver
• Peak SPL: 106 dB at 1 m
• Controls: on/off rocker switch, fuse holder, IR window, L-C-R selector, power LED
• Dimensions incl. rough-in frame (W x H x D): 299.5 x 299.5 x 103 mm
• Grille: 292 x 292 x 4 mm; trim frame: 316 x 316 x 15 mm
• Weight: 5 kg
• Power: IEC mains connector in the back-box

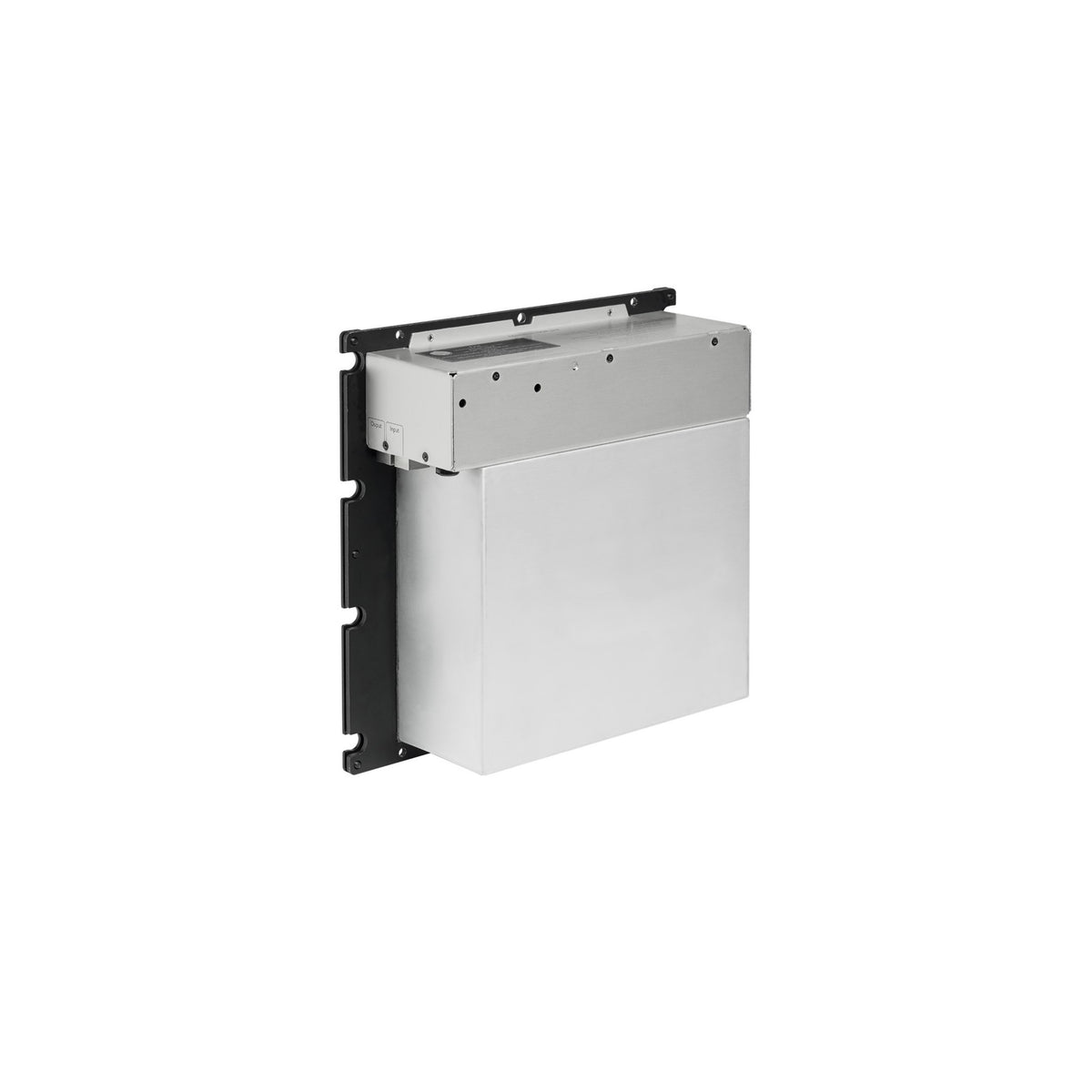

• Rough-in box: Meridian RF 300 (sold separately)
