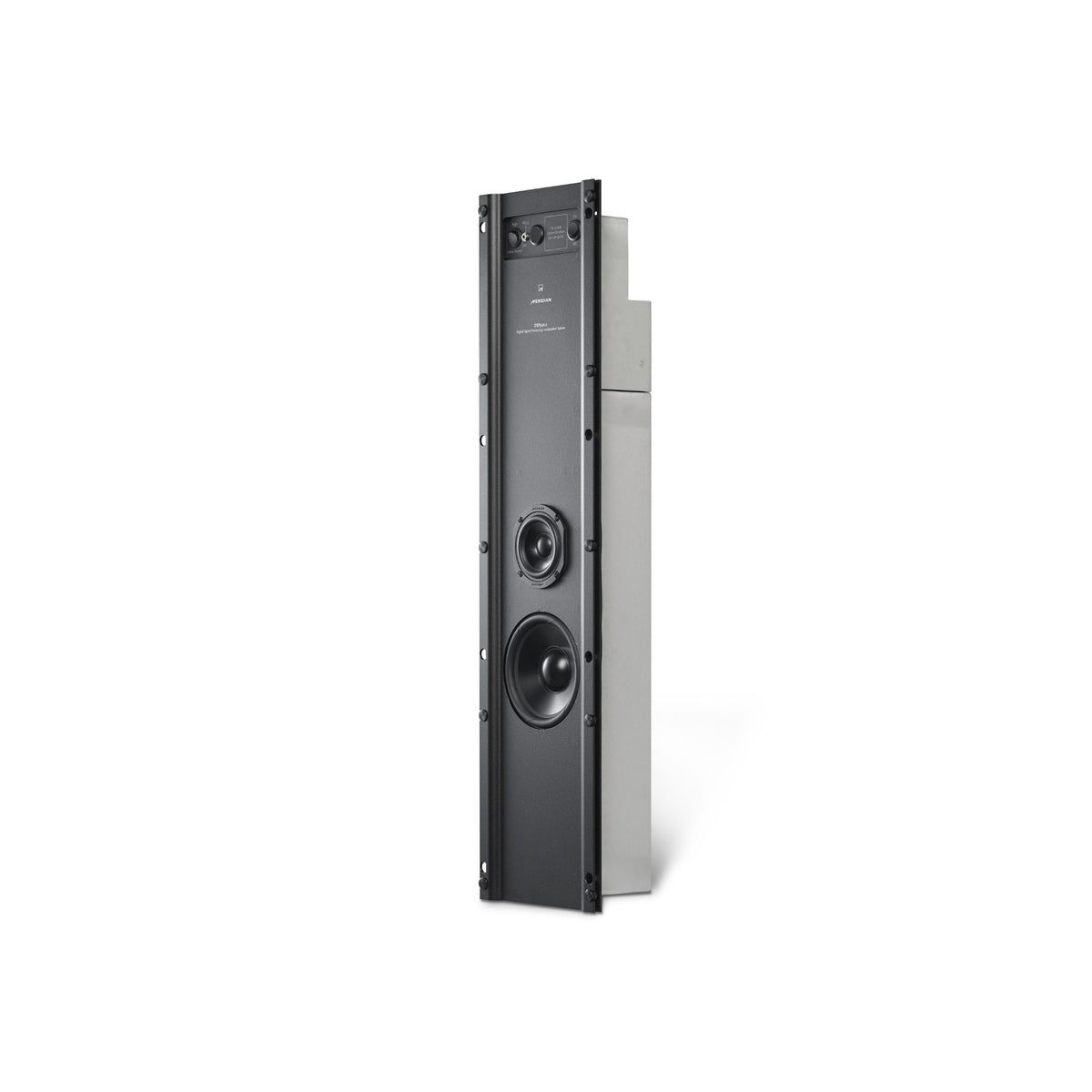

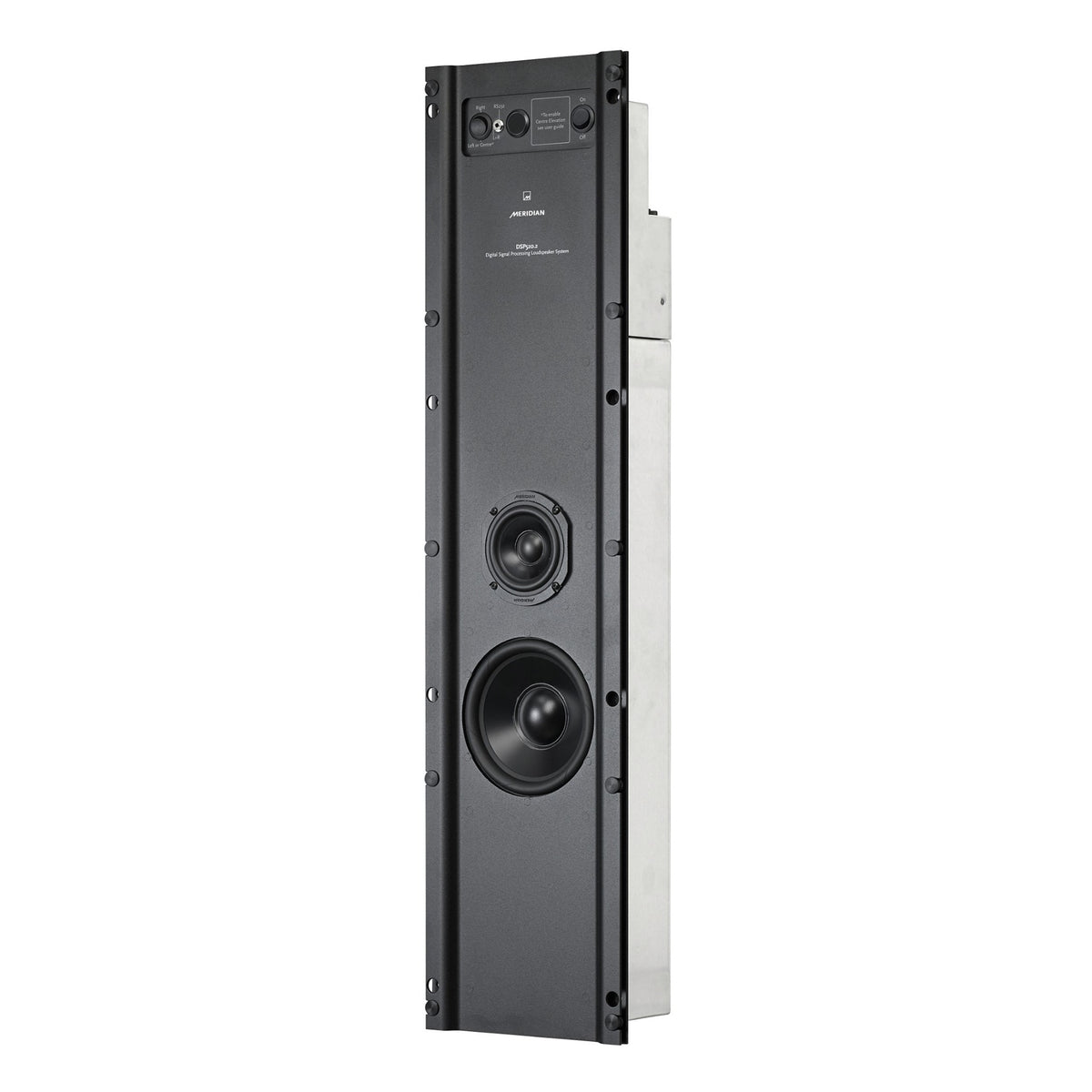

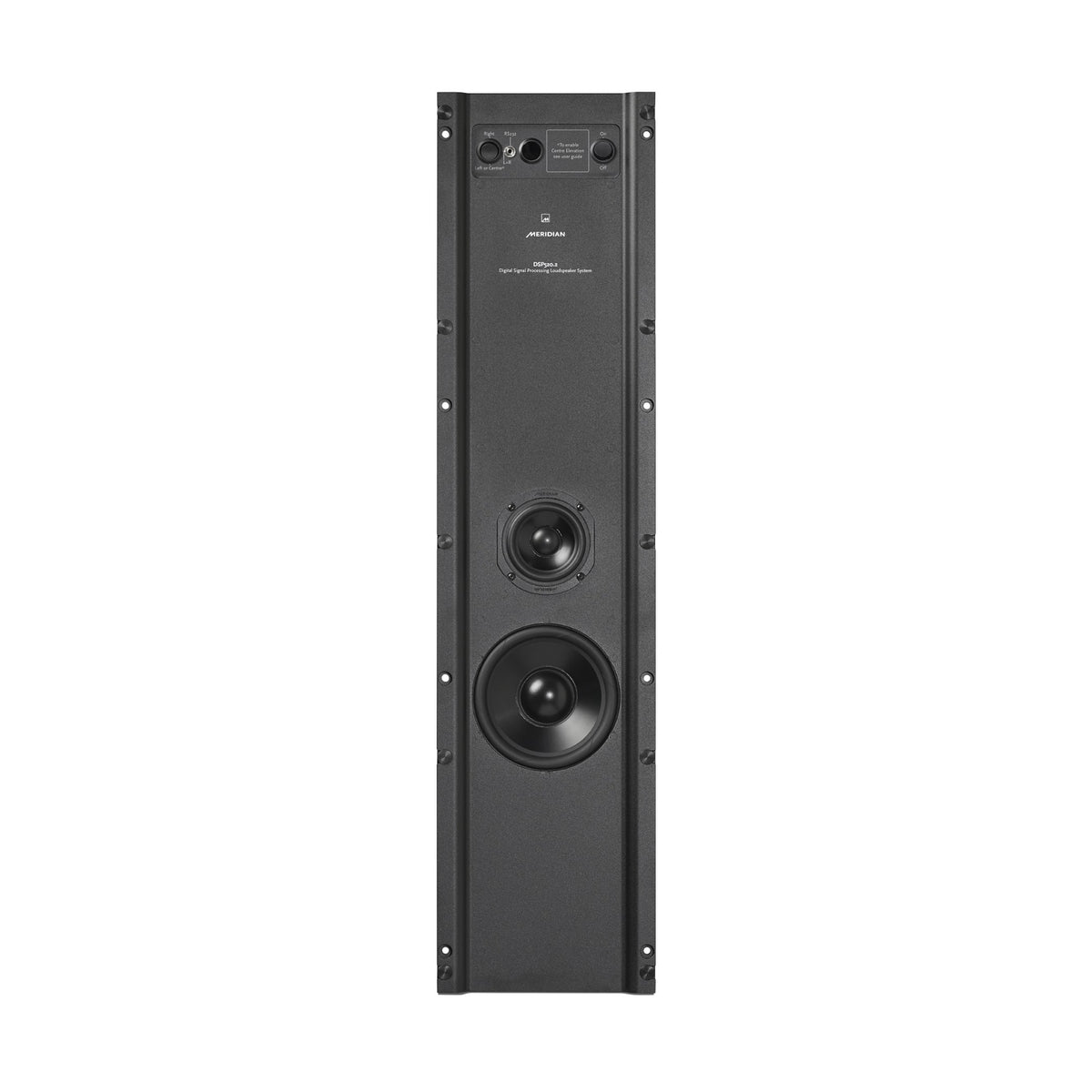

Meridian DSP520.2 In-Wall Loudspeaker

The Meridian DSP520.2 brings Meridian's renowned sound discreetly into any living room or cinema. It runs on Meridian's exclusive CLASS-M DSP engine with integrated DYNAMIC Hi-Res amplifiers, and its L + R mode lets a single unit serve as a powerful soundbar solution.

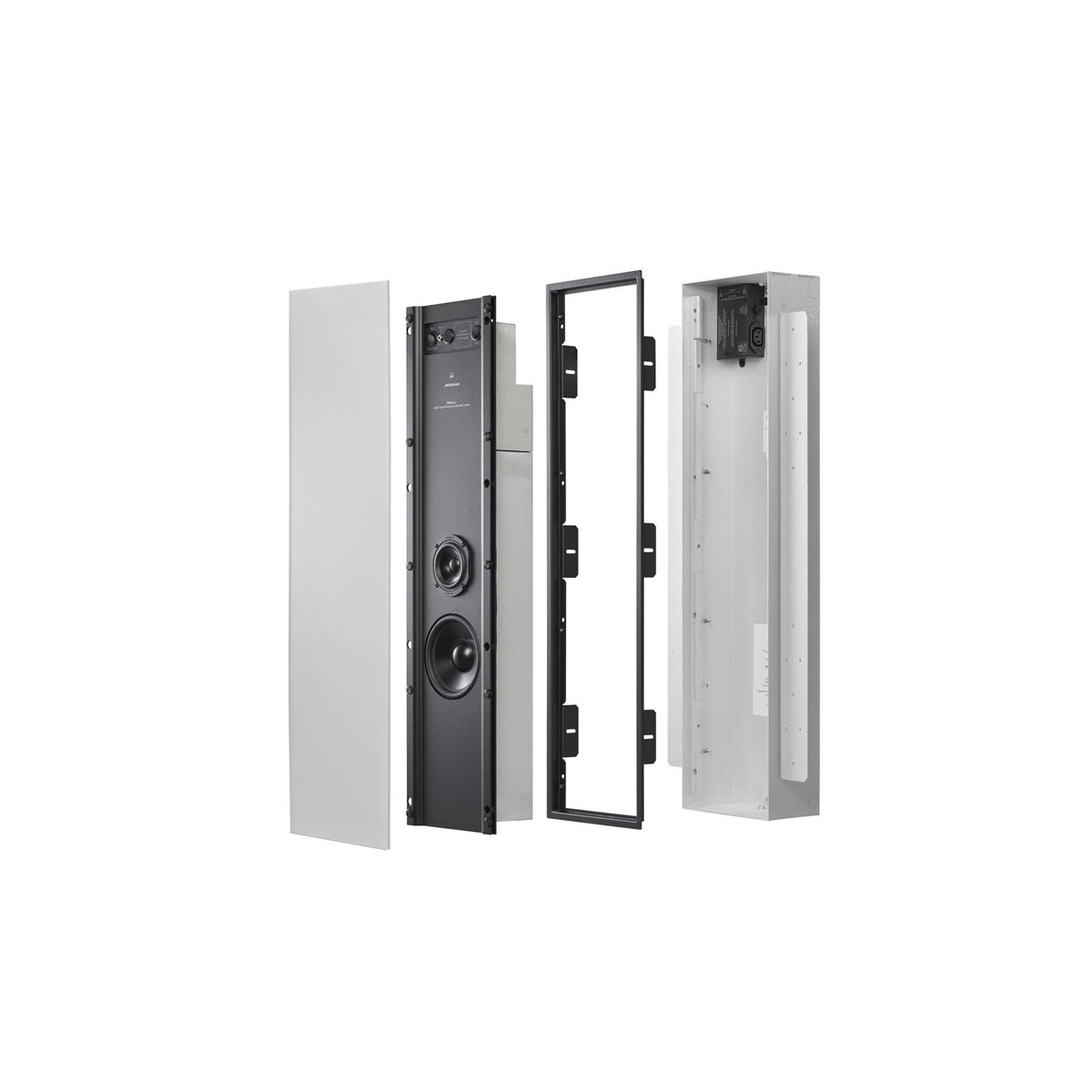

The latest Meridian enhancements, including Enhanced Bass Alignment (EBA) and Centre Elevation, give a strikingly lifelike and spacious sound. The ultra-shallow 100 mm design installs easily with the rough-in box and frame system, and the paintable grille blends into any décor.

Key Features

• CLASS-M DSP engine with DYNAMIC Hi-Res amplification
• Each driver powered by two bridged Class D amplifiers (100 W into 8 ohms)
• Bass down to 40 Hz, peak SPL 114 dB at 1 m
• Right / L + R / Left-or-Centre selector – can also work as a soundbar
• Only 100 mm mounting depth, paintable grille
• Meridian technologies: Bespoke Signal Mapping, E3 Bass, Image Elevation, FFA, Pro-Active Bass, Pro-Active Thermal, True Time, True Link and HPA (High Power Array)

Specifications

• Input / output: Meridian SpeakerLink (RJ45), 32–96 kHz, up to 24-bit
• Drivers: 1 x 140 mm long-throw bass driver, 1 x 85 mm wide-range driver with neodymium magnet
• Amplification: 2 x Class D bridged for 100 W into 8 ohms per driver
• Peak SPL: 114 dB at 1 m; bass extension: 40 Hz
• Controls: on/off rocker switch, IR window, RS232 (3.5 mm), channel selector, status LEDs
• Dimensions (W x H x D): 203 x 800 x 102 mm (without frame and cable channel)
• Grille: 222.5 x 820 x 4 mm
• Weight: 10 kg
• Power: IEC mains connector in the back-box
• Rough-in box: Meridian RF 500 (sold separately)
