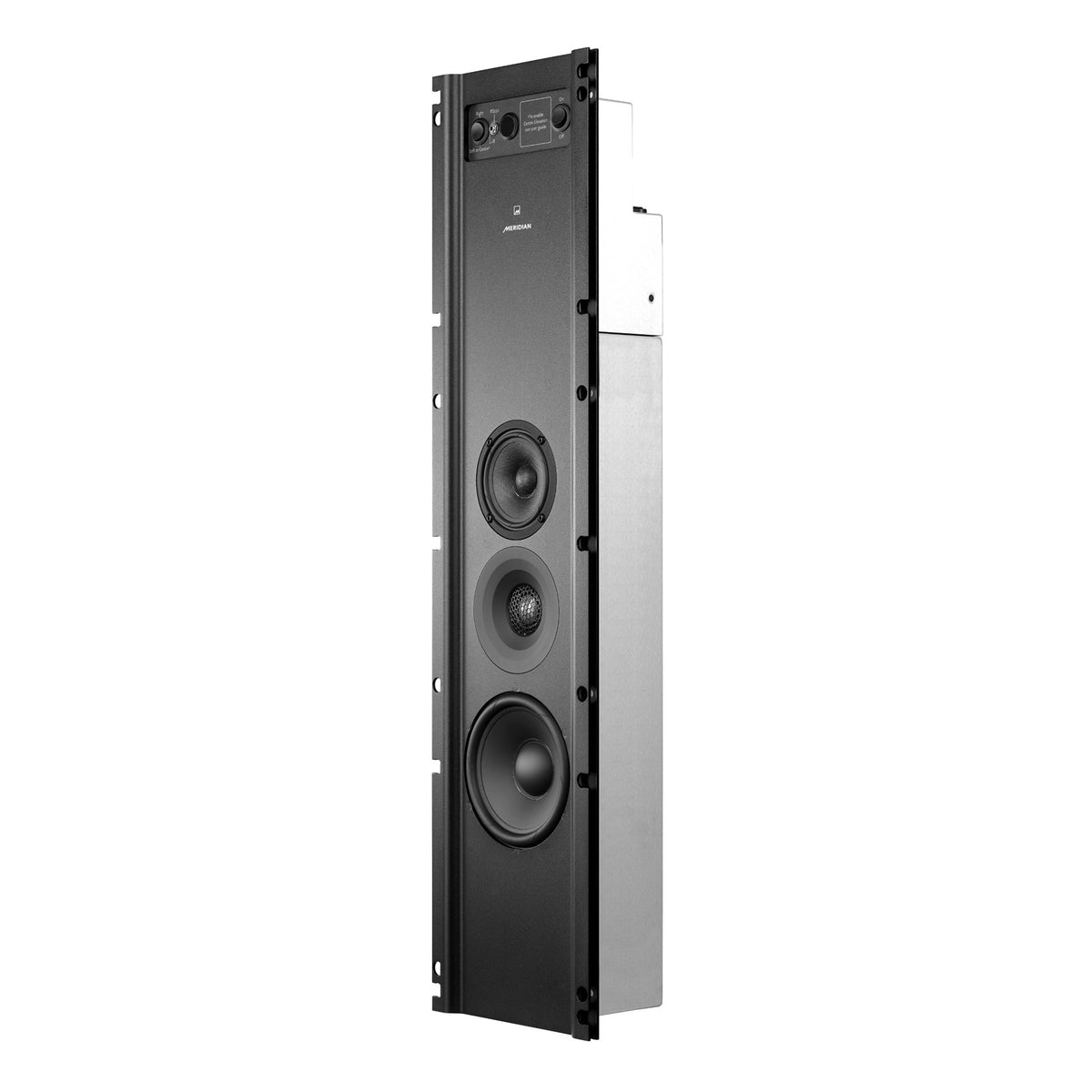

Meridian DSP730 In-Wall Loudspeaker

The Meridian DSP730 is a high-resolution architectural loudspeaker from Meridian's Architectural Reference range. It packs remarkable performance into a compact in-wall design and suits small and medium-sized rooms where sound quality comes first.

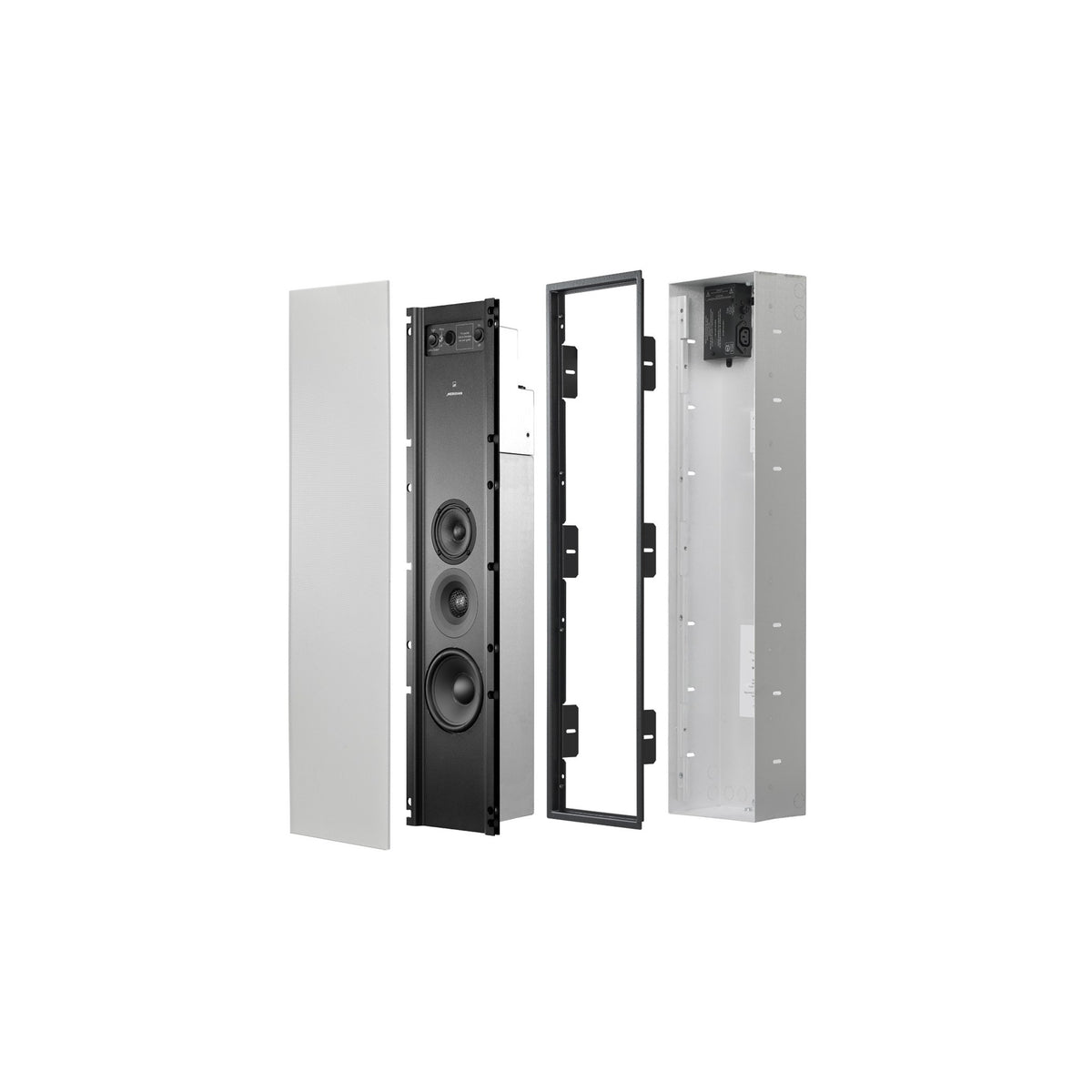

The DSP730 reaches 115 dB at 1 m with bass extension down to 38 Hz and plays above 40 kHz. Excellent off-axis behaviour creates an even, lifelike stereo image across a wide listening area. Like all Meridian architectural models it is only 100 mm deep, installs with a rough-in box and frame system and has a grille that can be painted to match the room.

Key Features

• Three-way design with each driver powered by its own bridged pair of Class D amplifiers (more than 100 W into 8 ohms)
• Frequency response 38 Hz – 40 kHz
• Peak SPL 115 dB at 1 m; three DSP730s in HPA reach 122 dB
• Wide, uniform dispersion for a consistent image across the room
• Only 100 mm mounting depth, paintable grille
• Meridian technologies: Bespoke Signal Mapping, E3 Bass, Image Elevation, FFA, Pro-Active Bass, Pro-Active Thermal, True Time, True Link and HPA

Specifications

• Input / output: Meridian SpeakerLink (RJ45), 32–96 kHz, up to 24-bit

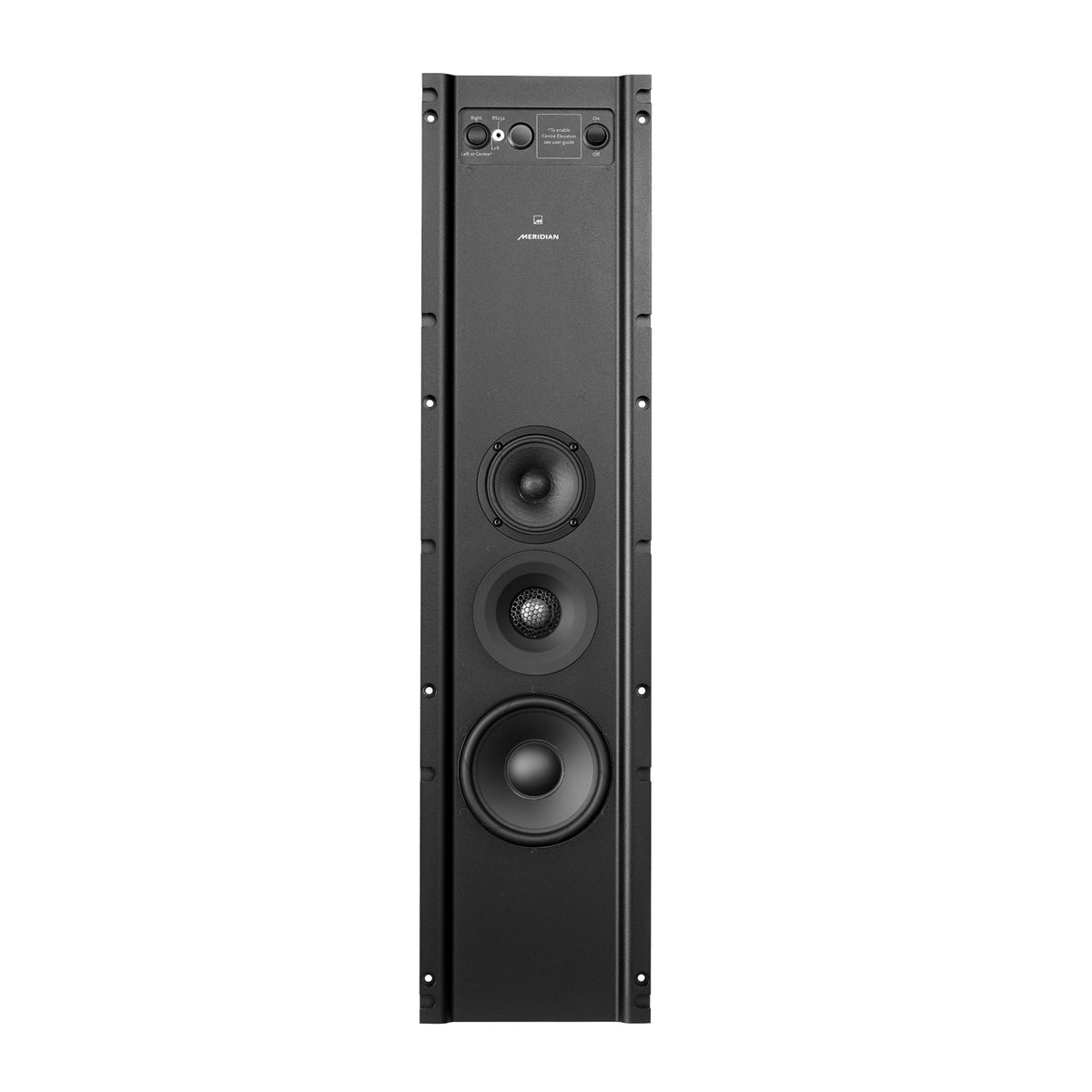

• Bass driver: 160 mm long-throw, high-output, titanium voice coil
• Midrange driver: 100 mm woven polypropylene cone
• Tweeter: aluminium dome with custom steel waveguide
• Amplification: 3 pairs of Class D amplifiers, each pair bridged for more than 100 W into 8 ohms
• Controls: on/off rocker switch, IR window, RS232 (3.5 mm), Right / L + R / Left-or-Centre selector, status LEDs
• Dimensions (W x H x D): 203 x 800 x 102 mm (without frame and cable channel)
• Grille: 222.5 x 820 x 4 mm
• Weight: 11 kg

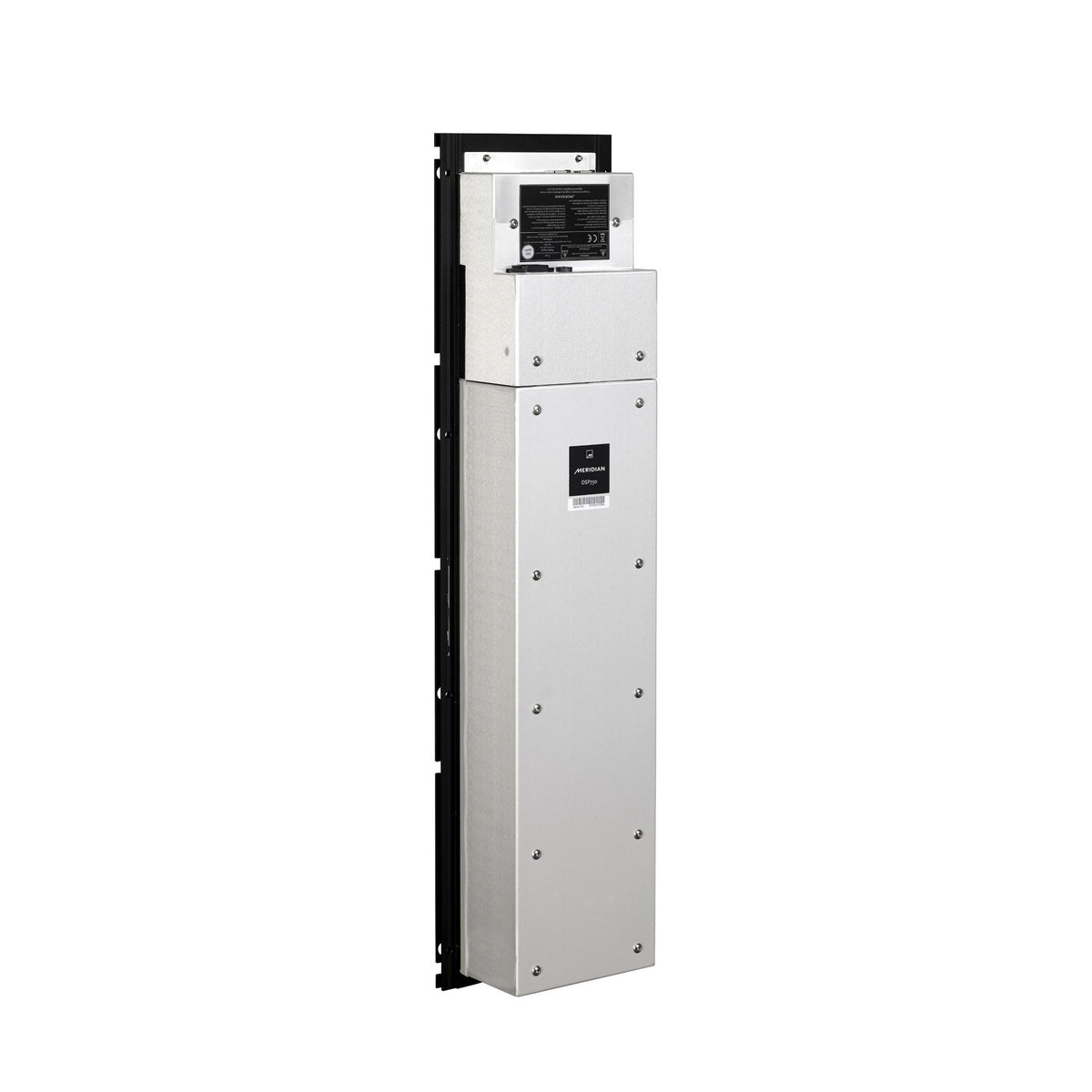

• Power: IEC mains connector in the back-box
