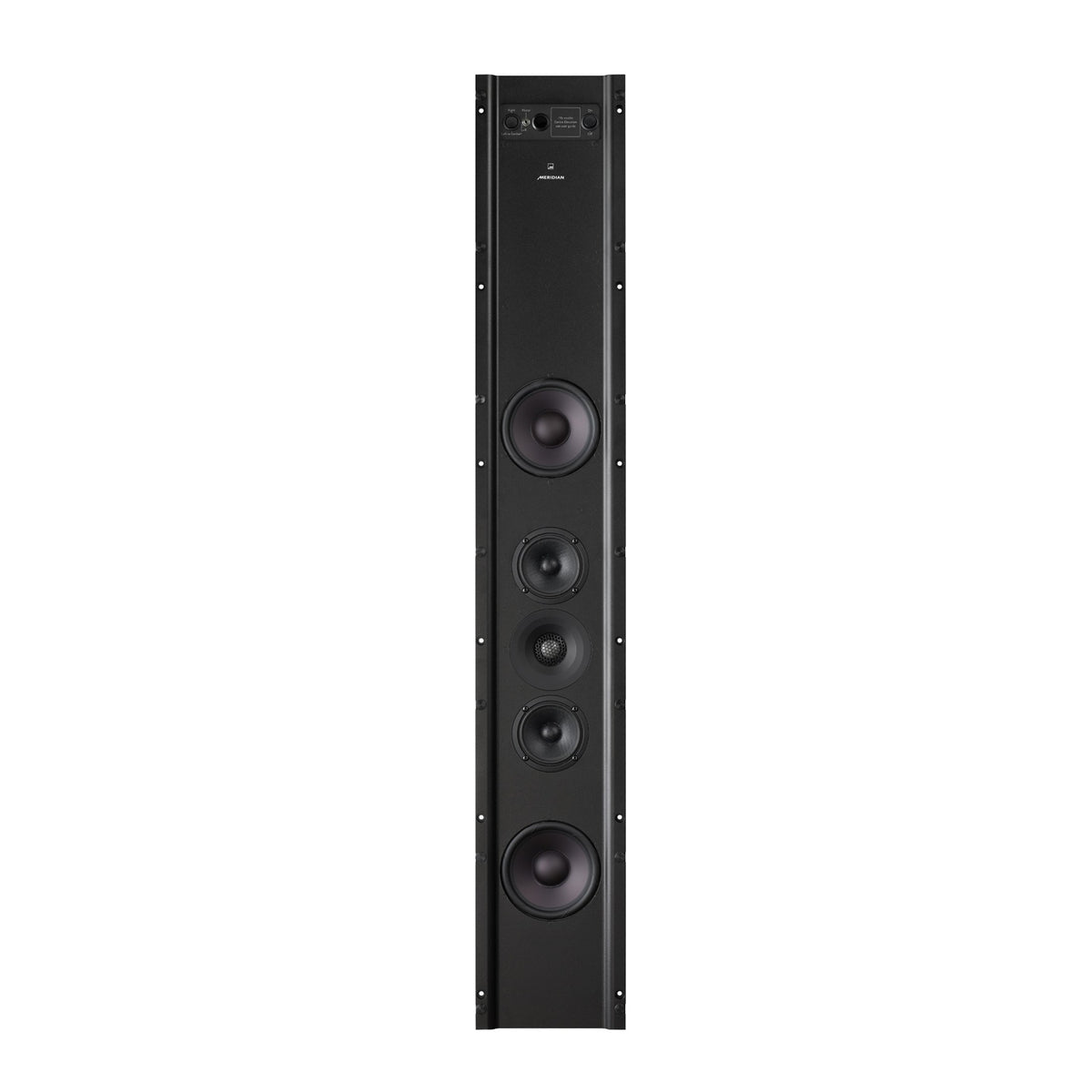

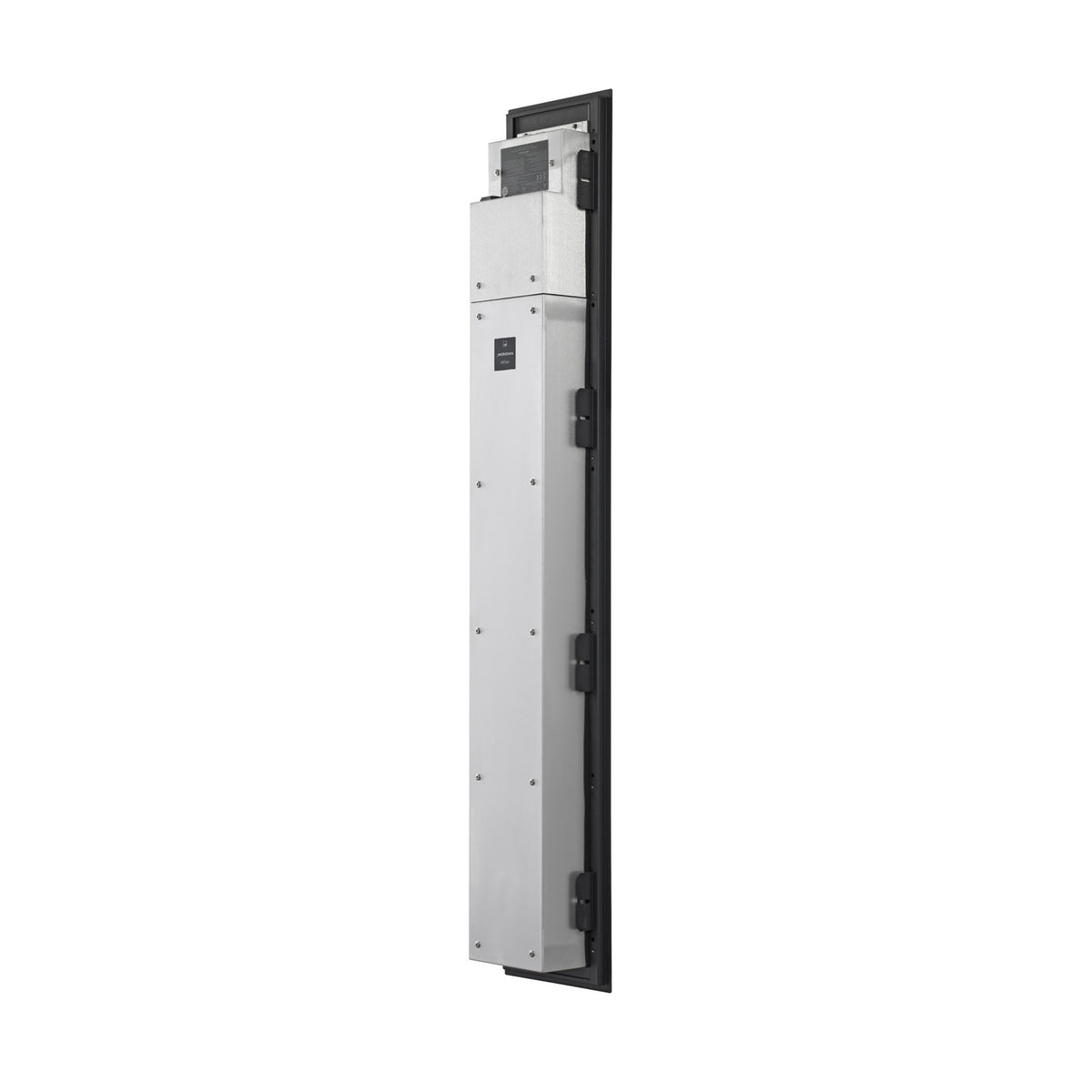

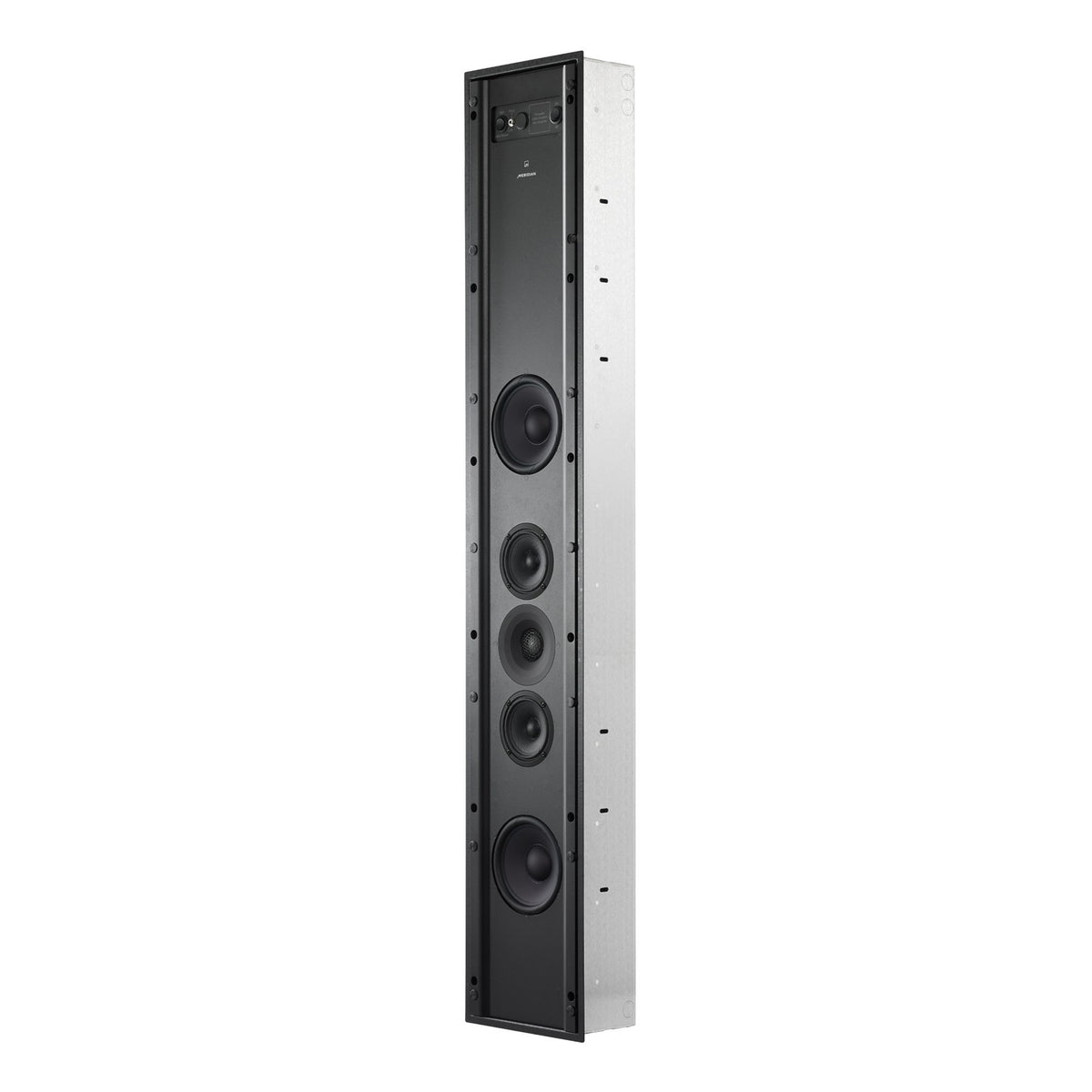

Meridian DSP750 In-Wall Loudspeaker

The Meridian DSP750 is the highest-performing architectural loudspeaker Meridian makes. Built on the company's core principles of acoustic design, it delivers high-resolution audio for architectural installations and dedicated home theatres.

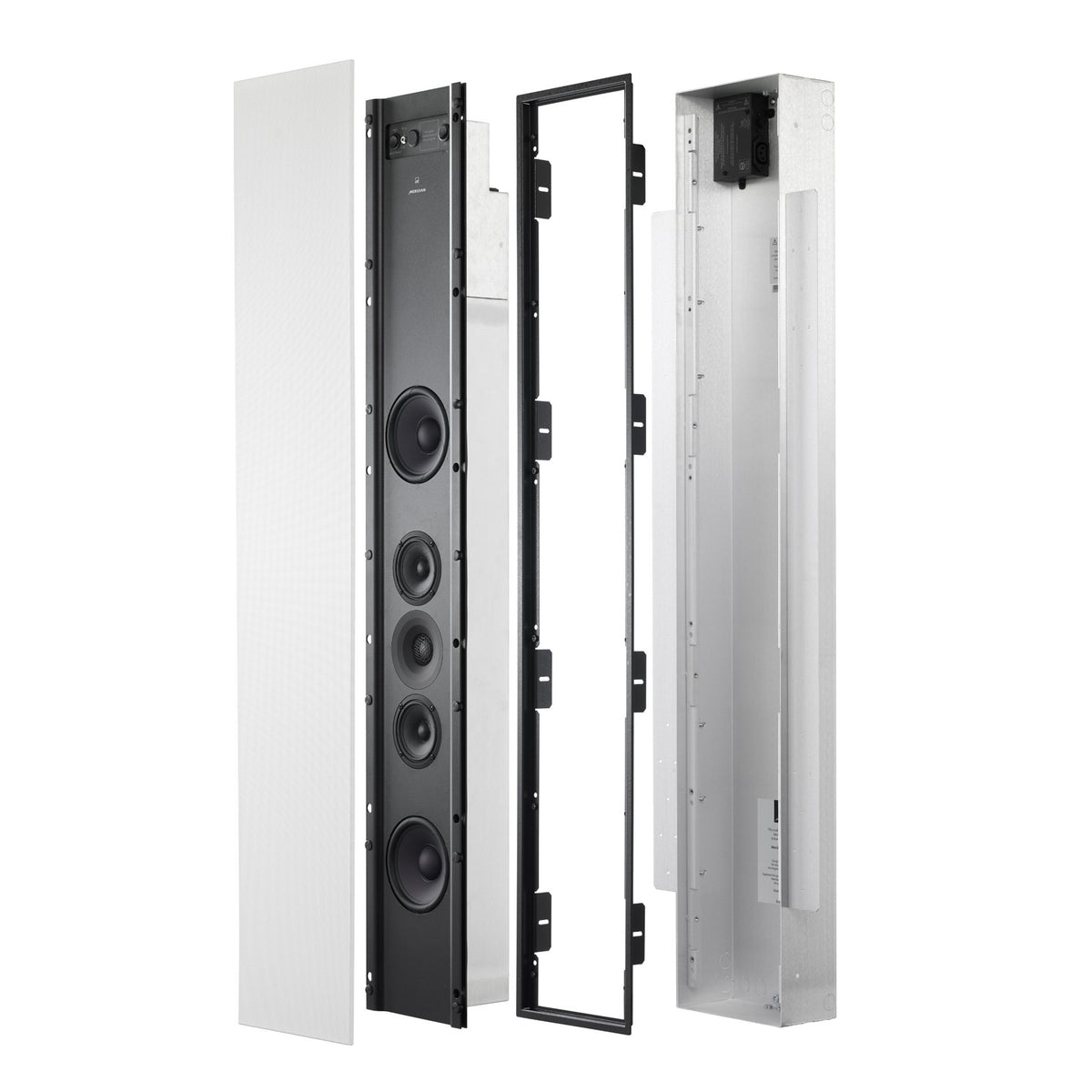

Improved drivers, advanced DSP, refined acoustic engineering and additional Meridian technologies give the DSP750 a level of sound quality normally associated with the very best floorstanding loudspeakers – yet it is only 100 mm deep, installs with a rough-in box and frame system and has a paintable grille.

Key Features

• Five drivers, each powered by its own pair of bridged Class D amplifiers (100 W into 8 ohms)
• Frequency response 30 Hz – 40 kHz
• Peak SPL 120 dB at 1 m; three DSP750s in HPA reach 125 dB at 1 m and 105 dB at 10 m
• Floorstander-class performance from an in-wall loudspeaker
• Only 100 mm mounting depth, paintable grille
• Meridian technologies: Bespoke Signal Mapping, E3 Bass, Image Elevation, FFA, Pro-Active Bass, Pro-Active Thermal, True Time, True Link and HPA

Specifications

• Input / output: Meridian SpeakerLink (RJ45), 32–96 kHz, up to 24-bit
• Bass drivers: 2 x 160 mm long-throw, high-output, titanium voice coils
• Midrange drivers: 2 x 100 mm woven polypropylene cones
• Tweeter: aluminium dome with custom steel waveguide
• Amplification: 2 x Class D bridged for 100 W into 8 ohms for the tweeter and for each mid and bass driver
• Controls: on/off rocker switch, fuse holder, IR window, RS232 (3.5 mm), channel selector, status LEDs
• Dimensions (W x H x D): 203 x 1230 x 102 mm (without frame and cable channel)
• Grille: 222.5 x 1251.3 x 4 mm
• Weight: 16 kg
• Power: IEC mains cable for connection to the rough-in box
• Rough-in box: Meridian RF 600 (sold separately)
