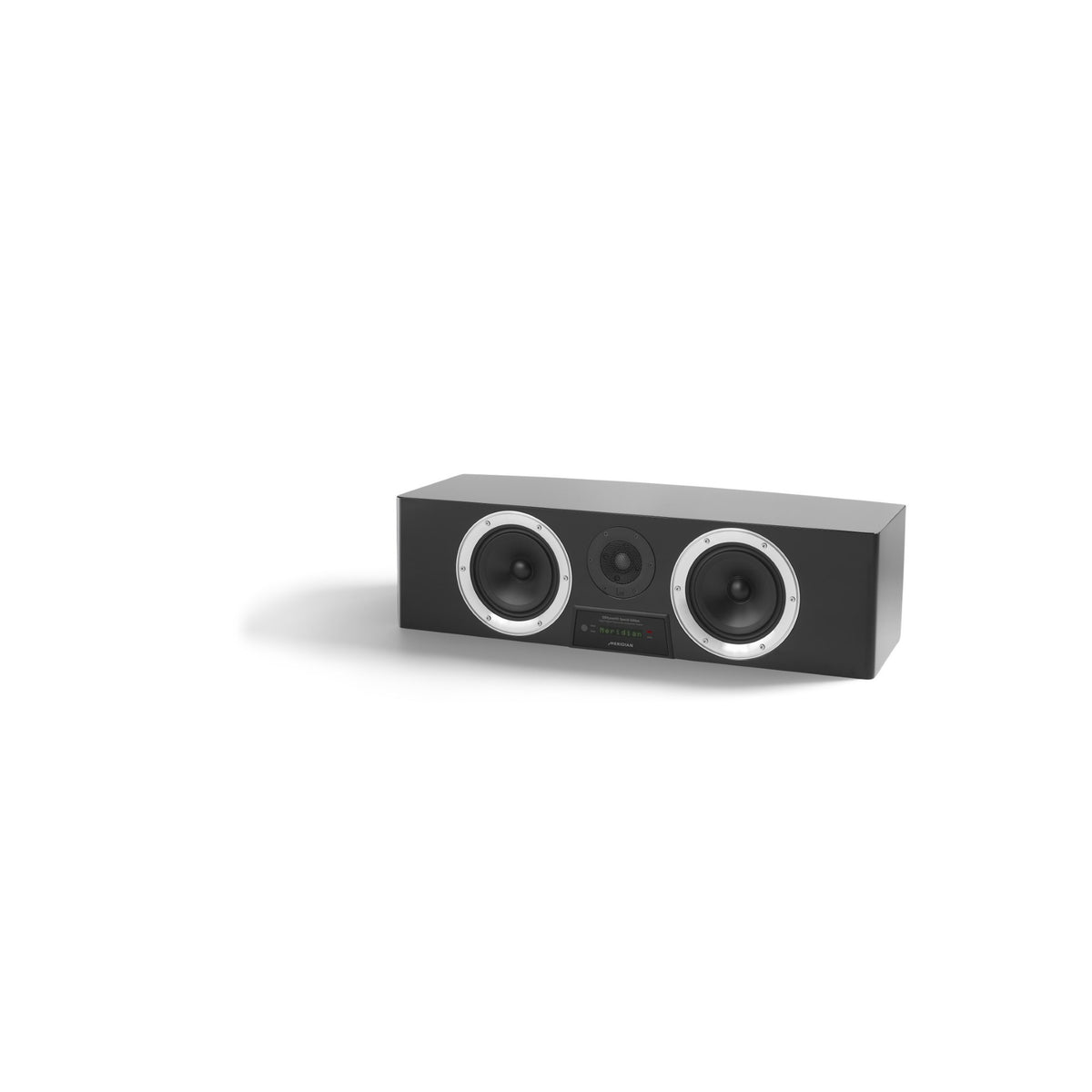

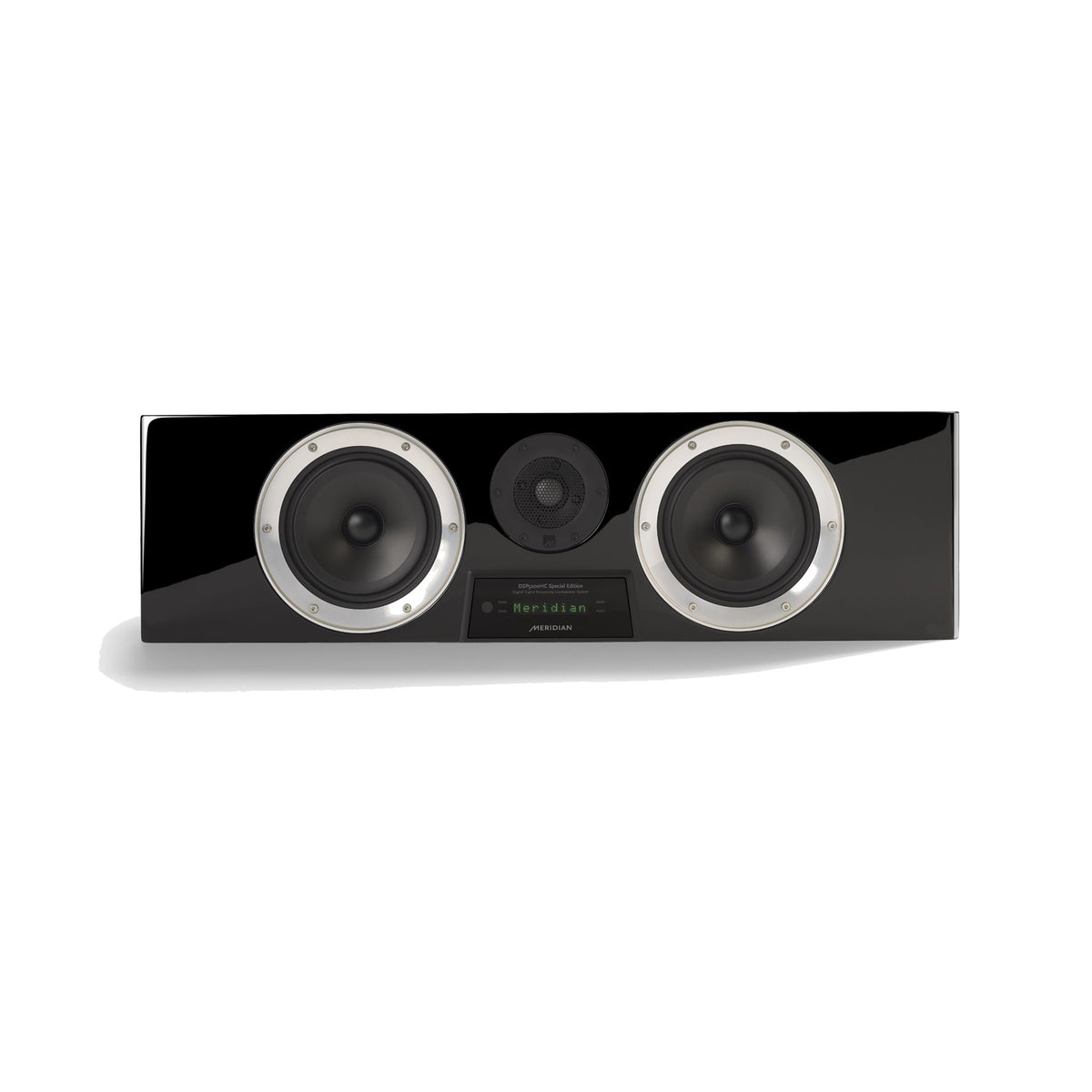

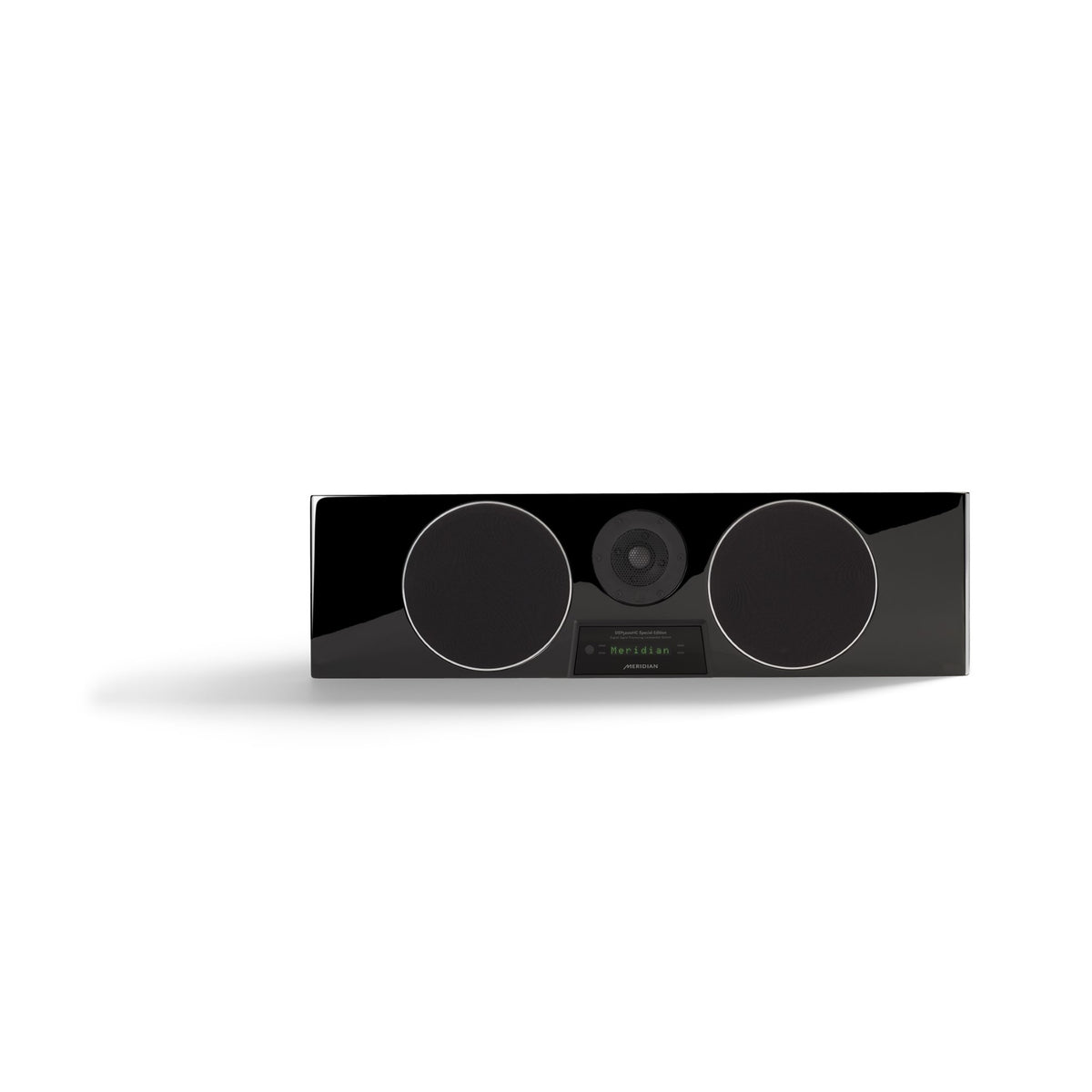

Meridian Special Edition DSP5200HC Digital Active Loudspeaker Gloss Black

The Meridian Special Edition DSP5200HC is the horizontal centre-channel partner for the free-standing Special Edition DSP5200 and delivers full-range playback in a low, wide cabinet. It shares the technologies of the whole Special Edition range, with purpose-built electronics housed inside its carefully crafted enclosure.

The DSP5200HC is designed to sit under a large-screen TV or behind an acoustically transparent projection screen, and it works well with other Meridian free-standing or in-wall loudspeakers. Meridian Image Elevation psychoacoustically lifts its sound image to the on-screen action, even when the speaker sits below the screen.

Key Features

• Full-range horizontal centre channel matched to the Special Edition DSP5200
• Image Elevation places dialogue at screen height
• 25 mm beryllium dome tweeter with silver voice coil
• 3 x 75 W amplification built in
• Frequency response in room 35 Hz – over 32 kHz, peak SPL 116 dB at 1 m
• Meridian technologies: Image Elevation, Bespoke Signal Mapping, E3 Bass, FFA, Pro-Active Bass, Pro-Active Thermal, Q-Sync, True Time and True Link

Specifications

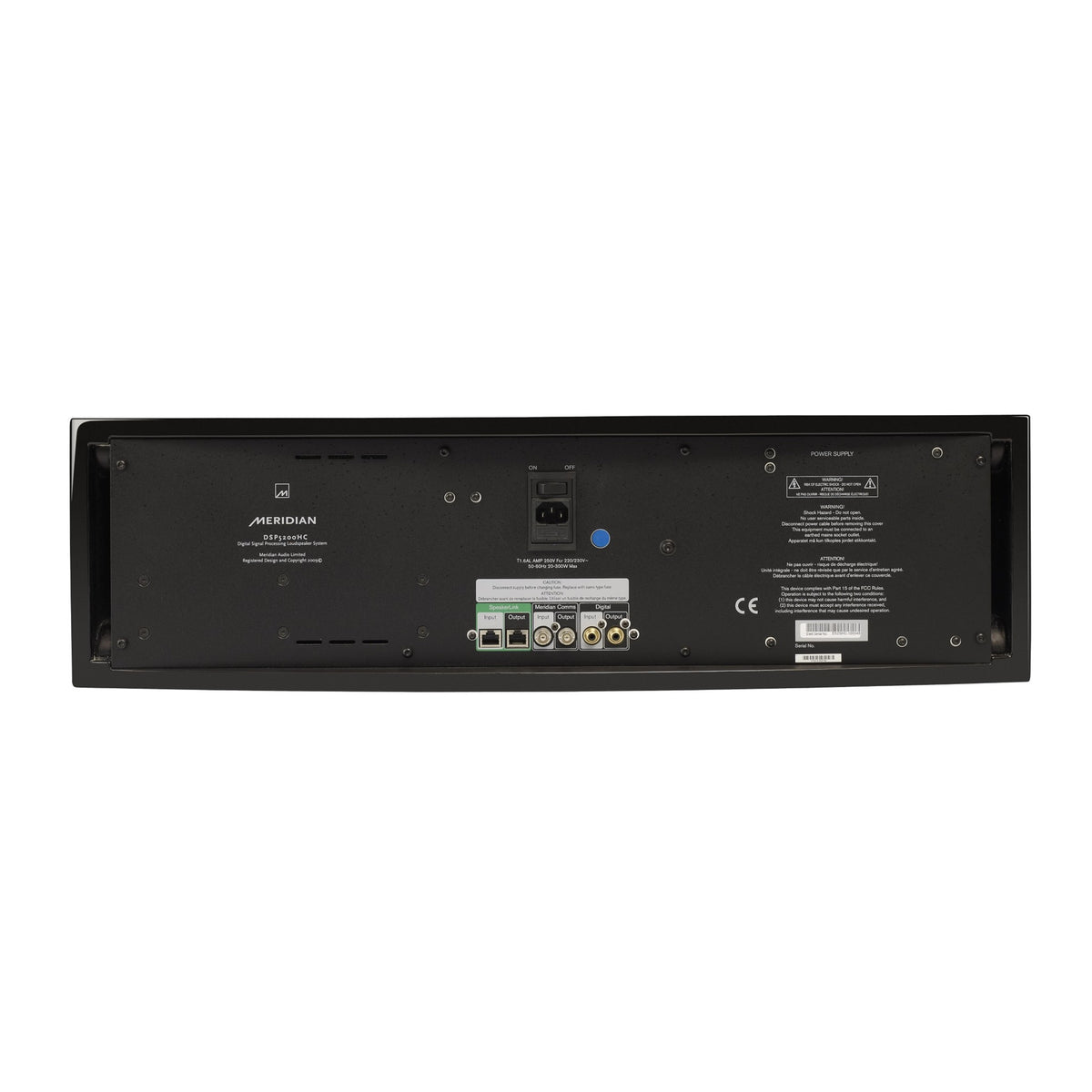

• Inputs / outputs: Meridian SpeakerLink (RJ45) and RCA coaxial digital, 32–96 kHz, up to 24-bit
• Amplification: 3 x 75 W (225 W); distortion typically below 0.02 %
• Drivers: 160 mm polypropylene long-throw low-bass, 160 mm polypropylene long-throw mid/bass, 25 mm beryllium dome tweeter
• Display: eight-character display with status indicators, can be blanked
• Dimensions (W x H x D): 735 x 201 x 267 mm
• Weight: 35 kg
• Power consumption: 20 W standby, 300 W max
• Finish: gloss black
