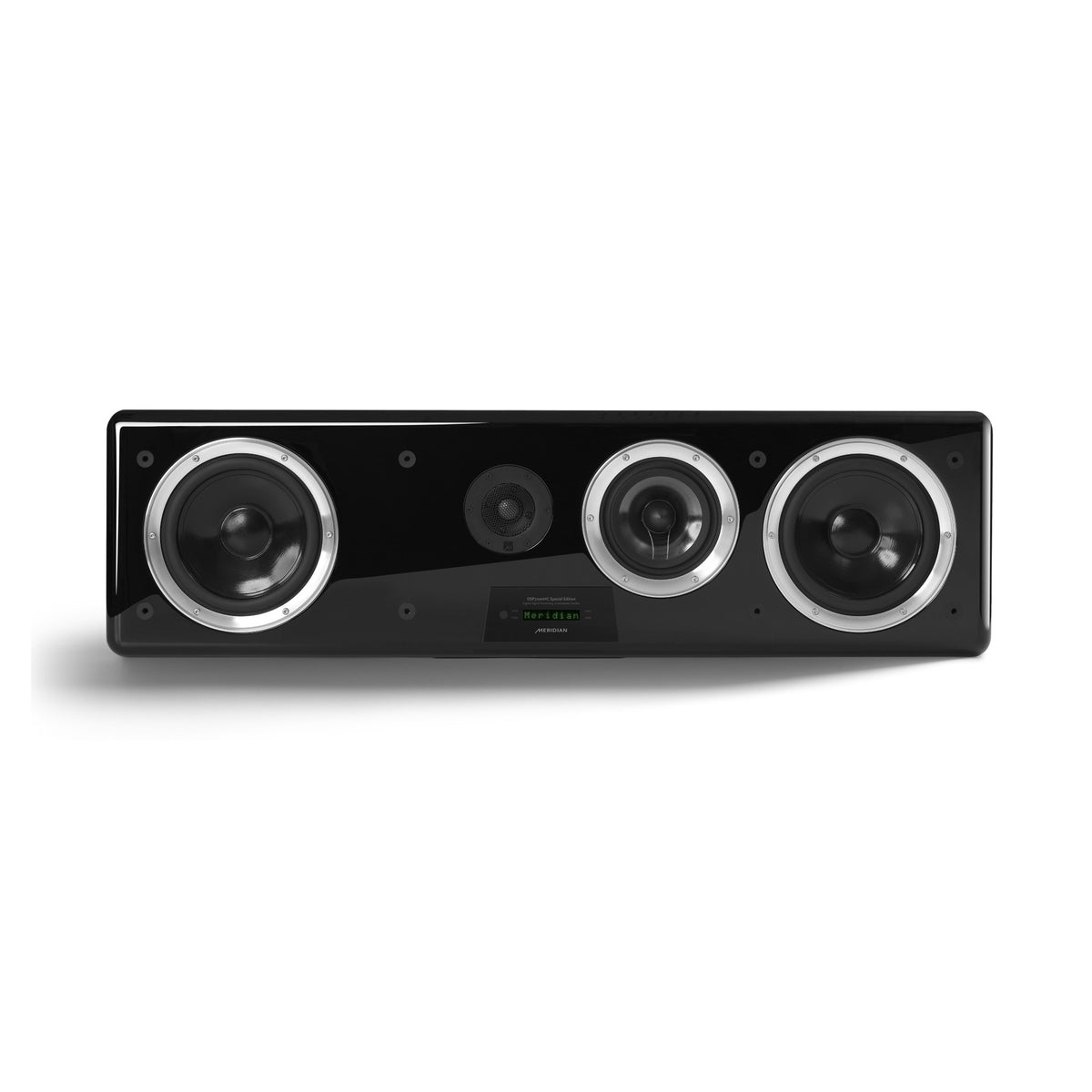

Meridian Special Edition DSP7200HC Digital Active Loudspeaker Gloss Black

The Meridian Special Edition DSP7200HC is a horizontal centre-channel loudspeaker for movies and music, made as the ideal companion for a pair of Special Edition DSP7200 or DSP8000 XE loudspeakers in a multi-channel system. Its sound is remarkably lifelike in both scale and tone.

The DSP7200HC is designed for mounting under a large-screen TV or behind an acoustically transparent projection screen, and works with Meridian free-standing and in-wall loudspeakers. Full Frequency Alignment corrects the larger delays that occur in the lower frequencies for a sweeter, more natural sound, while Image Elevation ties the sound image to the on-screen action even when the speaker is placed below the screen.

Key Features

• Centre partner for Special Edition DSP7200 and DSP8000 XE
• Image Elevation places dialogue at screen height
• 25 mm beryllium dome tweeter with silver voice coil
• 4 x 150 W amplification built in
• Frequency response in room 30 Hz – over 32 kHz, peak SPL 118 dB at 1 m
• Meridian technologies: Image Elevation, Bespoke Signal Mapping, E3 Bass, FFA, Pro-Active Bass, Pro-Active Thermal, Q-Sync, True Time and True Link

Specifications

• Inputs / outputs: Meridian SpeakerLink (RJ45) and RCA coaxial digital, 32–96 kHz, up to 24-bit
• Amplification: 4 x 150 W (600 W); distortion typically below 0.02 %
• Drivers: 2 x 200 mm long-throw bass, 160 mm polypropylene midrange, 25 mm beryllium dome tweeter
• Display: eight-character display with status indicators, can be blanked
• Dimensions (W x H x D): 1060 x 295 x 478 mm
• Weight: 64 kg
• Power consumption: 17 VA standby, 920 VA max
• Finish: gloss black
