Octave IN 1 RCA MM Phono Input Module for HP 700 SE and Phono Module

The Octave Phono Module and the Octave HP 700 (SE) preamplifier offer the option of installing or retrofitting various input modules.

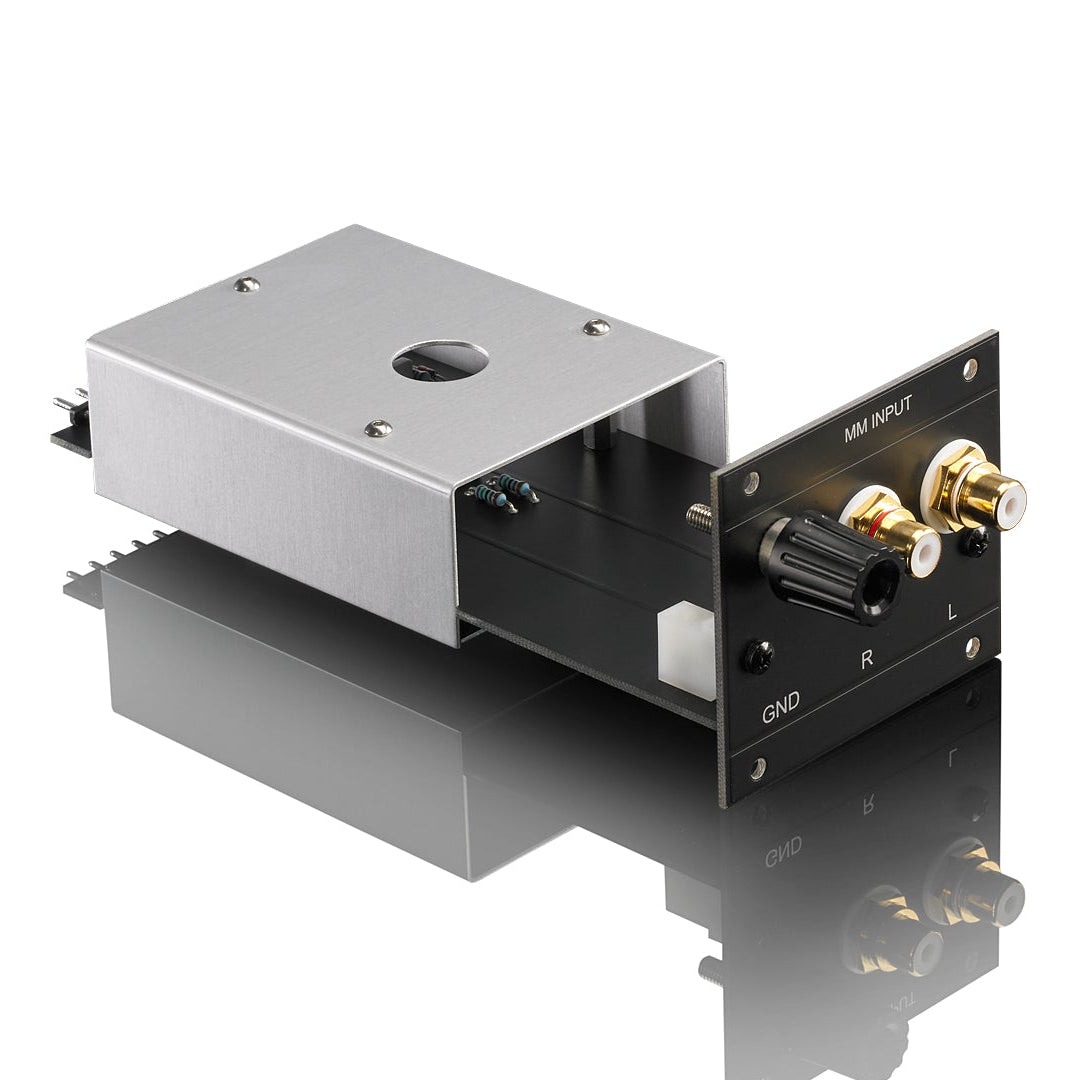

IN 1: RCA MM Input Module

IN 1 is an analog phono input for MM pickup cartridge systems. Two input resistances can be set on the module, 47 kohm for MM systems and 1 kohm for MC high-output systems.

Specifications

• Input sensitivity: 3 - 5 mV
• Input impedanz: 1 kOhm / 47 kOhm / 220 pF
• Gain factor: 38 dB
• Signal to Noise Ratio: 77 dB Broadband / 94 dB Band-pass at 1 kHz
