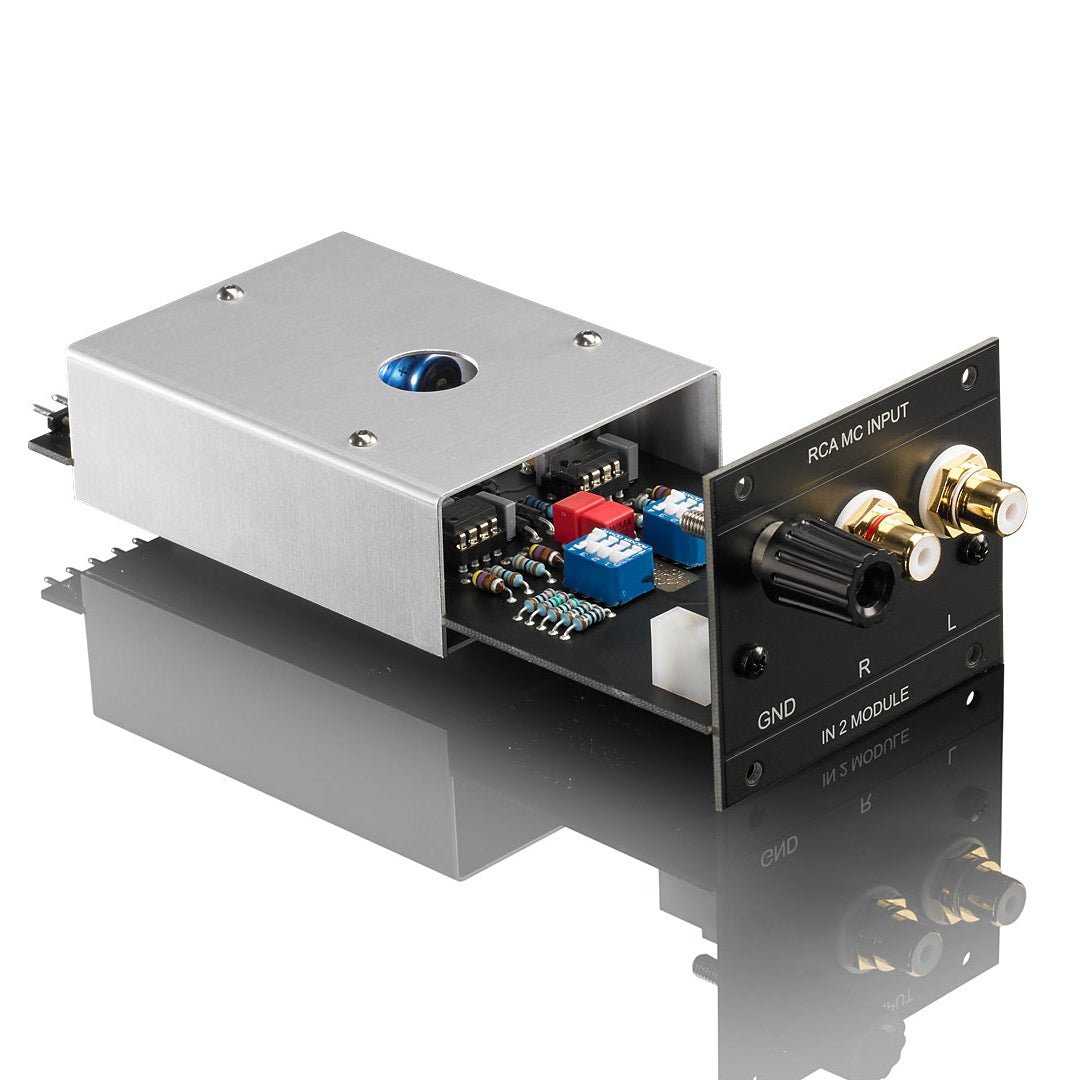

Octave IN 2 RCA MC Phono Input Module for HP 700 SE and Phono Module

The Octave Phono Module and the Octave HP 700 (SE) preamplifier offer the option of installing or retrofitting various input modules.

IN 2: Cinch MC Input modul

IN 2 is an analog phono input for MC pickup cartridge systems. This MC input can be switched into two amplifier levels. The input resistance can vary within the range of 62–1000 ohms.

Specifications

• Input sensitivity: 0.1 - 1 mV
• Input impedance: 62 - 1000 Ohm || 4.7 nF
• Gain factor: 65 dB Gain high, 58 dB Gain low
• Signal to Noise Ratio: 69 dB Gain high; -75 dB Gain low ; Broadband
