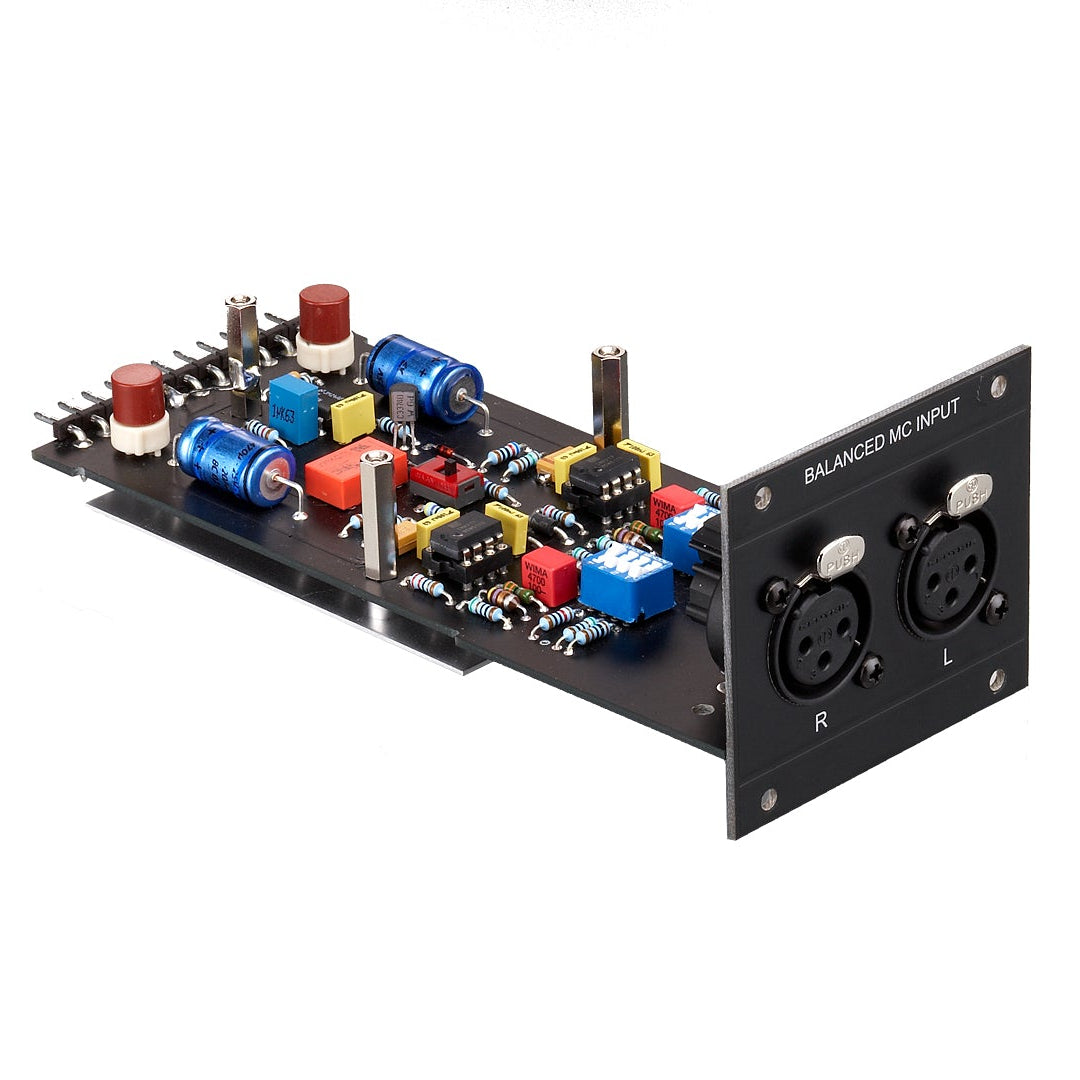

Octave IN 3 XLR MC Phono Input Module for HP 700 SE and Phono Module

The Octave Phono Module and the Octave HP 700 (SE) preamplifier offer the option of installing or retrofitting various input modules.

IN 3: XLR MC input module

IN 3 is a balanced phono input for MC pickup systems. This MC input can be switched in two levels of gain. The input impedance can be varied in the range 60 – 1000 ohms.

Specifications

• Input sensitivity: 0.1 - 1 mV
• Input impedance: 62 Ohm - 1 kOhm / 4.7 nF
• Gain factor: 65 dB Gain high, 58 dB Gain low
• Signal to Noise Ratio: 72 dB Gain high, -78 dB Gain low
