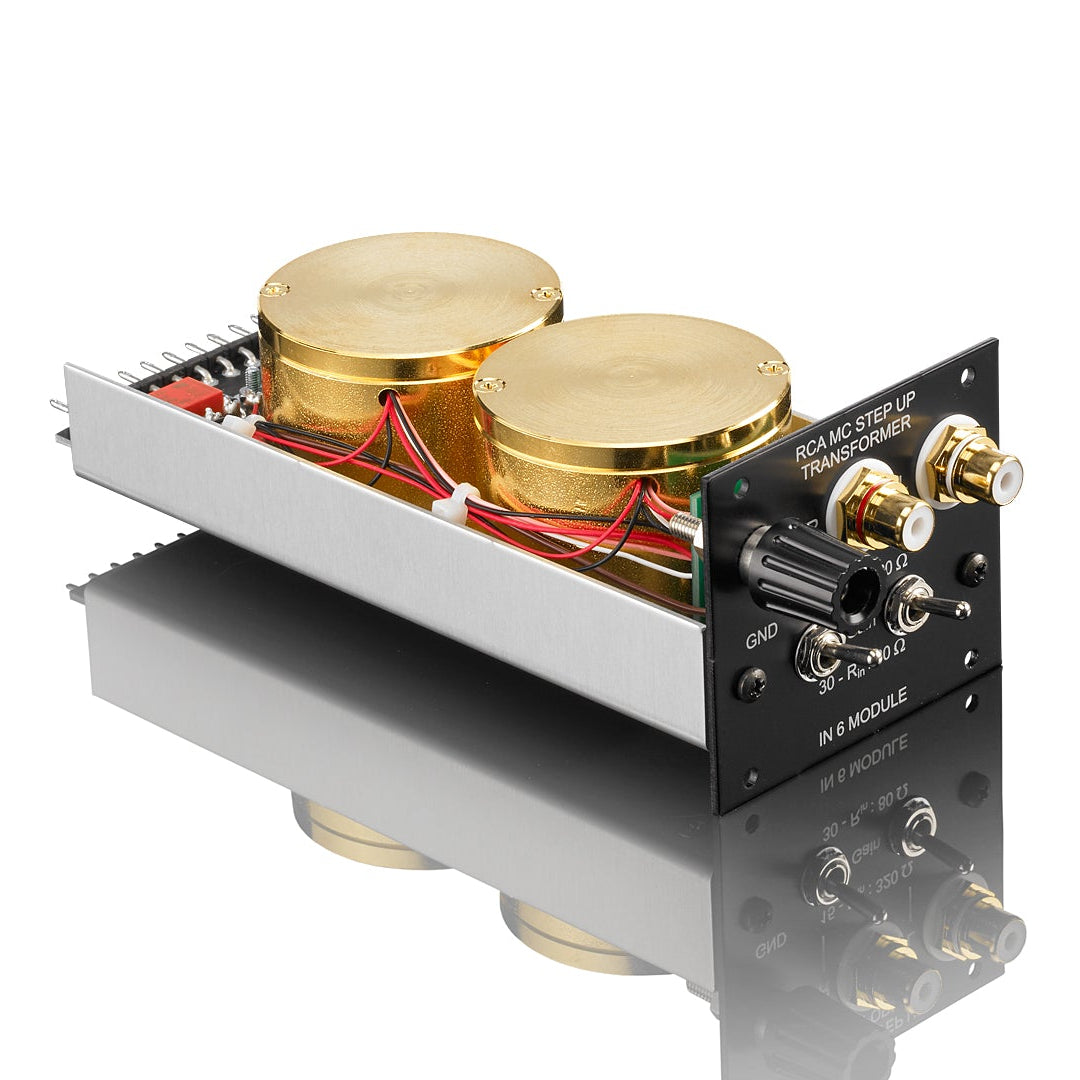

Octave IN 6 RCA MC Transformer Input Module for HP 700 SE and Phono Module

The Octave Phono Module and the Octave HP 700 (SE) preamplifier offer the option of installing or retrofitting various input modules.

IN 6: RCA MC transformer input module

IN 6 is a step up transformer for low-resistance MC systems. The transmission factor can be switched between 15 and 30. The Gain 30 position is ideal for classic low output MC systems with a level of around 300 µV, the Gain 15 position is optimally tuned for all modern MC systems that deliver a level between 0.5 and 1 mV.

Specifications

• Input sensitivity Gain 15 / 30: 0.2 - 2 mV / 0.2 - 1 mV
• Input impedance Gain 15 / 30: < 320 Ohm / < 80 Ohm | 30 Hz - 40 kHz
• Gain factor: 15 / 30
• Pickup internal resistance Gain 15 / 30: 5 - 25 Ohm / 0.5 - 5 Ohm
