Octave IN 7 XLR MC Transformer Input Module for HP 700 SE and Phono Module

The Octave Phono Module and the Octave HP 700 (SE) preamplifier offer the option of installing or retrofitting various input modules.

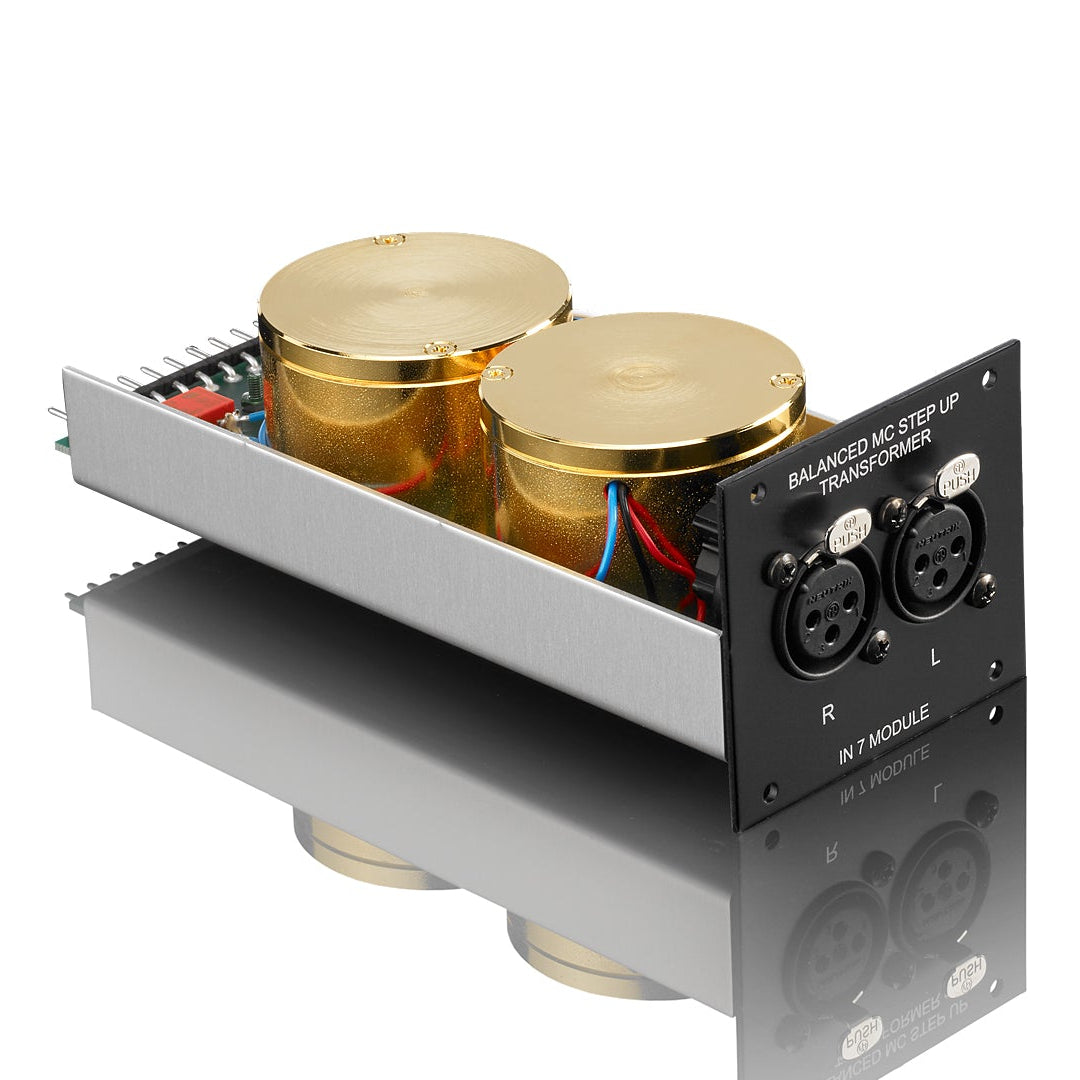

IN 7: XLR MC transformer input module

IN 7 is a step up transformer with symmetrical inputs with a transfer factor of 1:20. A symmetrical coupling of the pickup brings advantages in terms of the signal-to-noise ratio if the signal cable to the phono input is relatively long and if the highest demands are placed on tonal purity.

Specifications

• Input sensitivity: 0.2 - 2 mV
• Input impedance: < 200 Ohm | 30 Hz - 40 kHz
• Gain factor: 20
• Pickup internal resistance: 1 - 25 Ohm
