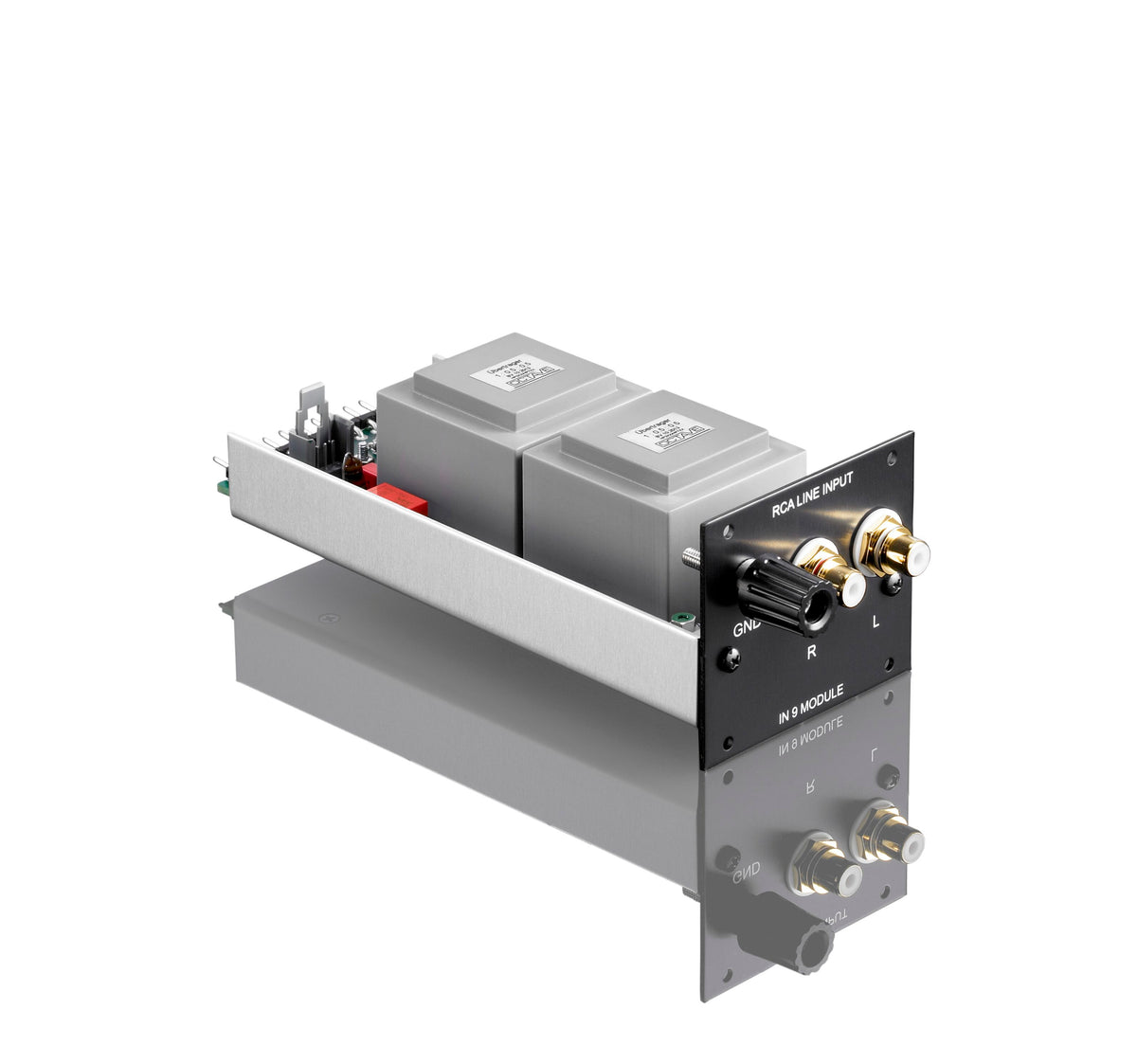

Octave IN 9 RCA Line Transformer Input Module for HP 700 SE and Phono Module

The Octave Phono Module and the Octave HP 700 (SE) preamplifier offer the option of installing or retrofitting various input modules.

IN 9: RCA line transformer input module

IN 9 is a line input module for RCA, with an unbalanced input transformer. The ground connection of the RCA input and the preamplifier can be separated using a switch on the module board. Due to the transformer coupling, this module is the ideal link between modern DACs, music servers, CD players, etc.

Specifications

• Input sensitivity: 100 mV - 6 V
• Input impedance: 10 kOhm
• Gain factor: 0 dB / transformer 1 : 1
• Signal to Noise Ratio: -115 dB
• Frequency range: 30 Hz - 80 kHz / -1 dB
