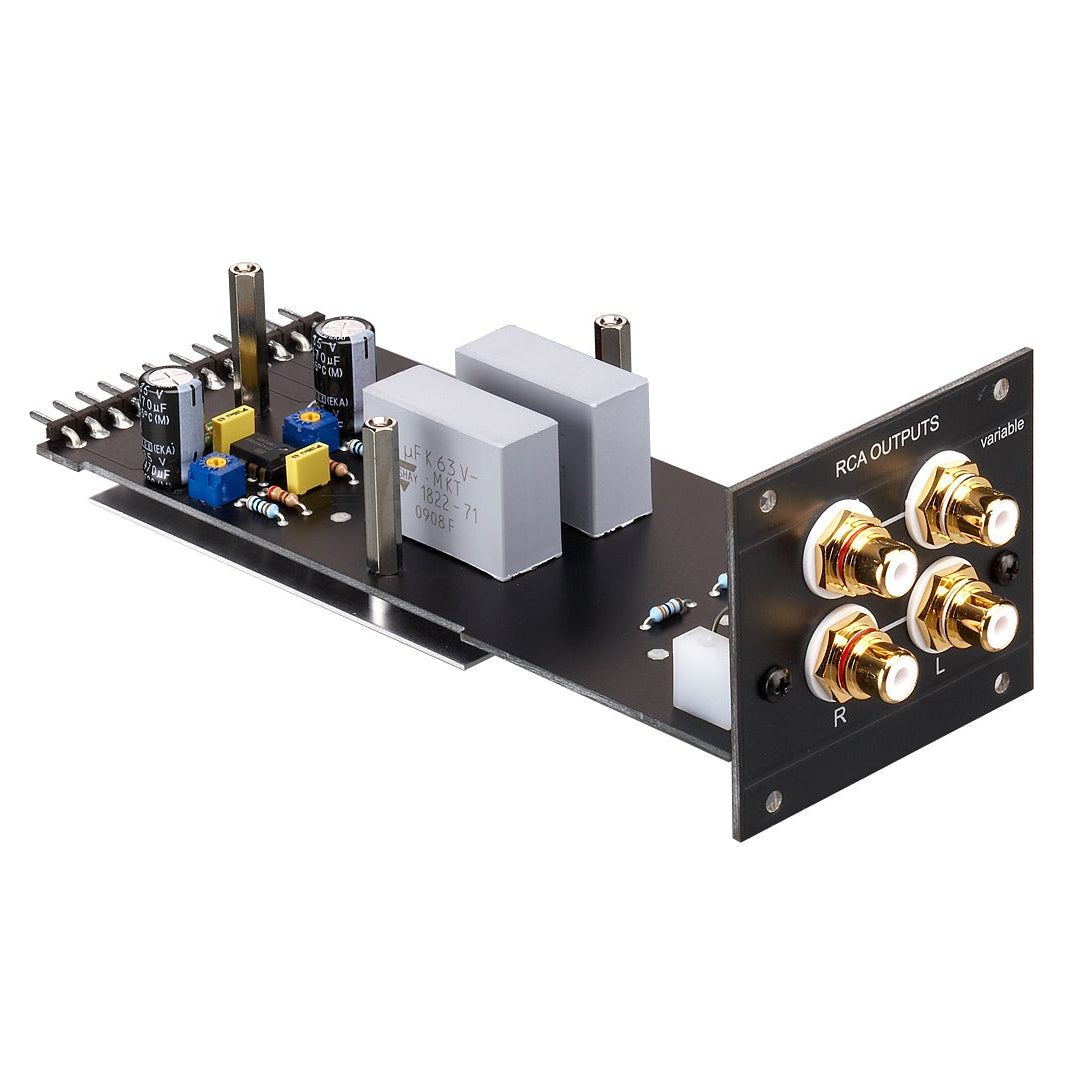

Octave OUT 1 RCA Standard Output Module for Phono Module

The Octave Phono Module offers the option of installing or retrofitting various output modules.

OUT 1: RCA standard

OUT 1 is a Cinch standard output module with double output 1 x fixed, 1 x variable. The adjustable output can be used for external headphone amplifiers or as a direct recording output for tape or PC. The unregulated output is intended for connection to high-level inputs of a pre-integrated amplifier.

Specifications

• Output Voltage fixed / variable: 2 V / 0 - 2 V
• Output Resistance fixed / variable: 250 Ohm
• Signal-to-noise ratio: -120 dB, regulated output
