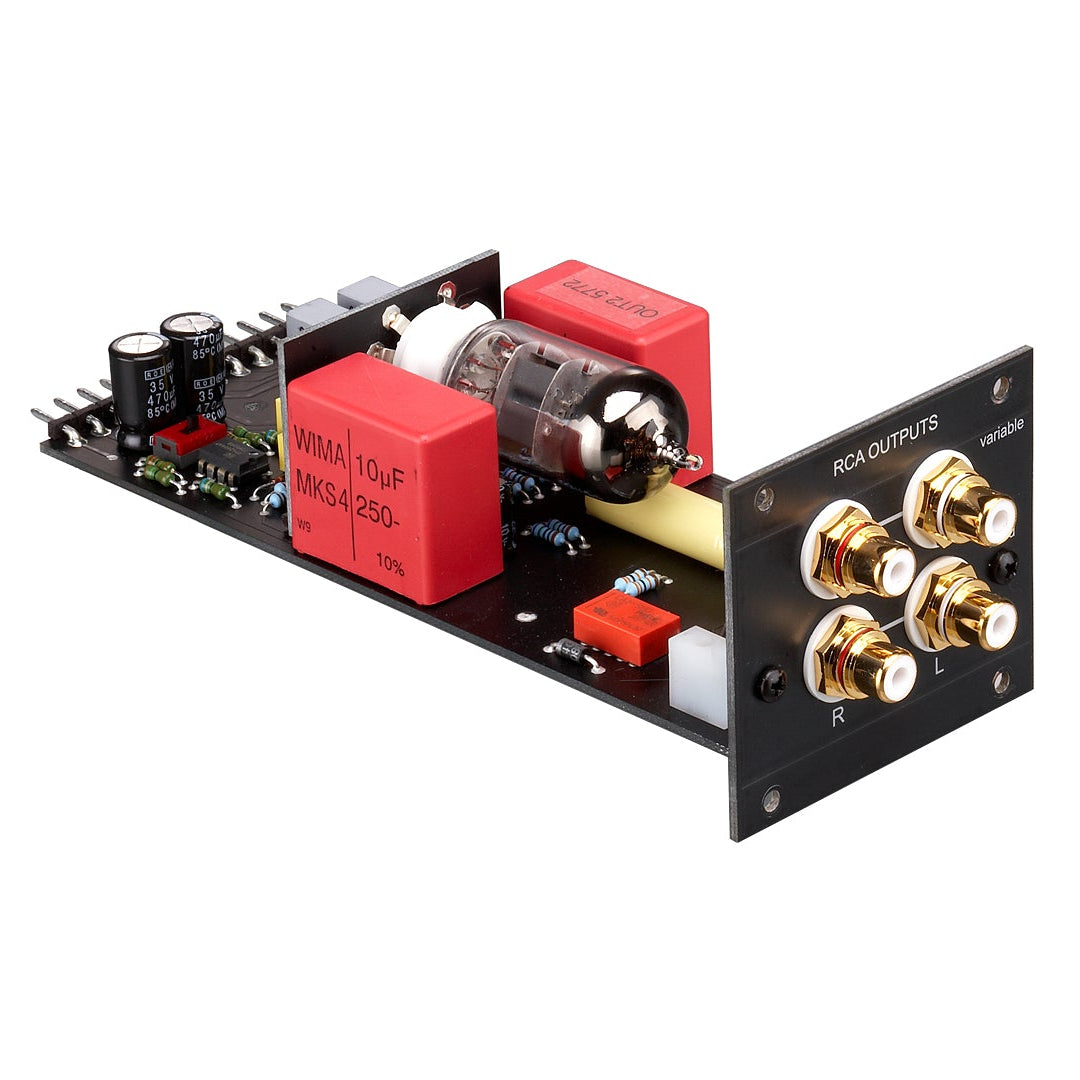

Octave OUT 2 RCA Direct Drive Output Module for Phono Module

The Octave Phono Module offers the option of installing or retrofitting various output modules.

OUT 2: RCA Direct Drive

With the tube output module OUT 2 it is possible to directly control asymmetrical power amplifiers with the variable output. The fixed output is intended for connection to high level inputs.

Specifications

• Output Voltage: 0.5 - 1 V fix / 0 - 7 V variable
• Output Resistance: 250 Ohm fix / 320 Ohm variable
• Signal-to-noise ratio: -100 dB Gain high / -110 dB Gain low regulated output
• Frequency Response: 10 Hz - 200 kHz / -0.5 dB
• Total Harmonic Distortion: 0.001% at 2 V / 1 kHz
