Octave OUT 3 XLR Direct Drive Output Module for Phono Module

The Octave Phono Module offers the option of installing or retrofitting various output modules.

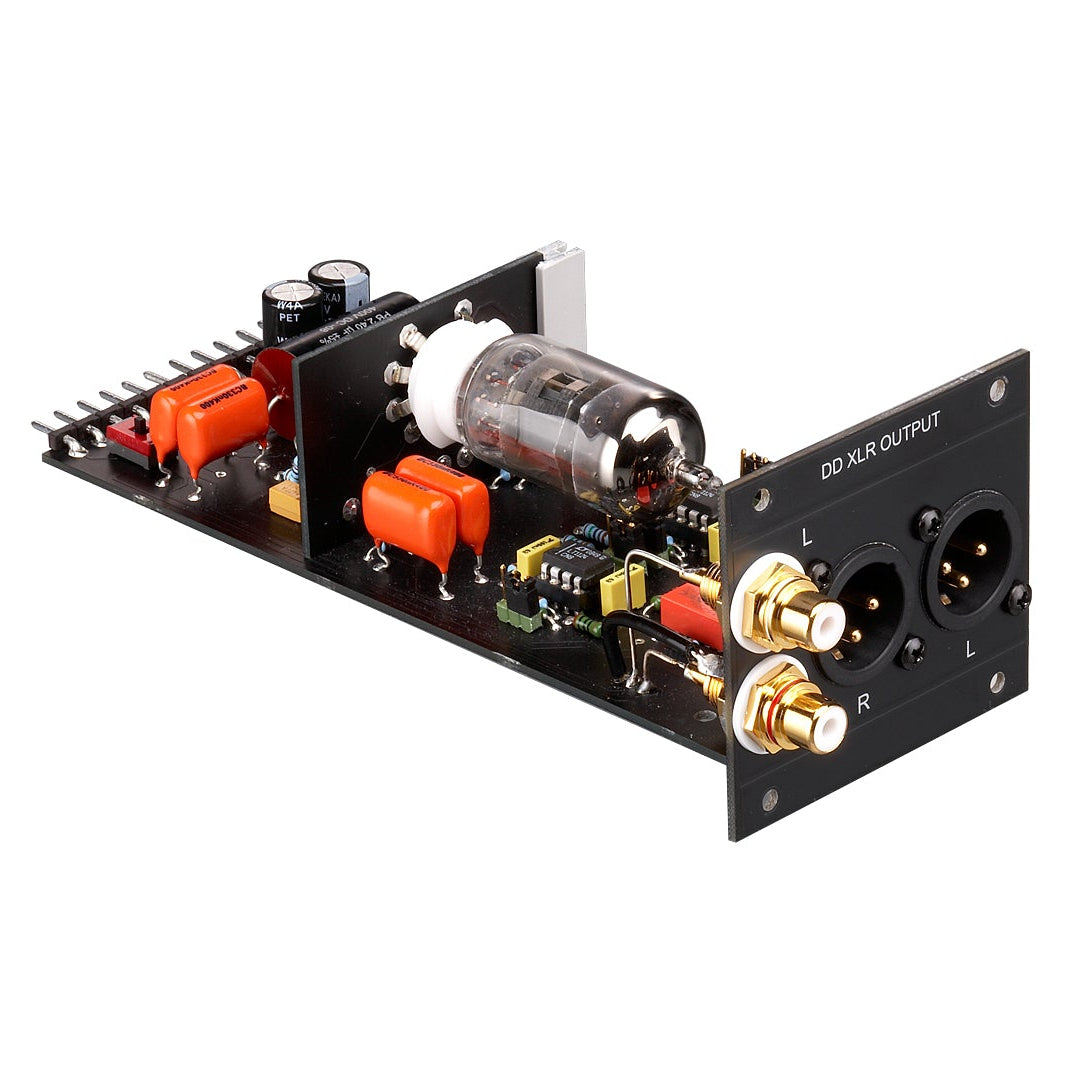

OUT 3: XLR Direct Drive

With the tube output module OUT 3 it is possible to directly control symmetrical power amplifiers with the variable output. The fixed output is intended for connection to high level inputs.

Specifications

• Output voltage: 0.5 - 1 V fix / 0 - 14 V variable
• Output resistance: 250 Ohm fix / 320 Ohm variable
• Signal-to-noise ratio: -100 dB Gain high / -110 dB Gain low, regulated output
• Frequency response: 10 Hz - 200 kHz / -0.8 dB
• Total harmonic distortion /THD + noise: 0.001% at 4 V / 1 kHz
