Pro-Ject Amp Box S3 Mini Audio Power Amplifier

Miniature Audio Power Amplifier with RCA input & 12V Control In/Out

Ultra compact & audiophile | Advanced amplifier module | Metal casing | Made in Europe

The new Amp Box S3 offers one stereo RCA input and delivers powerful and room-filling sound to every loudspeaker.

Playback Control Options:
12V trigger in/out for remote power control

Contents & compatibility:
What's in the box - Pro-Ject Amp Box S3, 20V DC external power supply (EU type), User manual
The the product will work on EU & UK mains power supply with corresponding power cord, check if your region power cord is supplied above.
Is this a complete audio system? - No, you will need to connect it to line level audio signal and add passive loudspeakers of your choice

Important features:
Sound character - lower detail, warm timbre
Setup & use is simple & easy
Suitable for TV/PC sound as an sound quality upgrade
Amplifier power - 23W @8Ω, 40W @4Ω (peak 50W @4Ω) (per channel)
Amplifier technology - Class D (digital sound amplification - very efficient)
Min. connected speaker impedance - >=4Ω
Frequency response - 20Hz-20kHz (-0,7dB)
Audio inputs - RCA analogue
Audio outputs - 4mm speaker ports (banana, spades. pins or bare wire)
Signal to noise ratio - 87dBV
Channel separation - 68dB
Power consumption - <0,5W in standby; 46W max peaks rating

Micro audiophile stereo power amplifier

Efficient, audiophile & made in Europe!

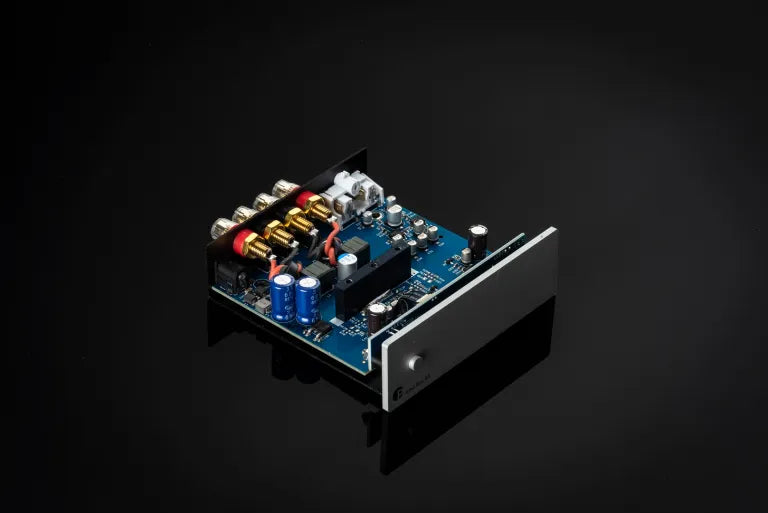

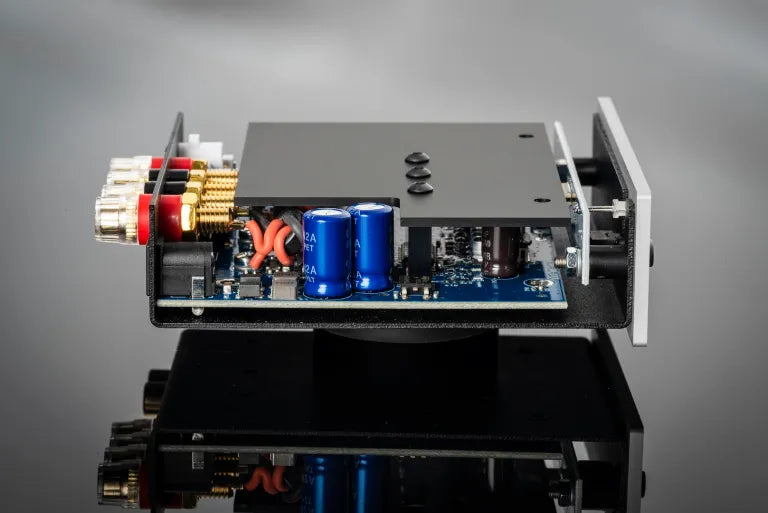

The new Amp Box S3 offers one stereo RCA input and delivers powerful and room-filling sound to every loudspeaker. The new PCB concept & sophisticated topology achieves less distortion and a better signal to noise ratio. We designed this amp to match the sound characteristics of a tube amplifier as close as possible. Amp Box S3 brings you a rich and musical sound with an analogue touch of warmth into your living room. It is also the perfect solution for your desktop nearfield monitor speakers due to its size and superior spacious sound stage.

Application examples:
• HiFi Amplifier for 10-15 m2 rooms
• Audiophile desktop nearfield monitor amp
• Streamer power amp upgrade
• Multiroom power amp solution
• Home cinema power amp upgrade
• In-wall or celing speaker amp

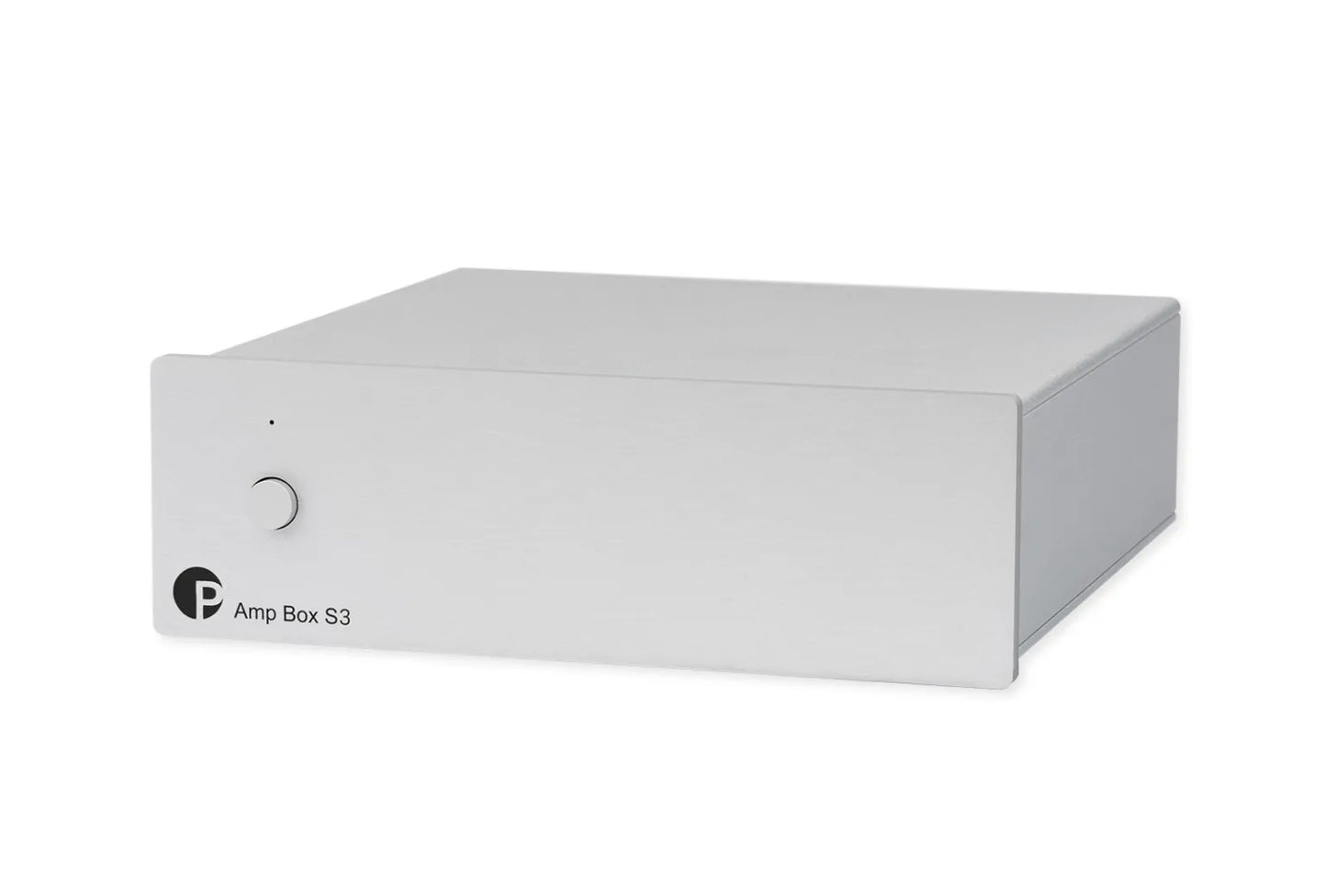

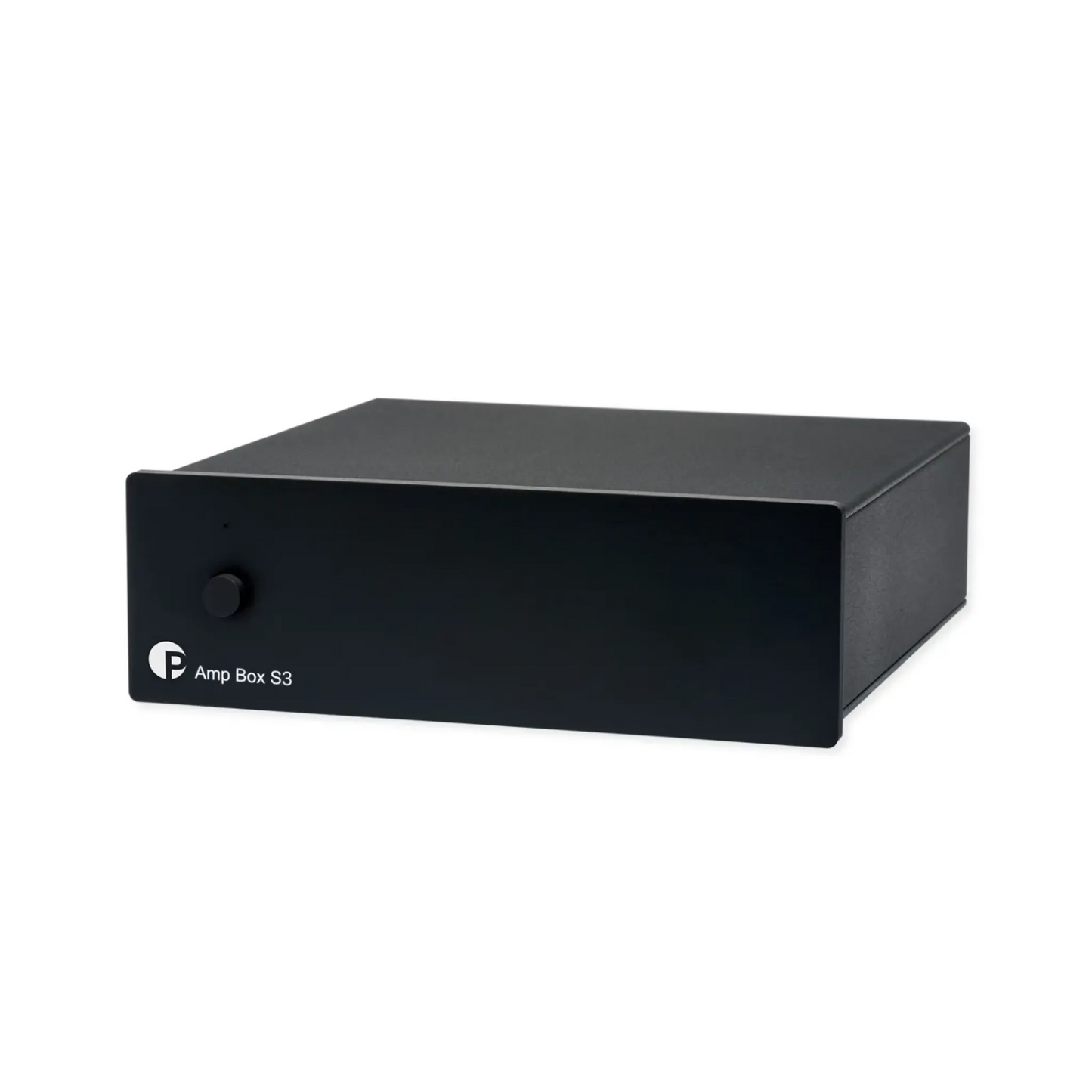

The new Amp Box S3 is designed and produced in Europe and is available in a black & silver finish.

EAN 9120097829092<br>
SKU pj-amp-box-s3-black<br>
<br>

Specifications:<br>
Technical Specifications
Power output 2 x 23 W / 40 W at 8 ohms / 4 ohms
Peak power 2 x 50 W at 4 ohms
Frequency response 20Hz - 20kHz (- 0,7dB / 4 ohms)
Channel separation > -68 dB @ 20kHz
Signal-to-noise ratio 87dBV (100dBV-‚A‘ weighted)/4ohms
THD < 0,02% @ 10W / 4 ohms
Gain 31 dB

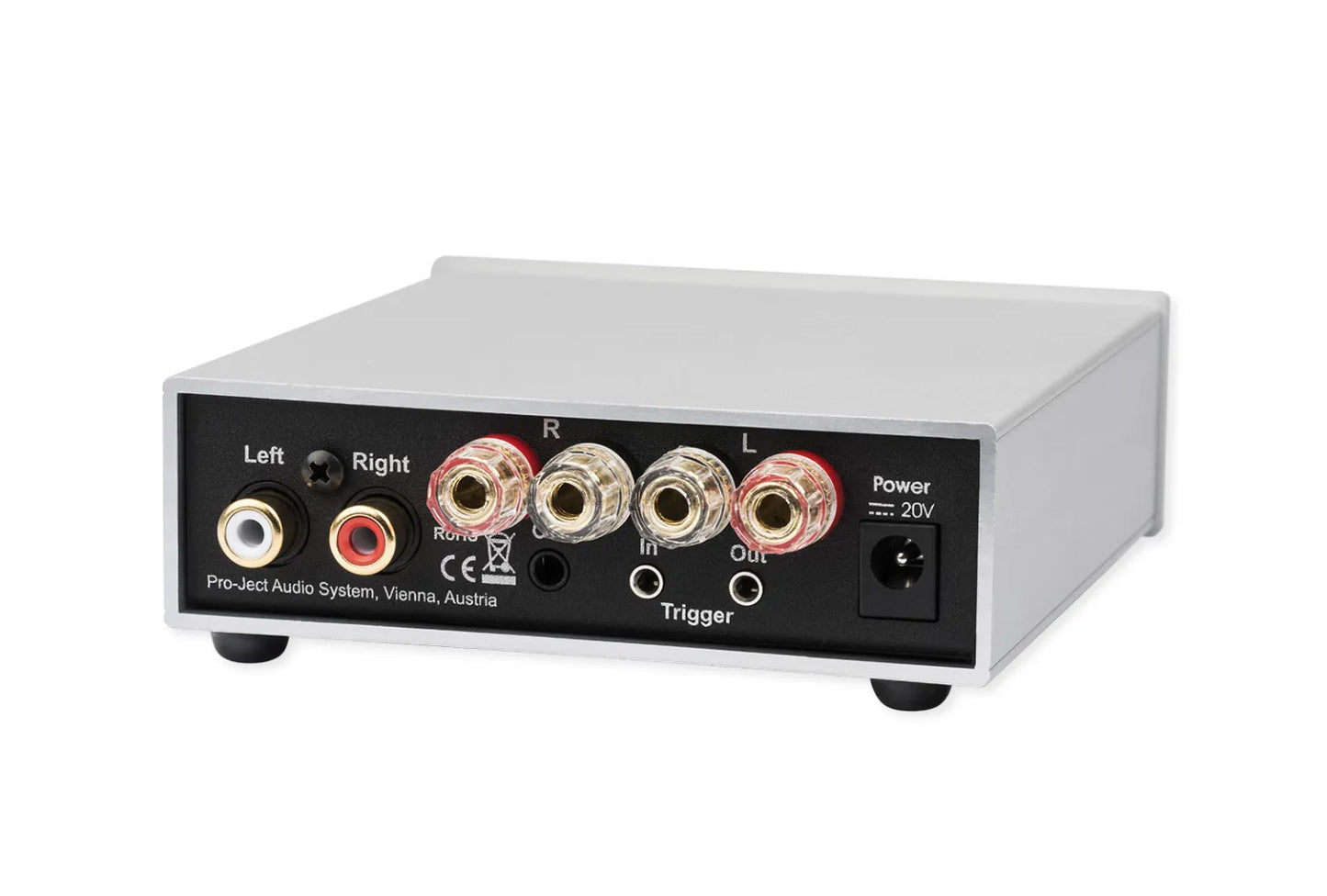

Input 1 pair RCA sockets
Input impedance 25 kohm
Speaker sockets 4mm Ø Banana, spades. pins or bare wire
Trigger 12V DC In&Out, 2-pole jack socket Ø 2,5mm
Power supply 20V/3A DC (universal power supply)
Dimensions W x H x D 103 x 36 x 118mm
Weight 385g without power supply
