Manual Turntable with Cartridge, Phono Preamplifier and Acrylic Dust Cover
Built-in phono preamp with RCA output | One-piece carbon tonearm with sapphire bearings | Precision belt drive with decoupled synchronous motor | Ortofon 2M Red cartridge, pre-mounted and factory aligned | Non-resonant acrylic platter | Slip mat
Make vinyl part of your Sonos experience when you connect this turntable to select products.
Available Music Options:
Music sources - LP or SP records
Hi-Res Audio Compatible
Contents & compatibility:
What's in the box - Pro-Ject Debut Carbon, EU powercord, 15 volts DC power supply, dust cover, anti-skating weight, Pro-Ject RCA to RCA cable (1.23 m), felt mat, round belt for 78rpm, plastic adapter for single LPs, 1.5 mm Allen key, two-point alignment protractor (template for cartridge setting), RCA to 3.5 mm adapter, User manual
The the product will work on EU & UK mains power supply with corresponding power cord, check if your region power cord is supplied above.
Is this a complete audio system? - No, you will need to add Sonos Move 2, Era 100, Era 300, Five, Amp, Port or any other active speaker or a combination of amplifier and speakers
Important features:
Sound character - good detail, neutral, balanced timbre
Setup & use is convenient
Frequency response - 20Hz-22kHz (+-3dB)
Audio inputs - RCA analogue, USB audio
Signal to noise ratio - 68dB
Wow & flutter - ±0,19% (33rpm), 0,17% (45rpm)
Effective tonearm mass - 6g
Effective tonearm length - 8,6" (218,5mm)
Channel separation - 22dB (1kHz)
Stylus compliance - 20µm
Stylus type - elliptical
Power consumption - 7,4W, <0,5W in standby

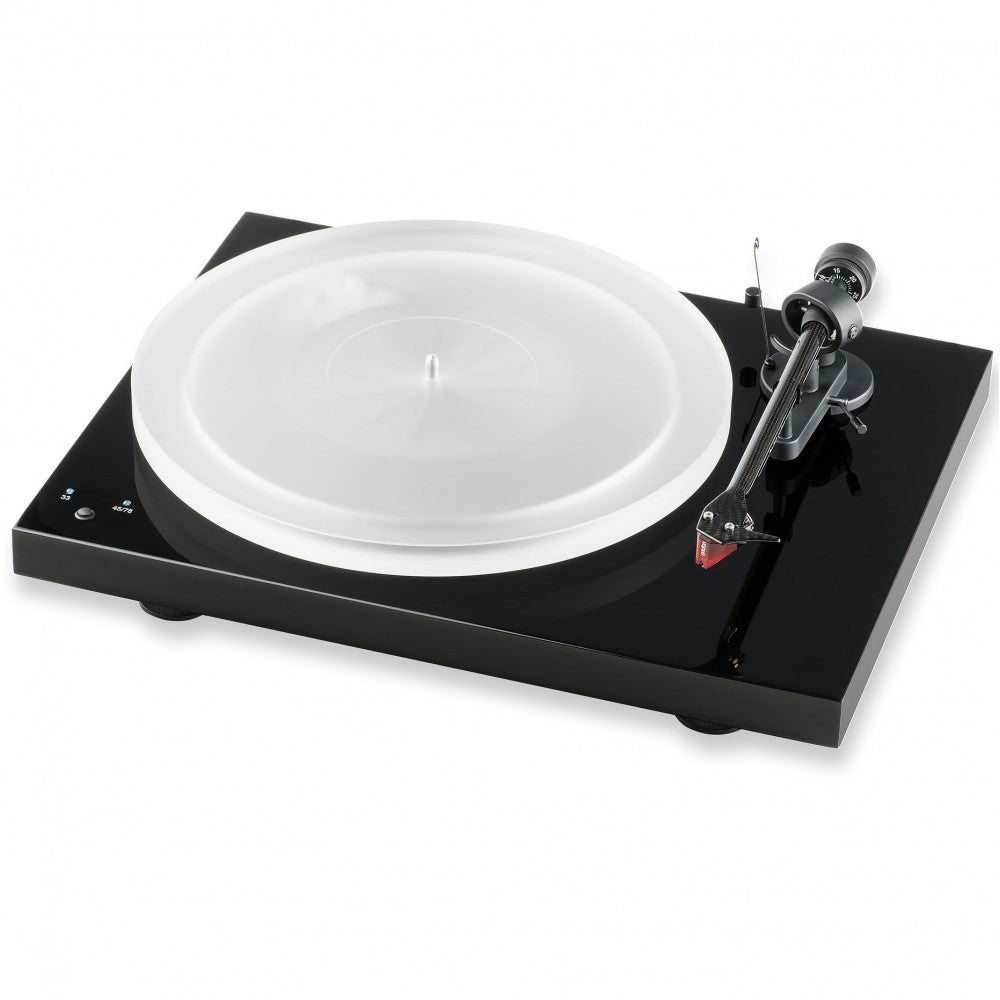

The Debut Carbon Esprit SB turntable takes the hugely successful, multi-award winning Debut Carbon design and adds even more to the already impressive package. On top of the impressive feature set of the standard Debut Carbon DC, including the stunning carbon fibre tonearm and Ortofon 2M Red cartridge combination; the Esprit SB version also benefits from an intuitive speed controller for effortless changing between 33 and 45rpm. The Debut Carbon Esprit SB can also spin at 78 RPM by manually switching the drive belt to the larger pulley rung (underneath the platter) and setting the speed changer to ’45/78′.
(Please Note: 78 RPM records require a special stylus – we recommend the Ortofon 2M 78 Stylus for this turntable).
As well as being convenient, the speed control system also allows for smoother motor operation – further reducing unwanted resonances along with Pro-Ject’s specially-developed motor isolation system. The new motor isolation system utilises Pro-Ject’s preferred Thermo-Plastic Elastomer (TPE) compound to achieve dramatically reduced resonance transference from the high-quality 9V motor.
Another significant sonic benefit for the Debut Carbon Esprit SB is found in the included platter upgrade. Supplied with a 12″ Acryl-IT platter, acrylic is a an excellent playback platform for vinyl, as it offers almost no resonance in the audible frequency range and negates the need for a slipmat, which can sometimes cause problems with slip and/or static.
The Debut Carbon Esprit SB takes an established hi-fi design and adds some impressive upgrades to achieve an even more complete, more high-end turntable system.
EAN 9120082384056
SKU PJDECASON1
Specifications:
Audio
Signal to Noise: 68 dB
Sampling Frequency: Up to 192 kHz
Phono Preamplifier: Built-in phono preamp/phono stage
Outputs: RCA Phono/Line (detachable)
Details + Dimensions
Speed: 33, 45 / 78 (electronic/manual speed change)
Speed Drift: 33: ±0.19% 45: ±0.17
Wow + Flutter: 33: ±0.6% 45: ±0.7%
Platter: 300 mm acrylic platter
Mains Bearing: Stainless steel axle in a bronze bearing housing
Tonearm: 8.6” carbon
Effective Arm Length: 218.5 mm
Overhang: 18.5 mm
Tracking Force: 10 - 30 mN
Drive Principle: Belt drive
Dimensions (HxWxD): 118x415x320 mm
Weight: 4.9 kg
Power + Connectivity
A/D Converter: Asahi Kasai Microdevices, AK5552VN
Power Connection: 110/120 or 230/240 Volt - 50 or 60 Hz
Power Consumption: 7.4W max < 0.5W standby
Box Contents
Included Accessories: 15 volts DC power supply, dust cover, anti-skating weight, Pro-Ject RCA to RCA cable (1.23 m), felt mat, round belt for 78rpm, plastic adapter for single LPs, 1.5 mm Allen key, two-point alignment protractor (template for cartridge setting), RCA to 3.5 mm adapter, documentation
Requirements
Power Source: Nearby electrical outlet
Speaker: Requires amplified active speaker for audio output and a 3.5 mm line-in adapter (for SONOS smart speakers only)
