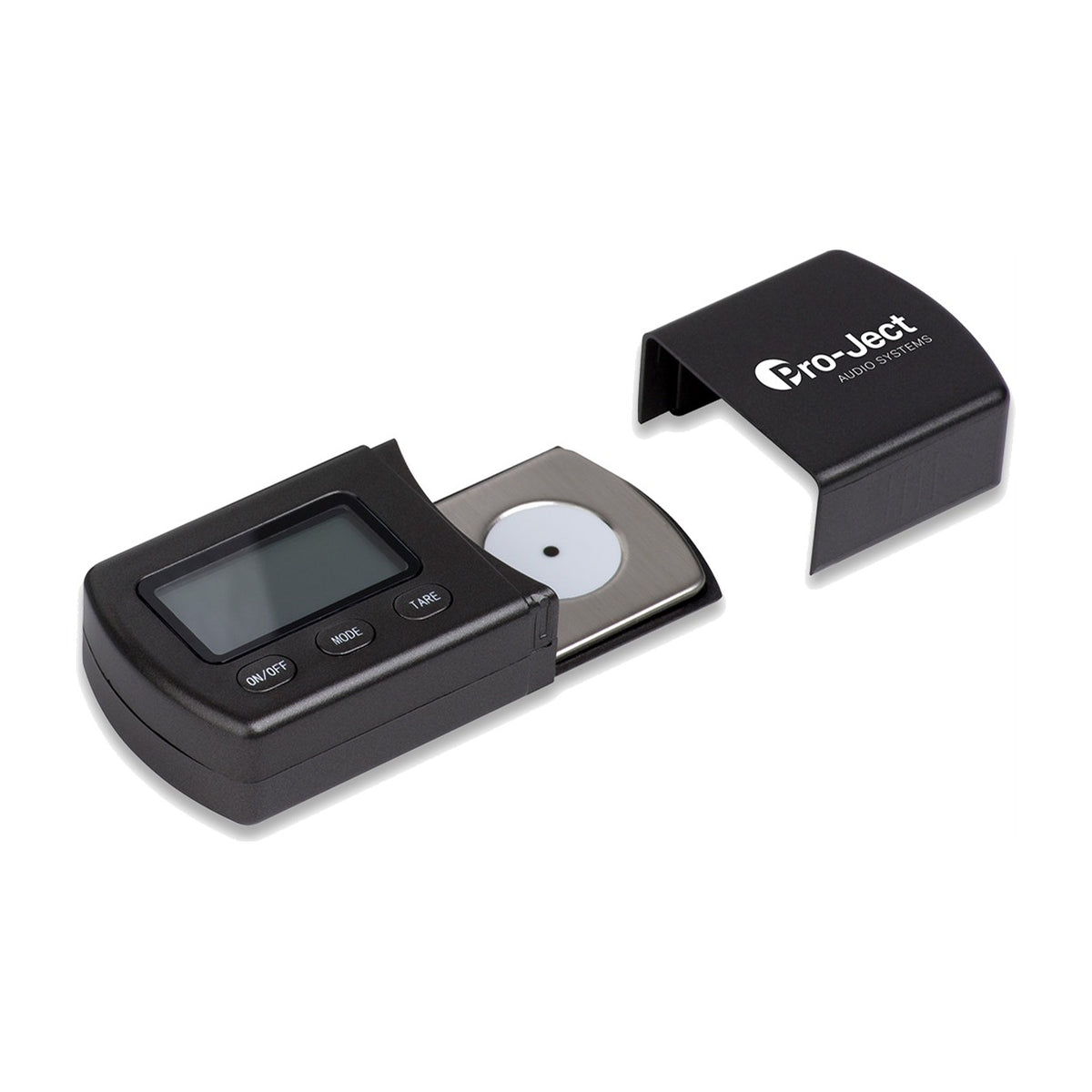

Pro-Ject Measure it E Stylus Force Gauge

Electronic stylus balance

The Measure it E Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus tracking forces up to 5.0 grams in 0.01 gram increments. Each Measure it E can easily be calibrated using the supplied calibration weight and by pushing a button. Whenever in doubt about the actual amount of pressure on the diamond tip the 4 digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced.

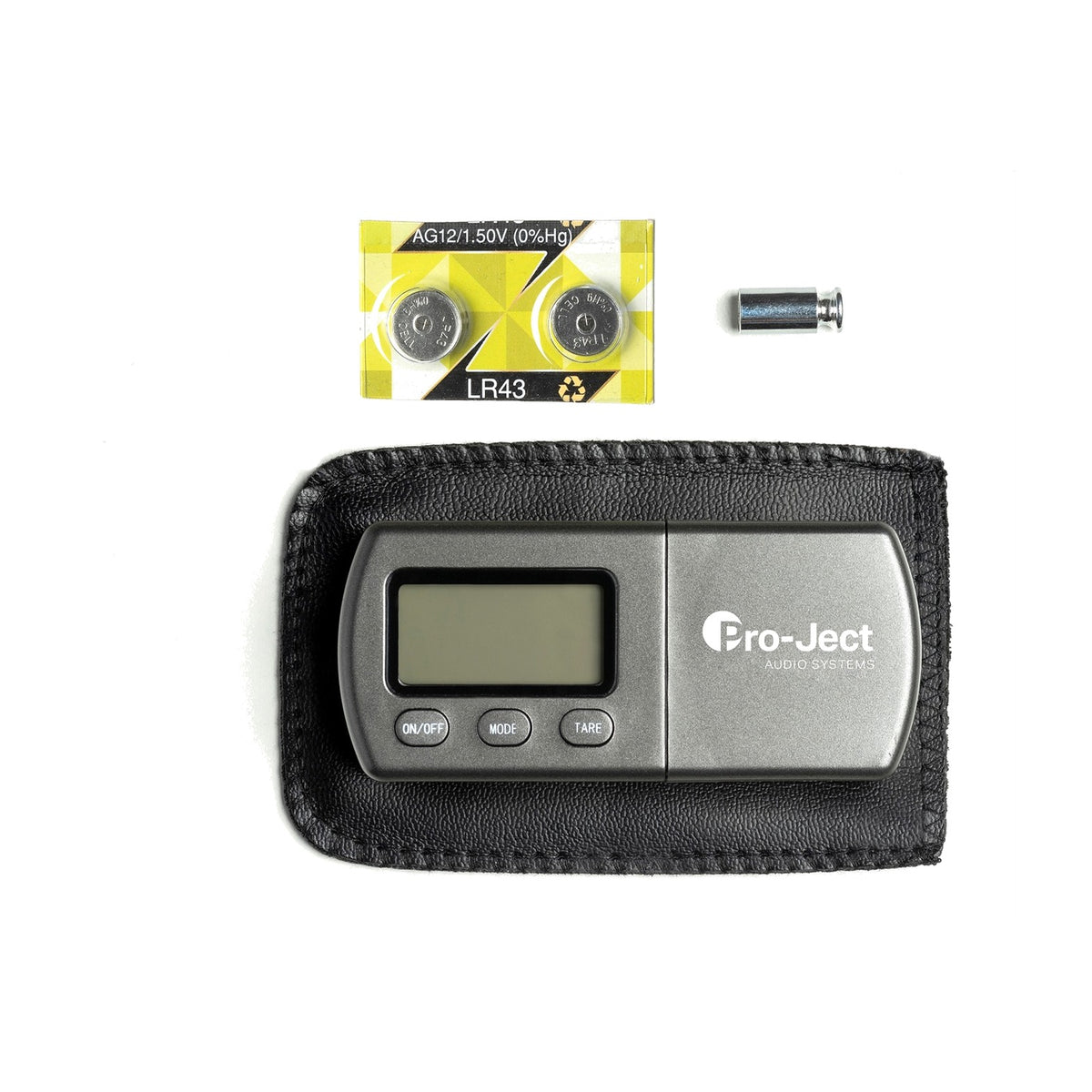

Scope of delivery:

• stylus balance
• calibration weight (5 g)
• 2x LR43 (AG12) button cell batteries + 2 pieces as backup
• protection pouch for the meter
• user guide

Features

• 4 digit LCD display with backlight
• 4 weighing modes
• Wide capacity 0 - 5g
• Calibration weight
• Precision data readouts with low variance
• Auto calibration function
• Auto power off after 30 seconds
• Low power consumption
• Button cell batteries included

Technical Specifications

• Capacity: 0 - 5g
• Variance: ±0,01g
• Weighting modes: gram (1g = 10mN), ounce (oz), pennyweight (dwt) & carat (ct)
• Display: 4 digit LCD with backlight
• Calibration: auto calibration using a 5g weight
• Auto off: 30 seconds off
• Replacement battery: 2 x LR43 (AG12) button cells, 1,5V
• Operating temperature: +10 - +30° C (50 - 86 degrees Fahrenheit)
• Dimensions (W x H x D): 96 x 21 x 43mm
• Weight: 49g
