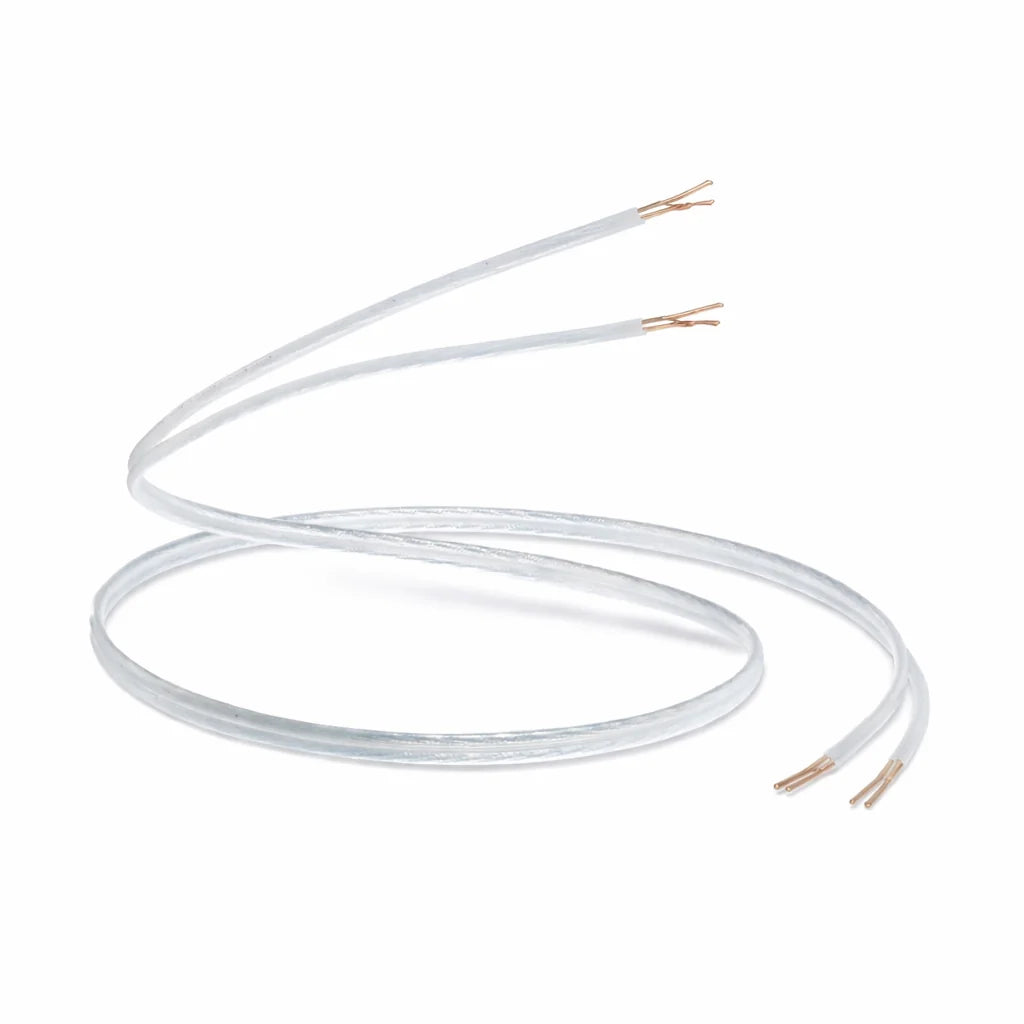

QED XT25 1m Cut from Spool Speaker Cable without Connectors

PERFORMANCE XT25 - Sold by the Metre

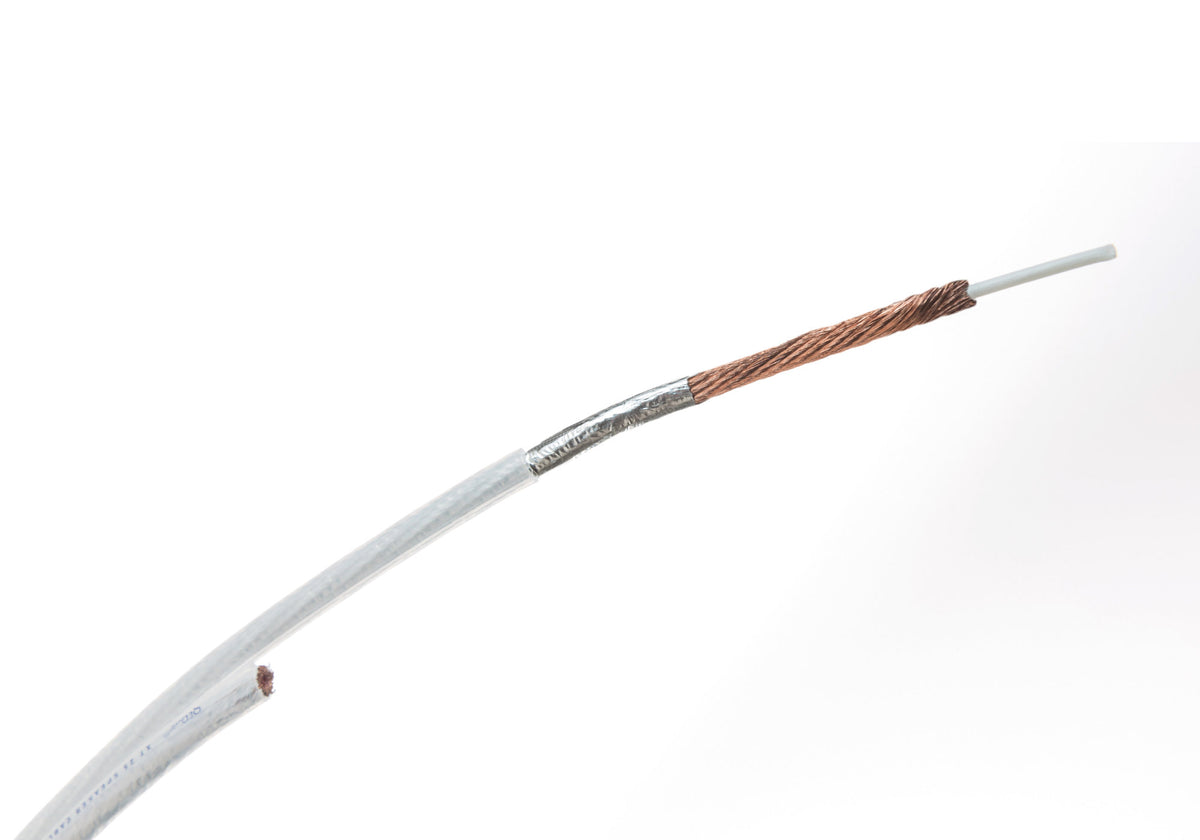

With XT25, QED tackles the proximity effect and the skin effect by combining the existing Aircore™ and X-Tube™ Technologies into a new X-Tube™ variation. By forming the conductors into a tube-like shape with a hollow centre, current densities at higher frequencies are maintained, because the electric field which contributes towards the skin effect acts towards the centre of the conductor from where the conductive material has been removed.

This bulk cable is sold by the metre, without pre-fitted plugs, so it can be cut to length and terminated to suit any installation.

Key Features:

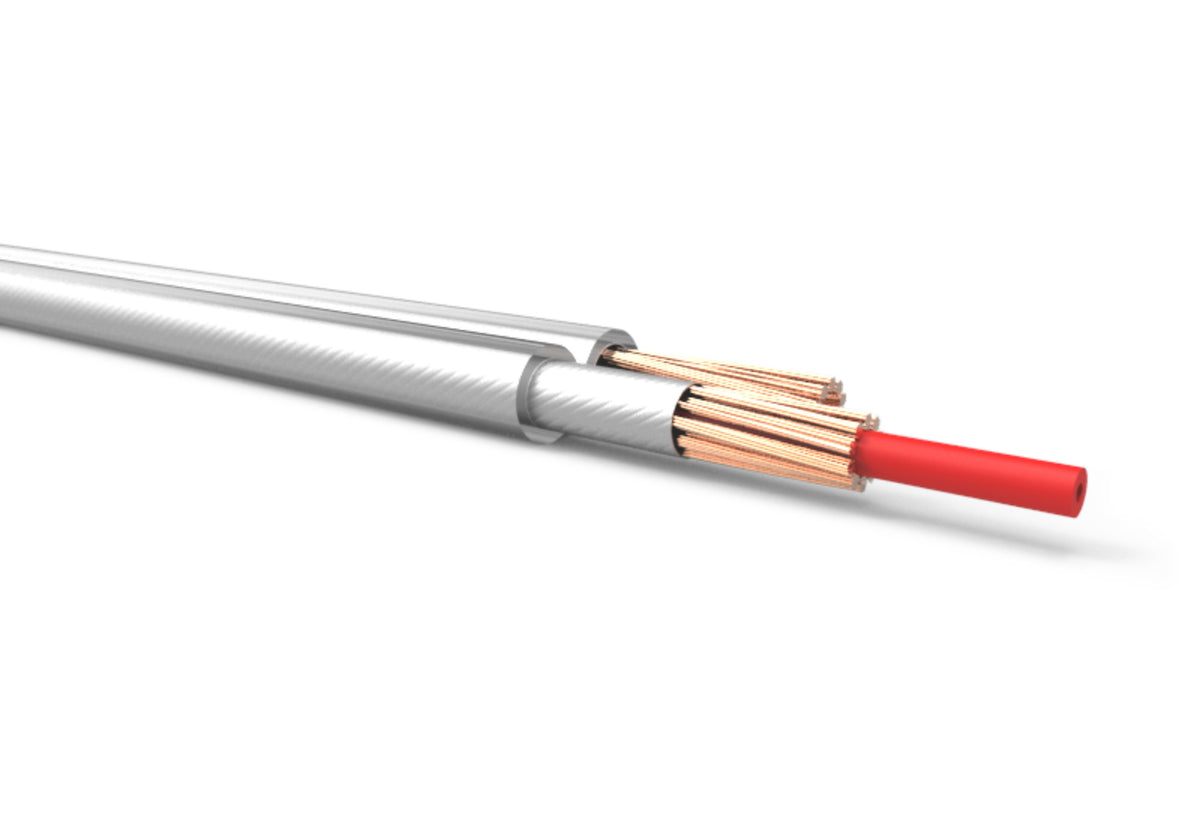

- X-Tube™ Technology - creates a hollow tubular conductor geometry out of individual conductor bunches, so each frequency passes with equal ease compared to traditional solid or stranded conductors
- Low-Loss Dielectric - uses low-loss materials such as Polyethylene (PE) or Teflon™ (PTFE) in preference to cheaper PVC alternatives found in inferior unbranded cables
- Sold by the metre for professional or individual termination as needed

Used for:
Connects your AV Amplifier or Receiver to your Speakers

Specifications:
Cross-sectional area - 2.5 mm²
Wire gauge - 14 AWG
Stranded diameter - 2.10 mm (min)
Jacket outside diameter - 3.96 mm
Loop inductance - 0.52 μH/m
Loop resistance - 13.4 mΩ/m
Capacitance - 35.0 pF/m
Dissipation factor @ 10kHz - 0.0001
Conductors - 10 x 19/0.13 mm
Insulation - LDPE jacket with 100% coverage of Aluminium Mylar tape wrap
Material - 99.999% oxygen-free copper
Sold - by the metre (unterminated)
