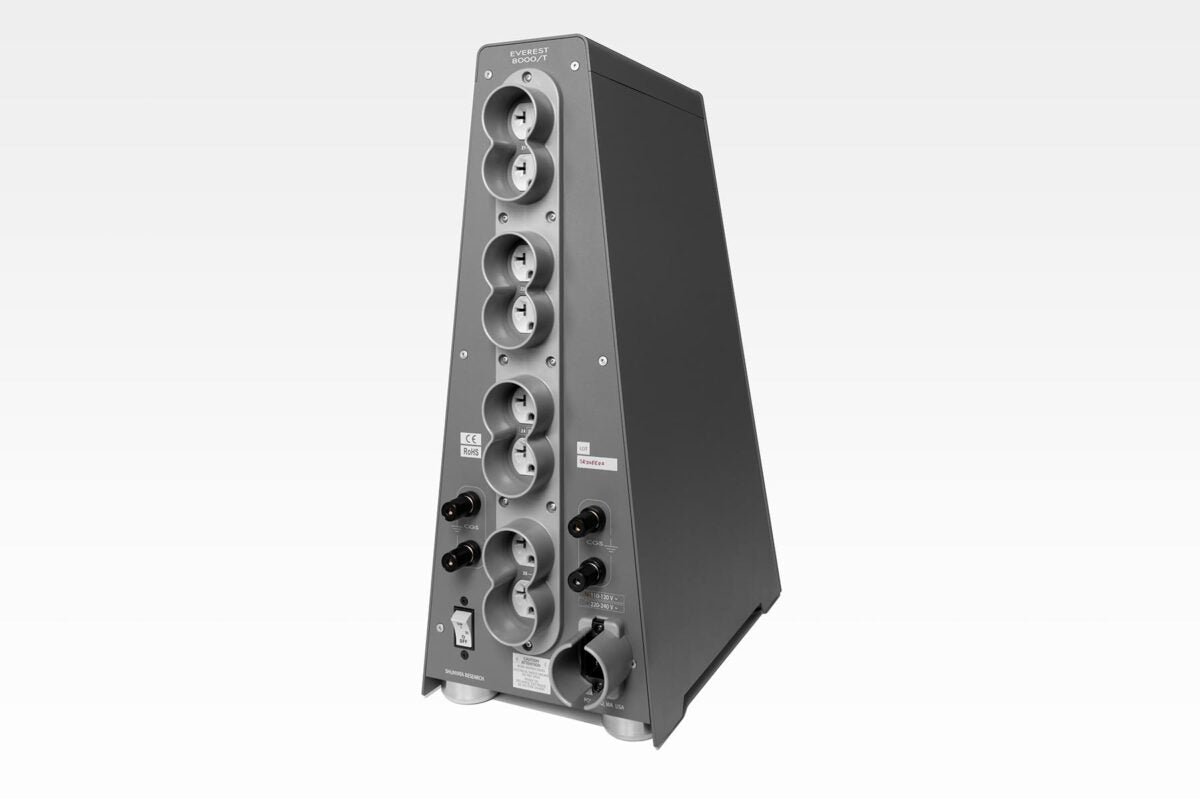

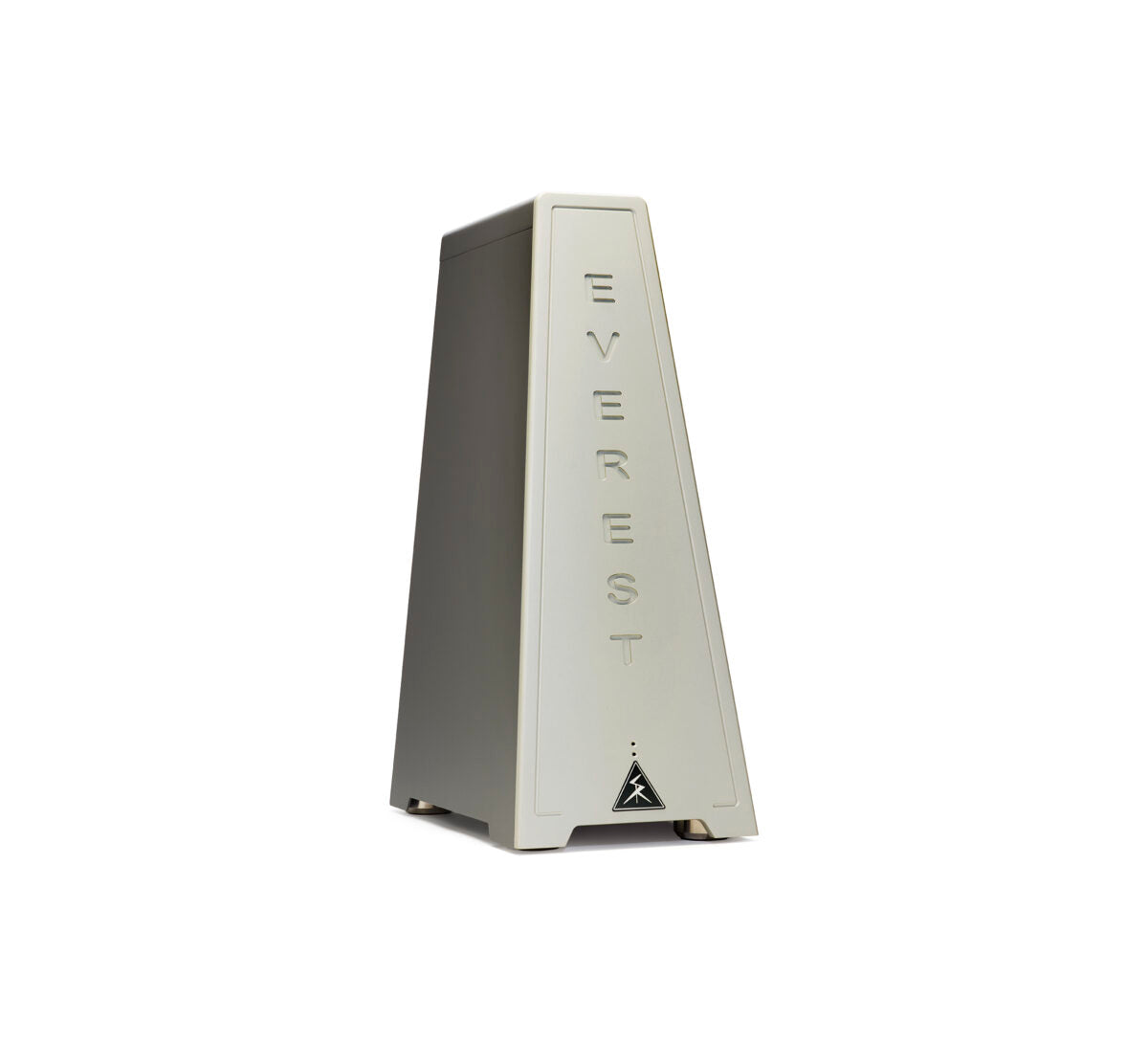

Shunyata Research Everest 8000 T (Like new) Power Distributor

Color: Silver

PD-EVE-E8/S-EU/240

The Everest 8000 combines the patented innovations of Shunyata Research's critically acclaimed Hydra Triton and Typhon with the transformative technologies used in medical devices.

From its stunning form-follows-function tower design to its inside-out engineering, the Shunyata Everest represents the pinnacle of development and achievement across multiple industries. Discover for yourself why designer Caelin Gabriel calls Everest the greatest engineering achievement of his career.

Maximum Voltage:
90-125 VAC rms unregulated (US)
220-240 VAC rms unregulated (UK, EU, AS, AU)

Input Current Ratings:
Maximum Continuous Current: 30A (US, AS)
Maximum Continuous Current: 16A (UK, EU, AU)

Output Current Ratings:
Max Current/Outlet: 20A (US, AS)
Max Current/Socket: 16A (EU, AU)

Transient Suppression:
Maximum Transient Protection: 40,000 A @ 8/50 μs

Over-Current Protection:
Hydraulic Electromagnetic Breaker

Wiring System:
8 gauge ArNi® VTX™ Buss System
10 gauge ArNi® VTX™ Wiring

Ratings: 600 V 105° C

Noise Suppression:
Input to Output (100 kHz - 30 MHz): > 50 dB reduction
Zone to Zone (100 kHz - 30 MHz): > 60 dB reduction

Outlets & Connectors:
Zones of Isolation: 6 Zones
Inlet: IEC C19R

US Outlets: 8 NEMA5-20R
AS Outlets: 8 NEMA 5-20R
UK Outlets: BS-1363 (3 pin)
EU Sockets: 8 CEE 7/3
AU Sockets: 8 AS/NZS 31123

Vibration Control:
Vibration dampening panels (internal)
AC outlet dampening gaskets
Shunyata Isolation SSF-50 Footer

Construction:
Aluminum and steel chassis
Anodized, aluminum faceplate

GPNR:
Length: 127mm
Diameter: 38mm

Dimensions:
Width: 8.0 inches (20.32 cm)
Depth: 14.75 inches (37.47 cm)
Height: 20.75 inches (52.71 cm)
Weight: 34 lbs (16 kg)
