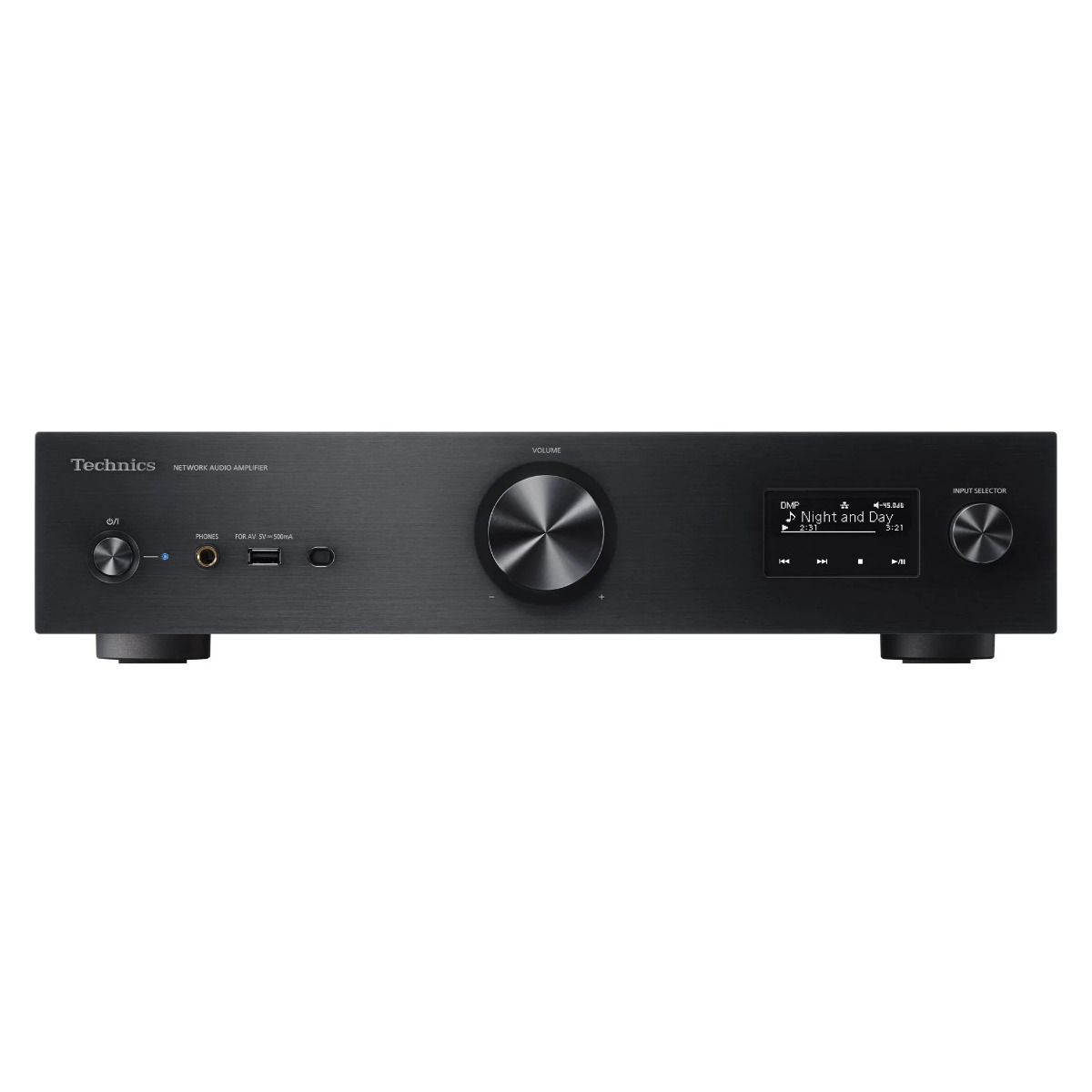

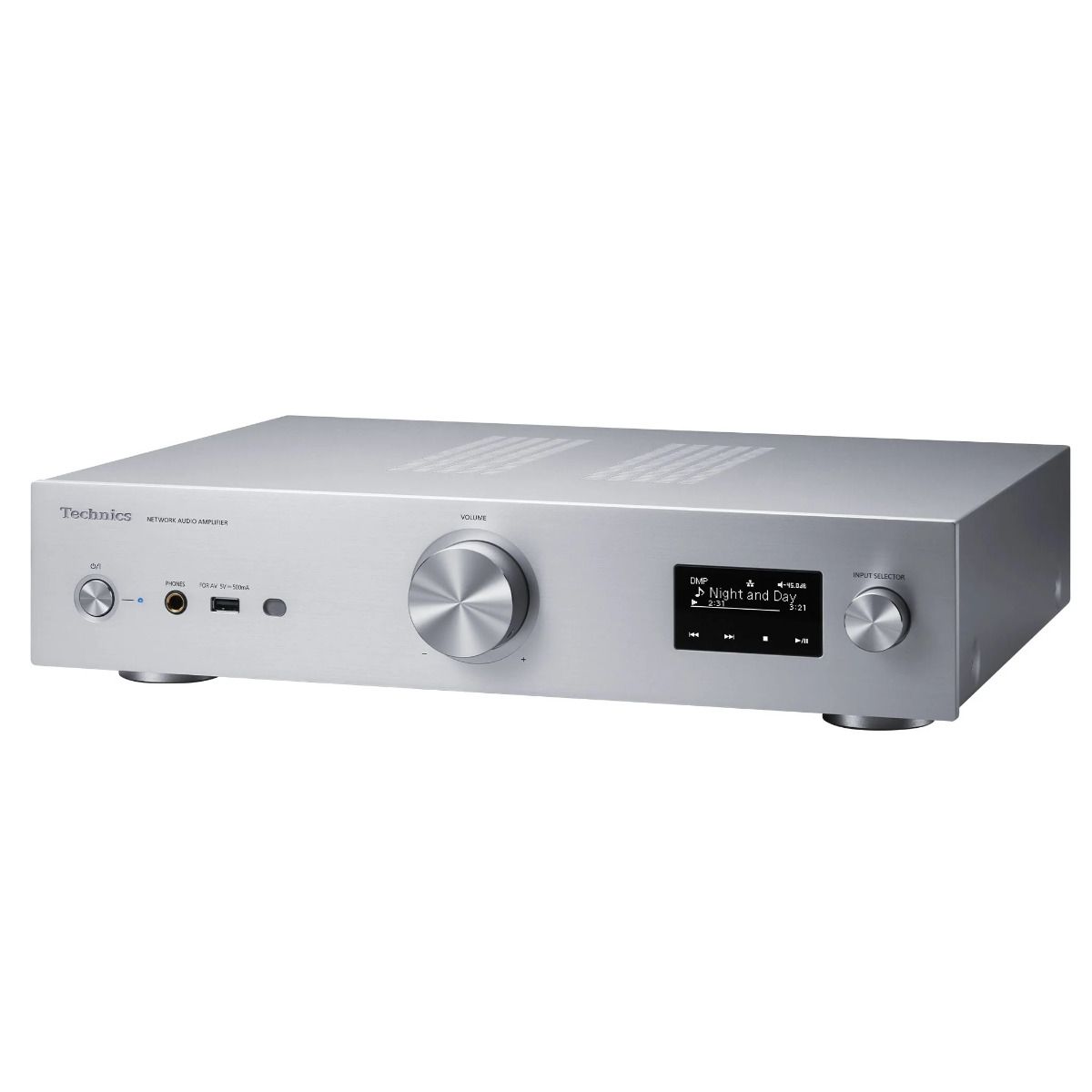

Technics SU-GX70 Network Streaming Audio Amplifier

Grand Class Network Audio Amplifier, the center of living room

The definitive living room audio center that enables seamless enjoyment of video, audio, and music through next-level integration using Technics’ full digital technologies.

Unique Speaker & Room Calibration Features Only Available from Technics

Space Tune™ for Optimal Adjustment of Sound Quality
Space Tune™ enhances your audio experience by optimizing sound space to match your specific listening environment. It offers four convenient presets — Free, Wall, Corner and In a shelf — so you can easily adjust the settings to fit your room layout and installation location. For even more precise control, you can select “L/R Custom” in the Technics Audio Center app, which allows you to fine-tune the sound based on your exact listening position, ensuring the best possible audio quality wherever you are in the room.

Load Adaptive Phase Calibration (LAPC)
Speaker impedance changes with different frequencies, which can make it challenging for traditional amplifiers to deliver consistent sound quality. This issue is even more pronounced in digital amplifiers due to the use of low-pass filters, which can further impact performance. To solve this, we created a speaker impedance adaptive optimization algorithm. Just you run the "LAPC Measurement Process" with your remote control, then the technology will measure the frequency and phase characteristics of the amplifier connected to your speakers and it will digitally correct them in real-time. The result is a smoother, more balanced sound with enhanced spatial depth and clarity, giving you a richer listening experience.

Full Digital Amplifier, JENO Engine
The SU-GX70 features a fully digital amplifier with Technics' advanced digital audio technology, processing signals digitally from input to output. This minimizes signal degradation from external noise, delivering precise, high-resolution sound while preserving the warmth of analogue recordings. Additionally, the JENO Engine in the HDMI ARC (Audio Return Channel) reduces jitter, ensuring crystal-clear TV audio.

High-quality Audio through Low-impact HDMI Video Output
To ensure the SU-GX70 delivers the best possible sound when using HDMI ARC, video signals must be sent first, which can sometimes cause noise. To prevent this, the SU-GX70 outputs video signals at a lower rate with pixel colors set to zero, reducing noise and protecting sound quality. Additionally, the signals are transmitted from the TV to the JENO Engine via the shortest possible route, minimizing any jitter and ensuring crystal-clear audio. This unique approach by Panasonic/Technics as HDMI licensors guarantees you enjoy the highest sound quality with minimal interference.

Pure Amplification Mode for Even Less Noise
In Pure Amplification Mode, the SU-GX70 enhances your listening experience by turning off the power supply to the network and HDMI circuits. By doing this, it eliminates any potential noise from these components or the antenna, allowing the amplifier to focus solely on delivering your music. This results in even clearer, more detailed sound quality, letting you enjoy your music with the highest level of purity and precision.
*Network and HDMI circuits can also be individually shut off.

Twin Power Supply Circuit System
The design of the power supply is extremely critical in audio systems containing amplifiers, digital circuits and other such components. To eliminate any adverse effects on the amplifier, the SU-GX70 is equipped with a dedicated power supply for the power amplifier circuits that is independent from all other circuits. As such, the same electrolytic capacitors installed in high-end models have been used in the dedicated amplifier power supply and the power amplifier components.

The SU-GX70 uses a high-speed switching power supply of approximately 130 kHz. By increasing the switching frequency, noise interference on the music playback bandwidth is reduced. This enables highly responsive power supply for music signals and powerful speaker drive capability.

Top-quality audio components for pure audio experience.
The SU-GX70 uses a redesigned amp circuit inspired by the high-end SU-R1000, featuring the same symmetrical layout for optimal performance. We've also included top-quality audio components like low-noise FETs, thin-film resistors, and premium capacitors, just like in the SU-R1000. This attention to detail ensures the SU-GX70 delivers exceptional sound quality, giving you a exceptional audio quality.

Specs

Space Tune™ for Optimal Adjustment of Sound Quality

Load Adaptive Phase Calibration (LAPC)

Full Digital Amplifier, JENO Engine

High-quality Audio through Low-impact HDMI Video Output

Pure Amplification Mode for Even Less Noise

Twin Power Supply Circuit System

Size and Weight
Height
98mm
Width
430mm
Depth
368mm
Weight
6.6kg

Output Power
40W+40W(1kHz,T.H.D.1.0%,8Ω,20kHz LPF)
80W+80W(1kHz,T.H.D.1.0%,4Ω,20kHz LPF)
Load Impedance
4Ω-16Ω
Frequency Response
PHONO (MM)
20Hz - 20kHz ( RIAA DEVIATION ±1dB, 4Ω )
LINE
20Hz - 40kHz ( -3dB, 4Ω )
DIGITAL
20Hz - 80kHz ( -3dB, 4Ω )
Input Sensitivity / Input Impedance
PHONO (MM)
2.0 mV / 47 kΩ
LINE
200 mV / 23 kΩ

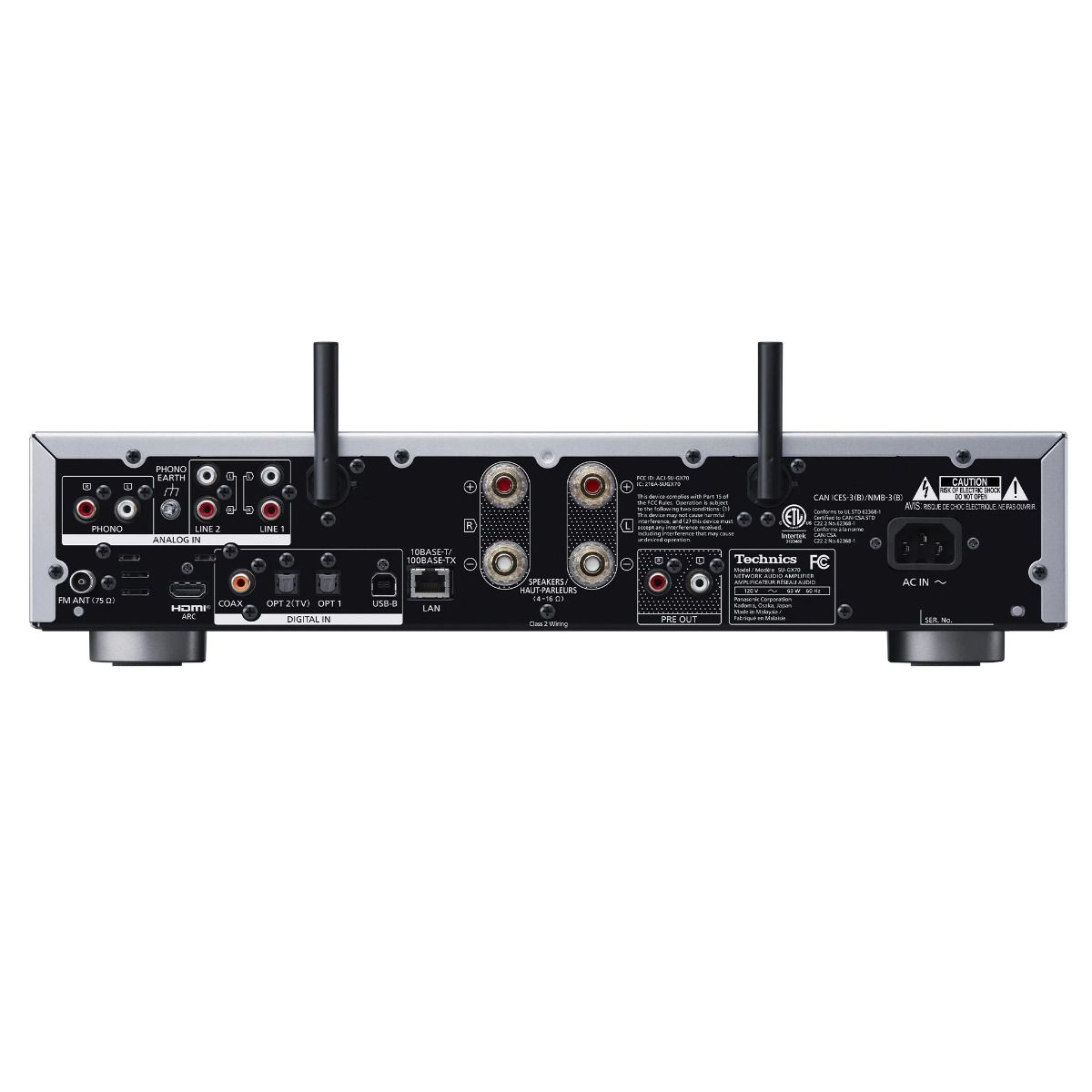

Analogue Input Terminal
LINE x 2
PHONO (MM) x1
Digital Input Terminal
Optical digital x2
Coaxial digital x1
USB-A x1
USB-B x1
Analogue Output Terminal
PRE OUT x1
Digital Output Terminal
HDMI ARC
Headphone Output
Yes, Stereo Φ6.3 mm
USB-A
USB Audio Class Specification
USB 2.0 High-speed
USB Mass Storage class
iPod/iPhone/iPad
No
Support Codec
WAV
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
FLAC
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
DSD
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
AIFF
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
ALAC
Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
AAC
Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
MP3
Yes (32, 44.1, 48 kHz / 16-320 kbps)
PC(USB-B)
USB Audio Class Specification
USB 2.0 High-speed
USB Audio Class 2.0, Asynchronous mode
Support Codec
LPCM
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 352.8, 384 kHz / 16, 24, 32 bit)
DSD
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
DSD contol mode
ASIO Native mode, DoP mode
MQA Decorder
Yes
LAN(DMR)
WAV
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
FLAC
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
DSD
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
AIFF
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
ALAC
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
AAC
Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
MP3
Yes (32, 44.1, 48 kHz / 16-320 kbps)
Ethernet Interface
LAN (100BASE-TX/10BASE-T)
Wi-Fi
IEEE 802.11a/b/g/n/ac/ax
2.4 GHz band / 5 GHz band
Google Cast™
Yes
AirPlay 2
Yes
Bluetooth® (Support codec)
Yes (AAC, SBC)
Tuner
DAB/DAB+/FM
Power Supply
AC 220 V - 240 V,50/60 Hz
Power Consumption
63W
Dimensions (W x H x D)
430 mm × 98 mm × 368 mm
Weight
Approx. 6.6 kg
Accessories
AC Cord, DAB Indoor Antena, Remote Control, Batteries for Remote Control, Owner's Manual
