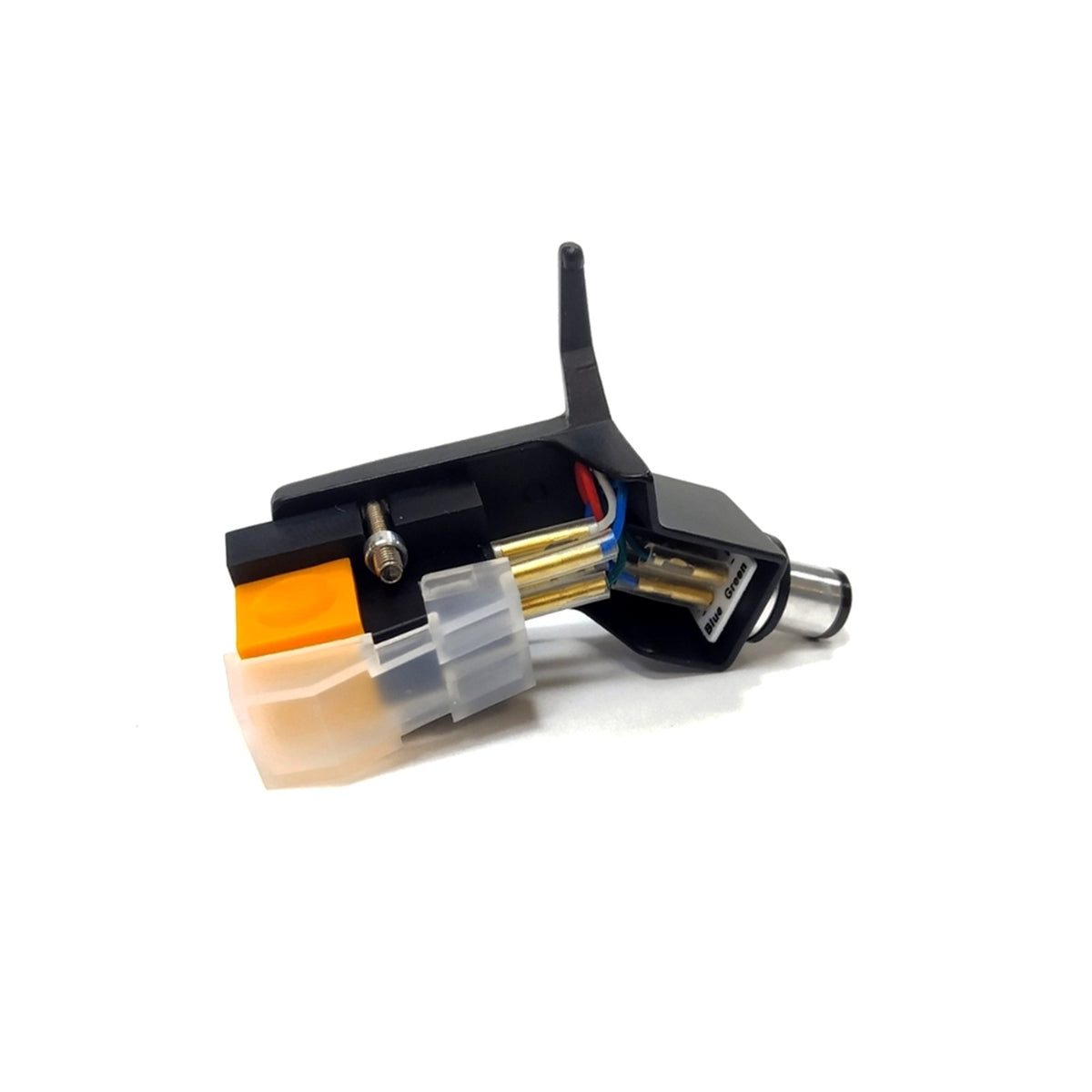

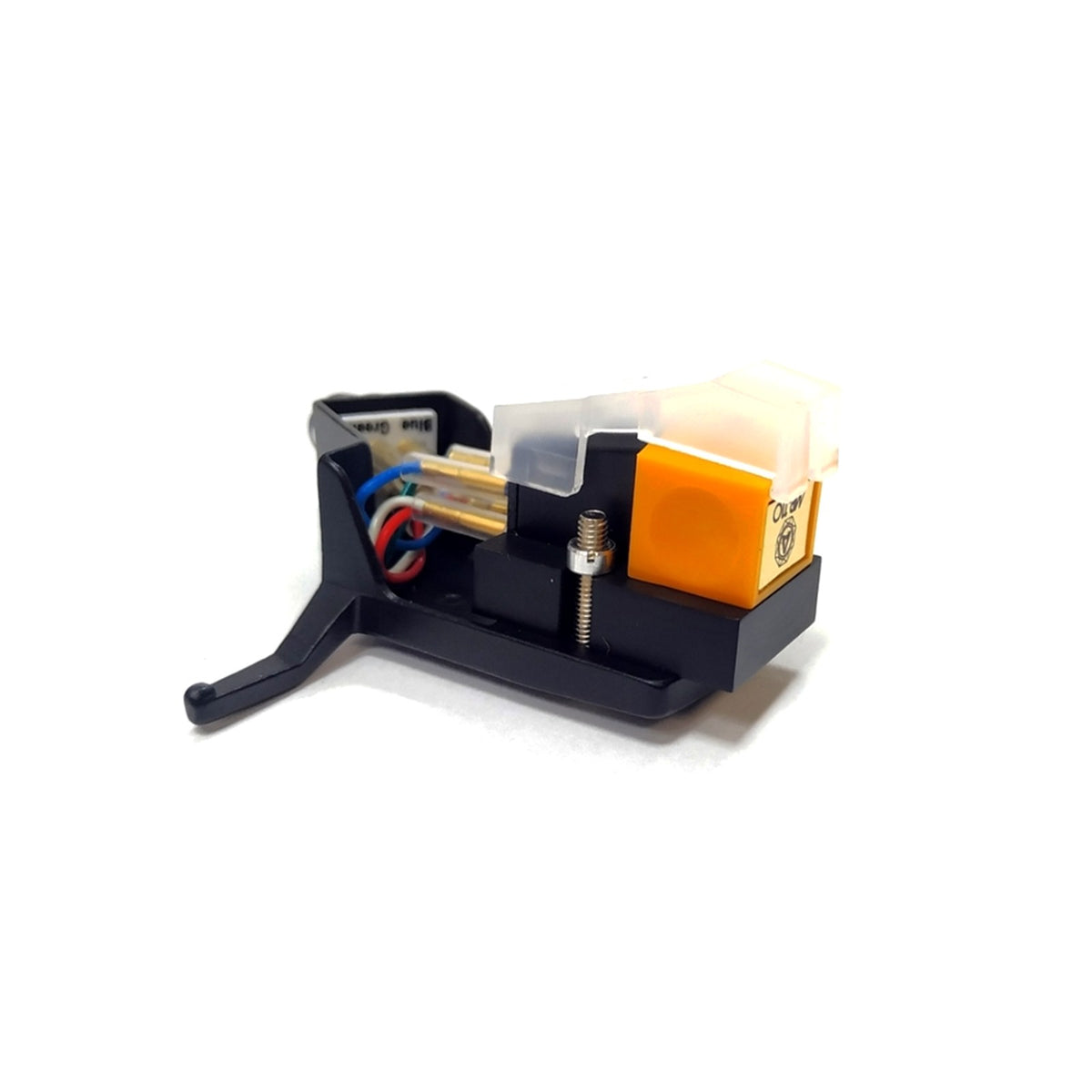

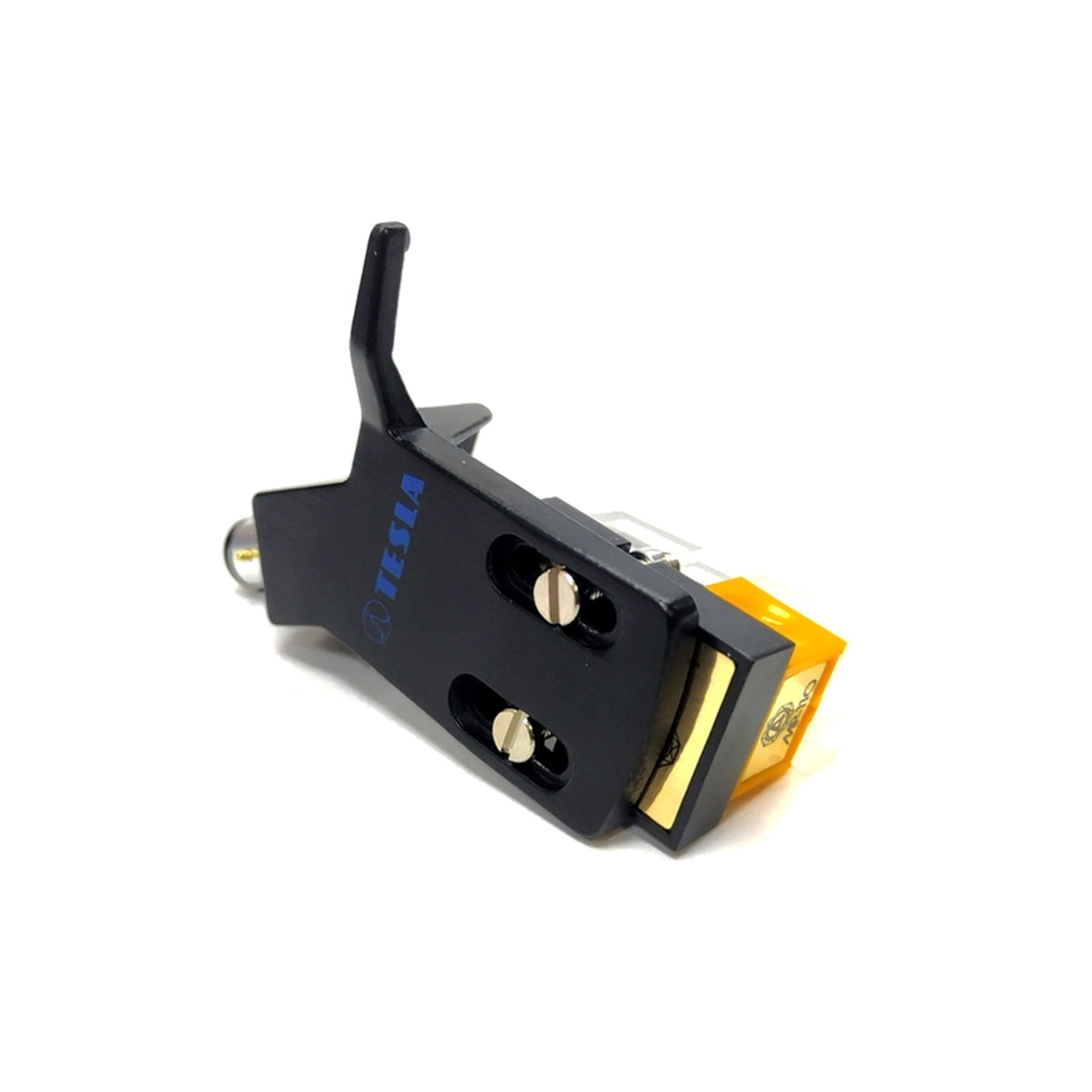

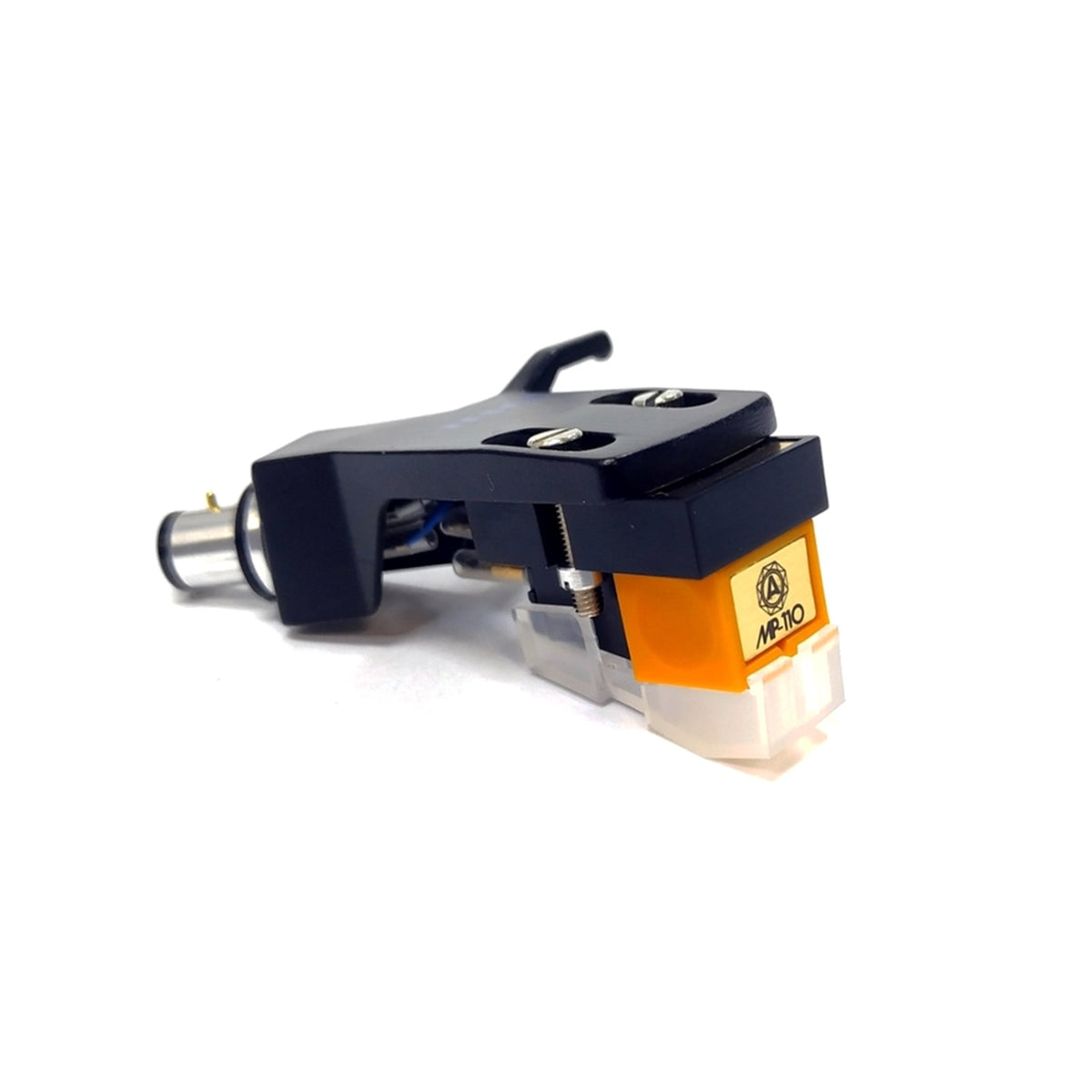

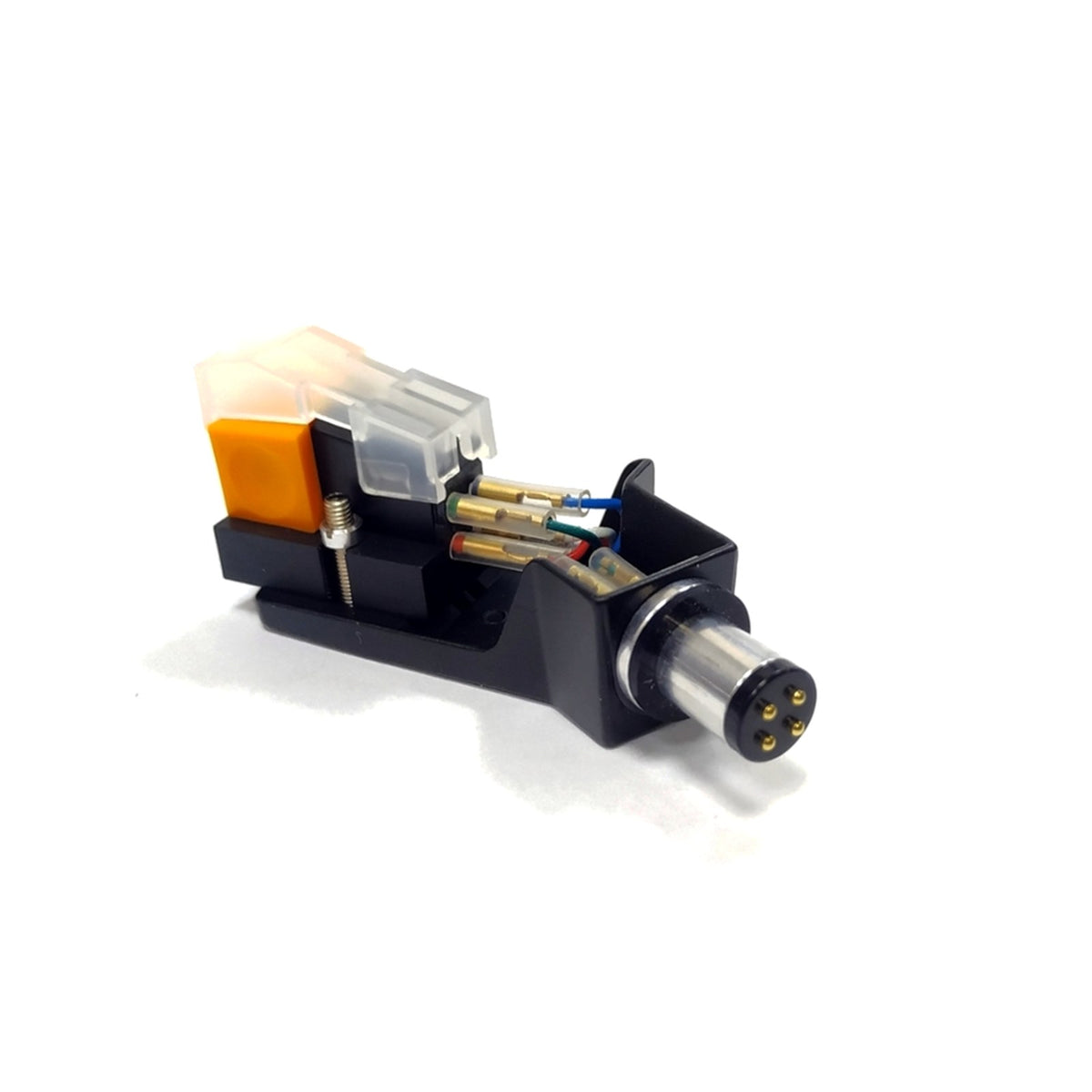

TESLA Headshell Black with Nagaoka MP-110 Cartridge

SET TESLA + NAGAOKA

A set consisting of a Nagaoka MP-110 cartridge pre-installed on a high-quality TESLA headshell for easy swapping on straight tonearms.

A high-quality die-cast all-metal TESLA headshell made of the special ALUElektron alloy.

ALUElektron is an alloy of 90 % magnesium and 10 % aluminium with additions of zinc and manganese, used in engineering as a material for precision die casting.

Black anodised aluminium finish with the standard half-inch mounting (12.7 mm spacing), including high-quality OFC lead wires for connecting the cartridge.

Main features:

• high-quality rigid headshell for most straight tonearms on the market with 1/2" mounting and SME connector
• ergonomic design with a long finger lift for easy cueing
• rigid anti-vibration construction
• suitable for turntables from DUAL, THORENS, LENCO, RELOOP etc.
• high-quality oxygen-free OFC copper lead wires included

Headshell weight: 10.0 g

NAGAOKA MP-110 CARTRIDGE

• NAGAOKA is the world's largest maker of diamond styli for cartridges, with around 90 % of the world market
• NAGAOKA is a synonym for beautiful, warm sound with crystal-clear highs
• The NAGAOKA MP-110 is the successor of the legendary MP-11
• The NAGAOKA MP series is one of the most acclaimed cartridge ranges in the world, as shown by its longevity reaching back to the 1970s

Nagaoka makes MM cartridges exclusively (MM and MI motors) and has brought them to technological perfection with 100 % quality control of every component. Their cartridge series combines the simplicity of an MM cartridge with the musicality and tonal accuracy of MC cartridges. To protect your investment, all cartridges have a replaceable stylus.

All Nagaoka cartridges use Nagaoka MI technology® (Moving Iron). This brings the high level of detail associated with more expensive Moving Coil (MC) systems while keeping the convenience of a replaceable stylus and the high output of Moving Magnet (MM) designs. The cartridge has a powerful samarium-cobalt magnet and high coil output, so a very light steel-nickel end piece can be used instead of the much heavier permanent magnet of conventional designs. This reduces the moving mass and lets the cantilever track the groove more faithfully. The MI system is fully compatible with MM phono preamplifiers. The result is high clarity and excellent tracking combined with the musicality and tonal accuracy of MC cartridges.

Nagaoka cartridges use only top-quality materials with special treatment: a carefully designed magnetic circuit, a precisely made cantilever and stylus, all 100 % developed and made in Japan by Nagaoka. The result is a superb sound so far typical only of much more expensive MM and MC cartridges.

The cartridge is made of special materials that reduce unwanted vibration to a minimum:

• Nagaoka MI technology® with precise and fast response to the groove wall
• Superfine polished elliptical diamond stylus
• Powerful samarium-cobalt magnet
• Lightweight aluminium-alloy cantilever for high fidelity
• Square body for easy alignment in the headshell
• Very high purity OFC copper coils
• Carbon fibre reinforced cartridge body
• Anti-ferromagnetic permalloy shield (protects against electromagnetic interference)
• Easy stylus replacement

Specifications:

• Type: Moving Magnet (MM) compatible
• Principle: Nagaoka MI technology® (Moving Iron)
• Mounting: 1/2"
• Stylus: superfine polished elliptical diamond (0.4 x 0.7 mil)
• Magnet: samarium-cobalt
• Output voltage: 5 mV (1 kHz, 5 cm/s)
• Frequency range: 20 Hz – 20 kHz
• Channel balance (1 kHz): < 1.5 dB
• Channel separation (1 kHz): > 23 dB
• Load impedance: 47 kΩ
• Load capacitance: 100 pF
• Dynamic compliance: 6 x 10⁻⁶ cm/dyn
• Static compliance: 18 x 10⁻⁶ cm/dyn
• Cartridge weight: 6.5 g
• Recommended tracking force: 1.5 – 2.0 g
