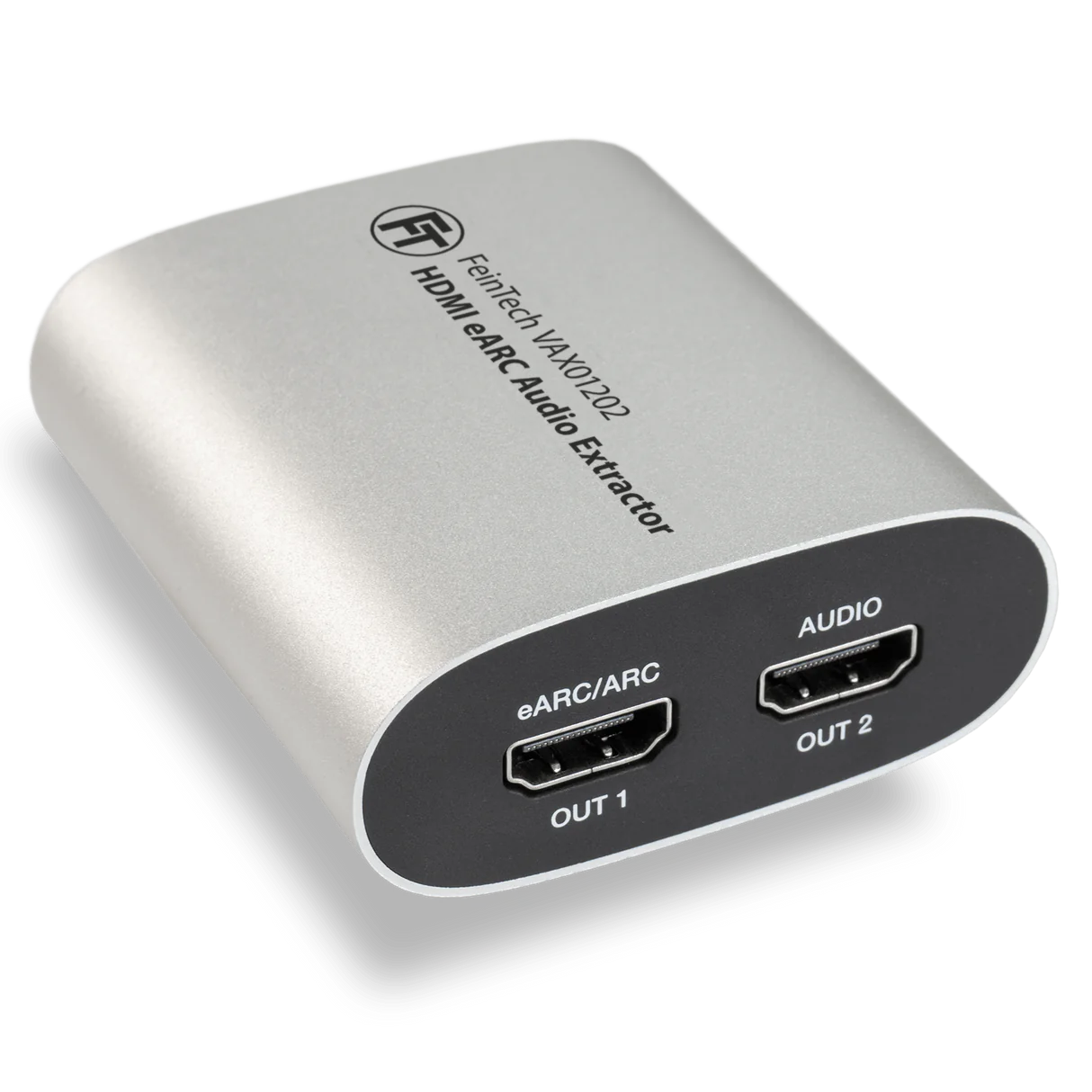

FeinTech VAX01202 HDMI eARC Audio Extractor & Splitter

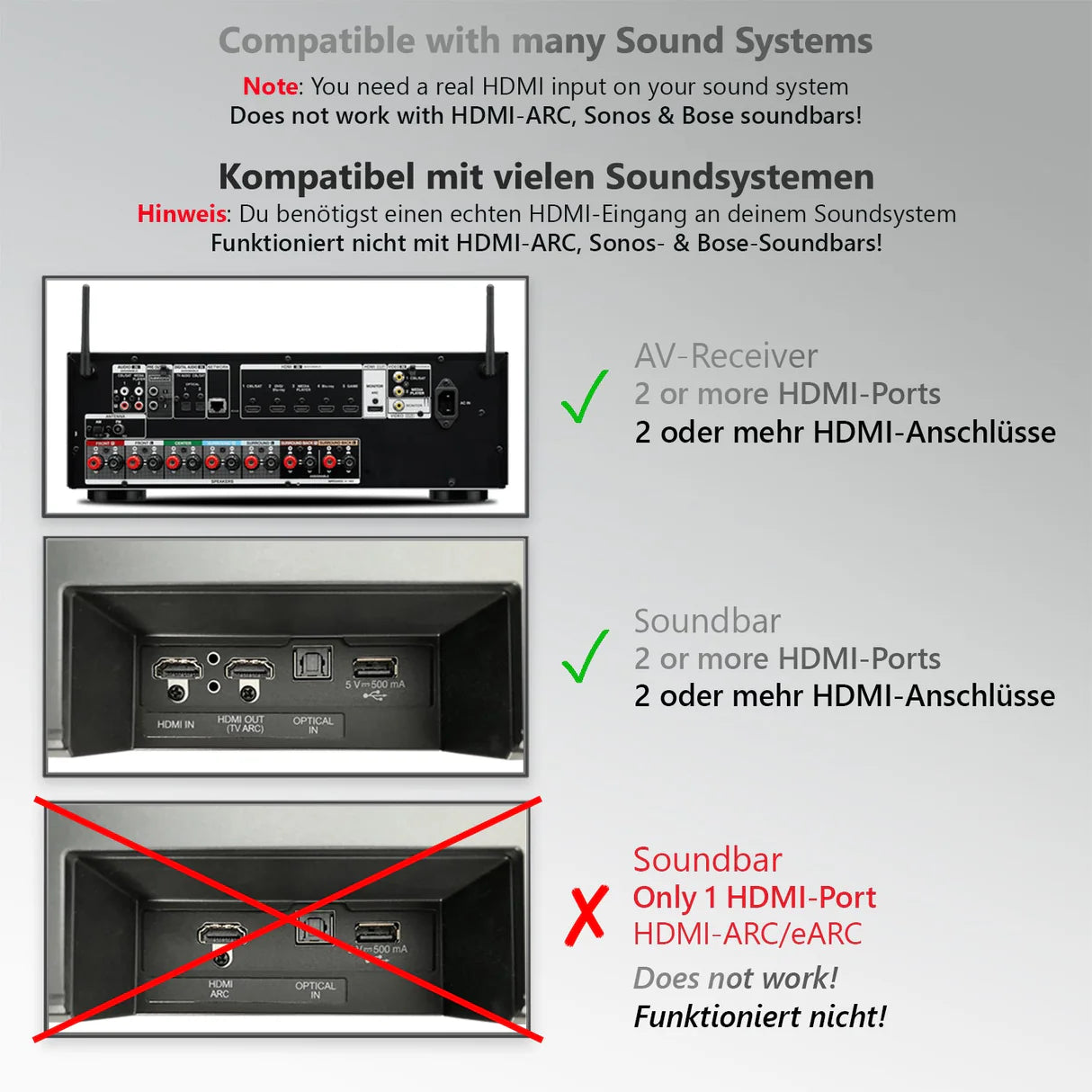

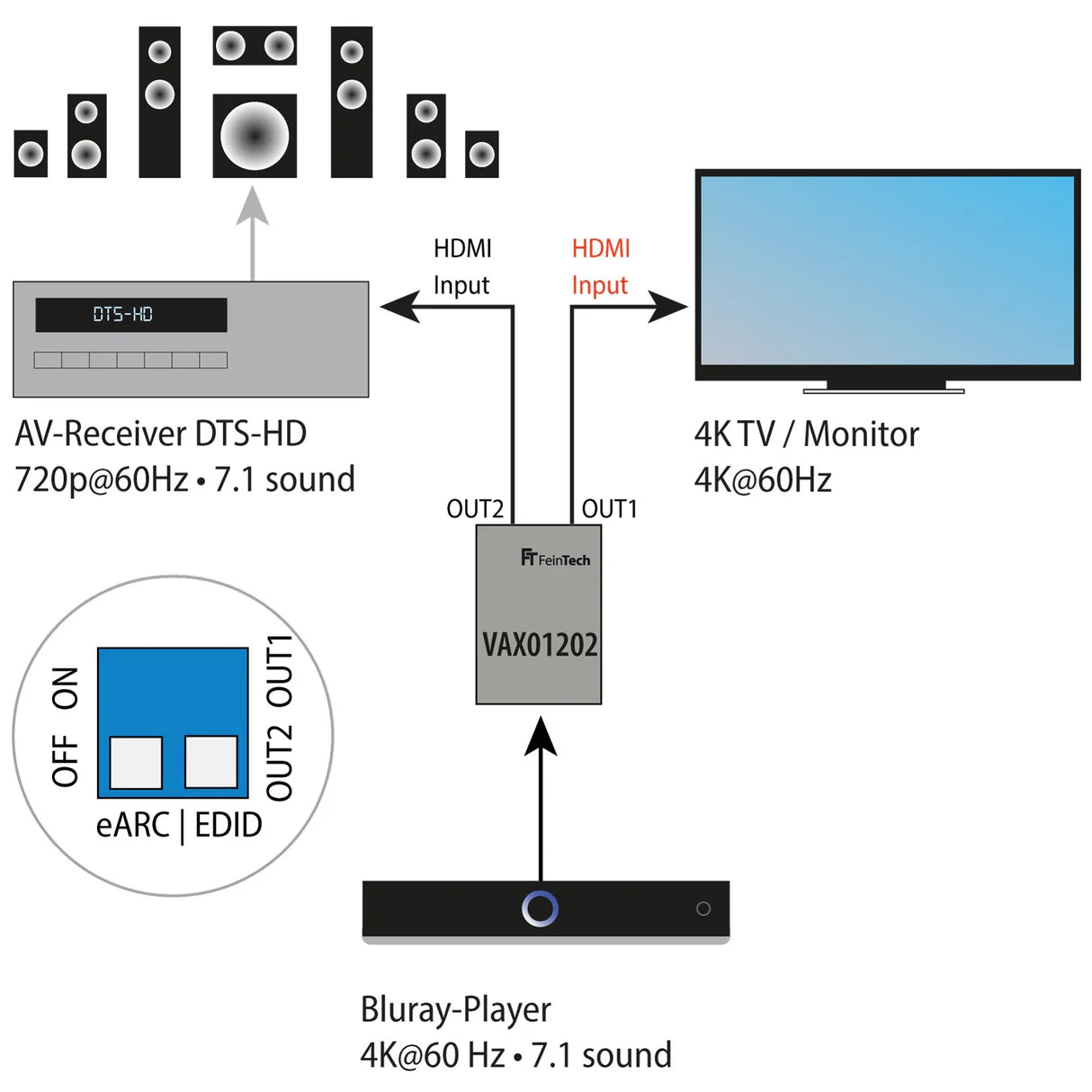

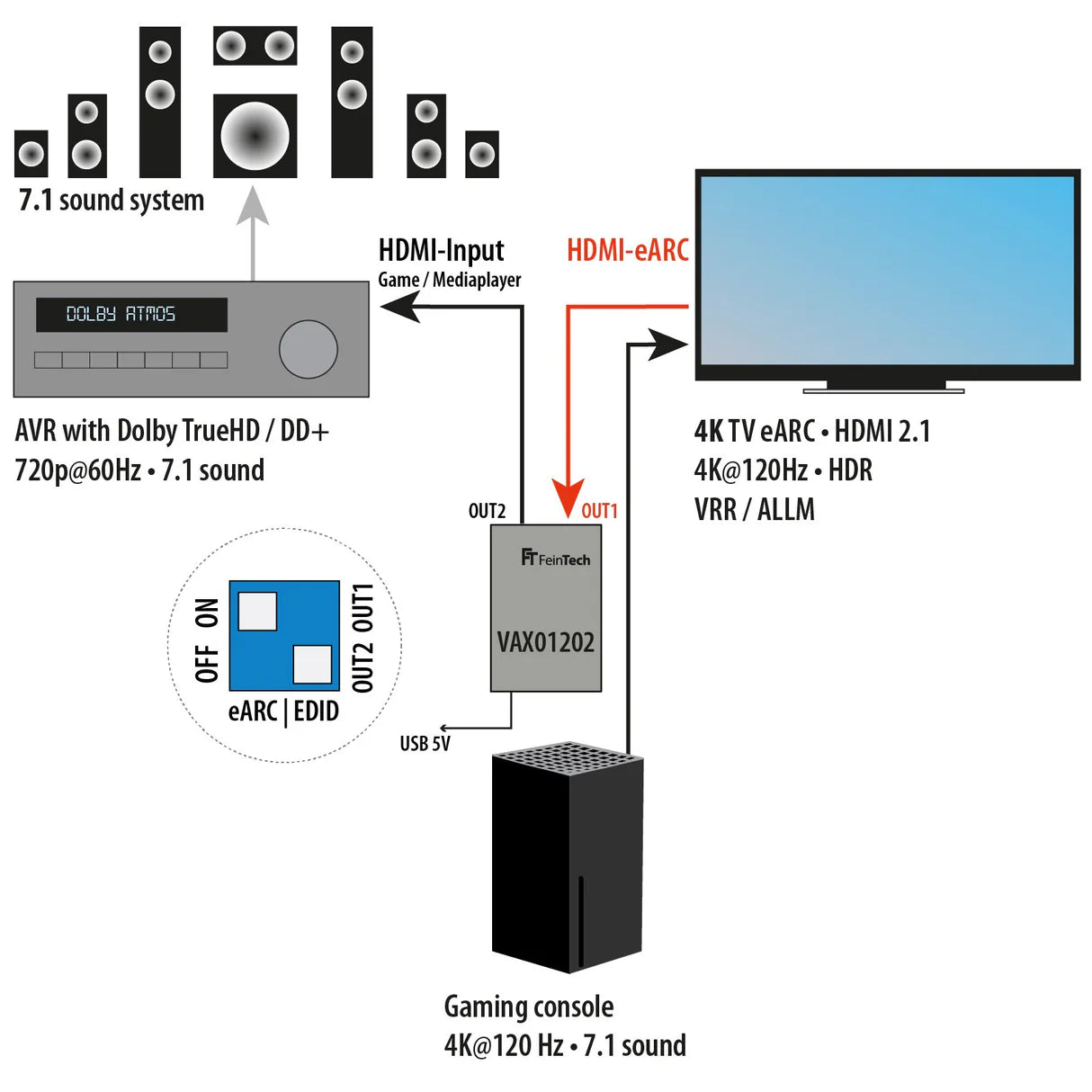

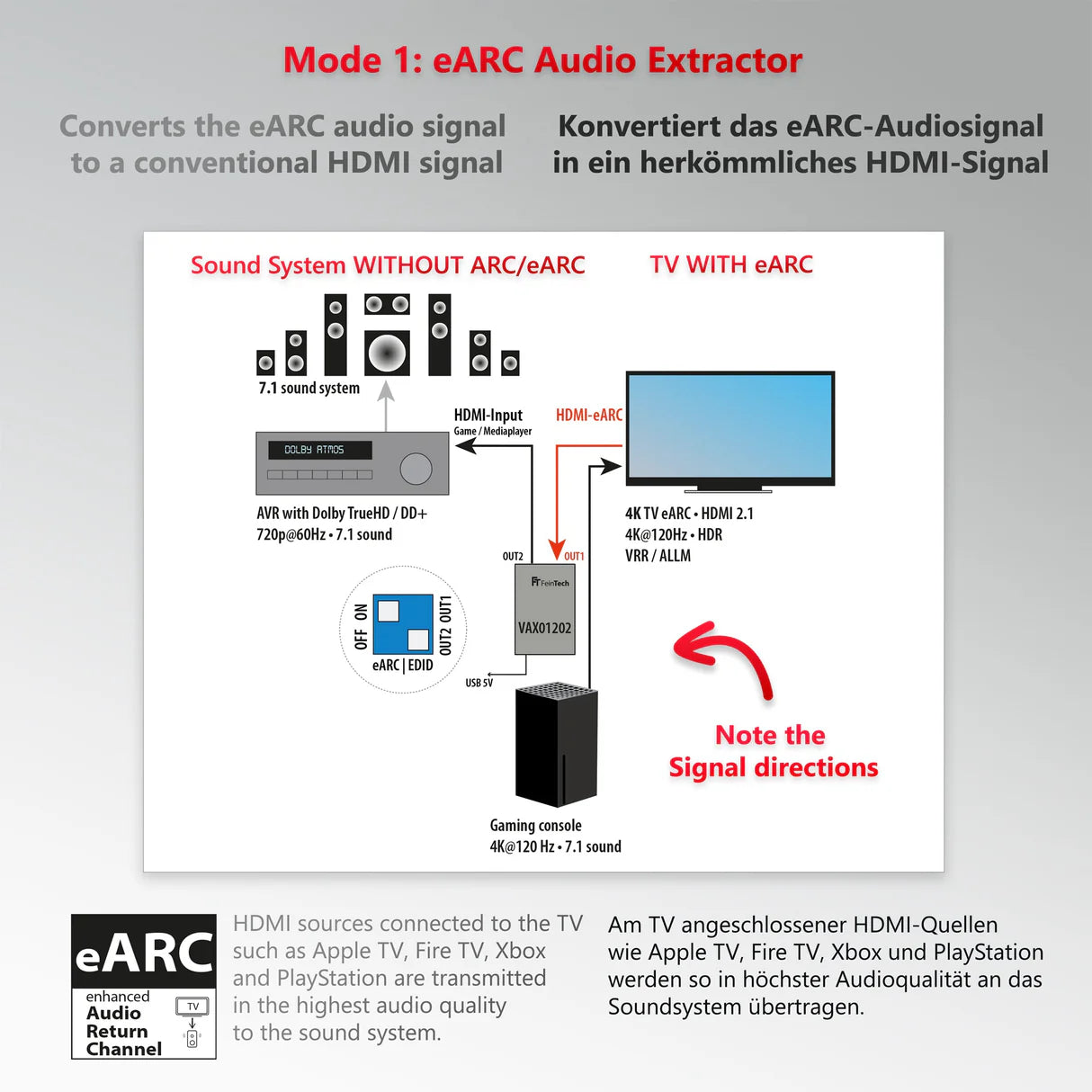

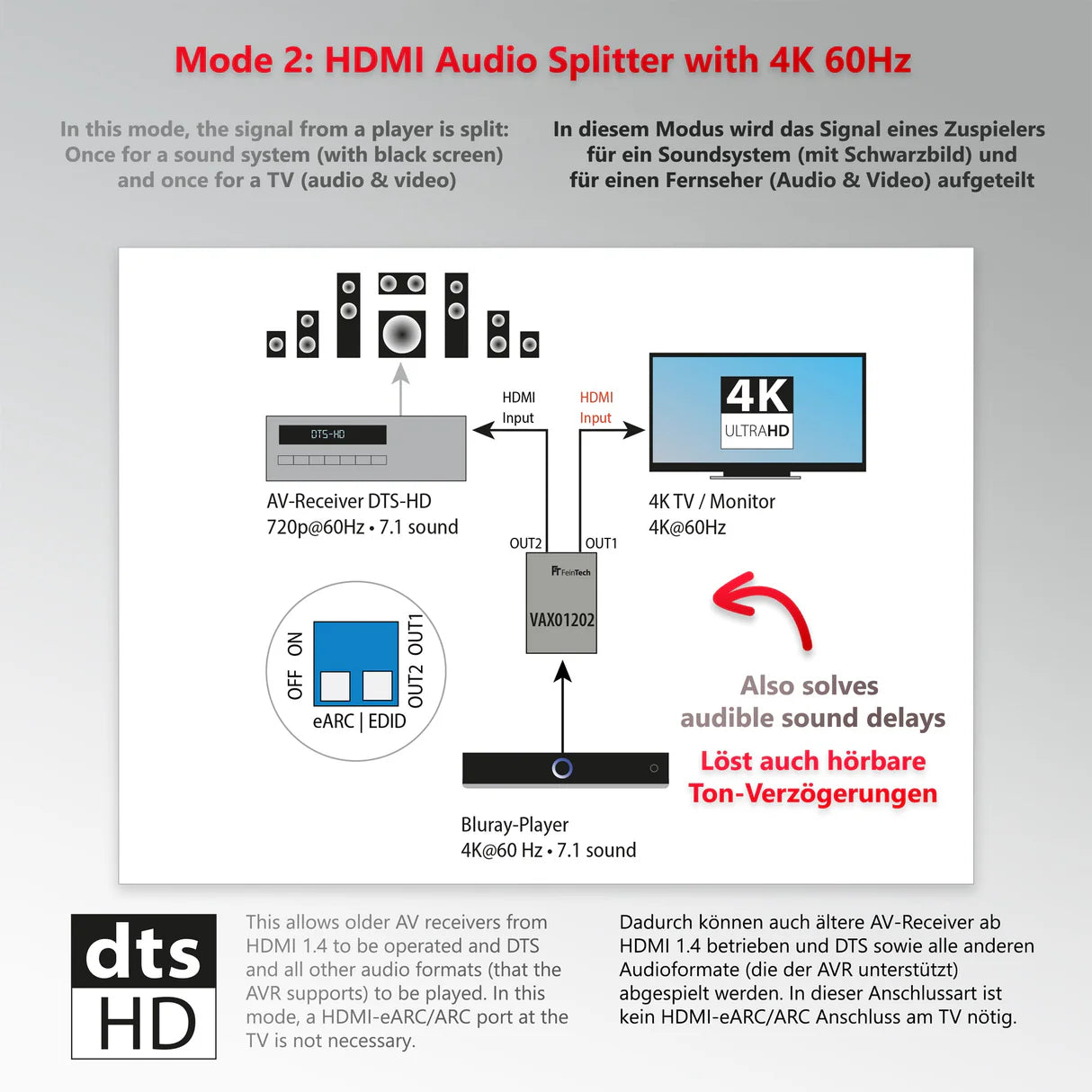

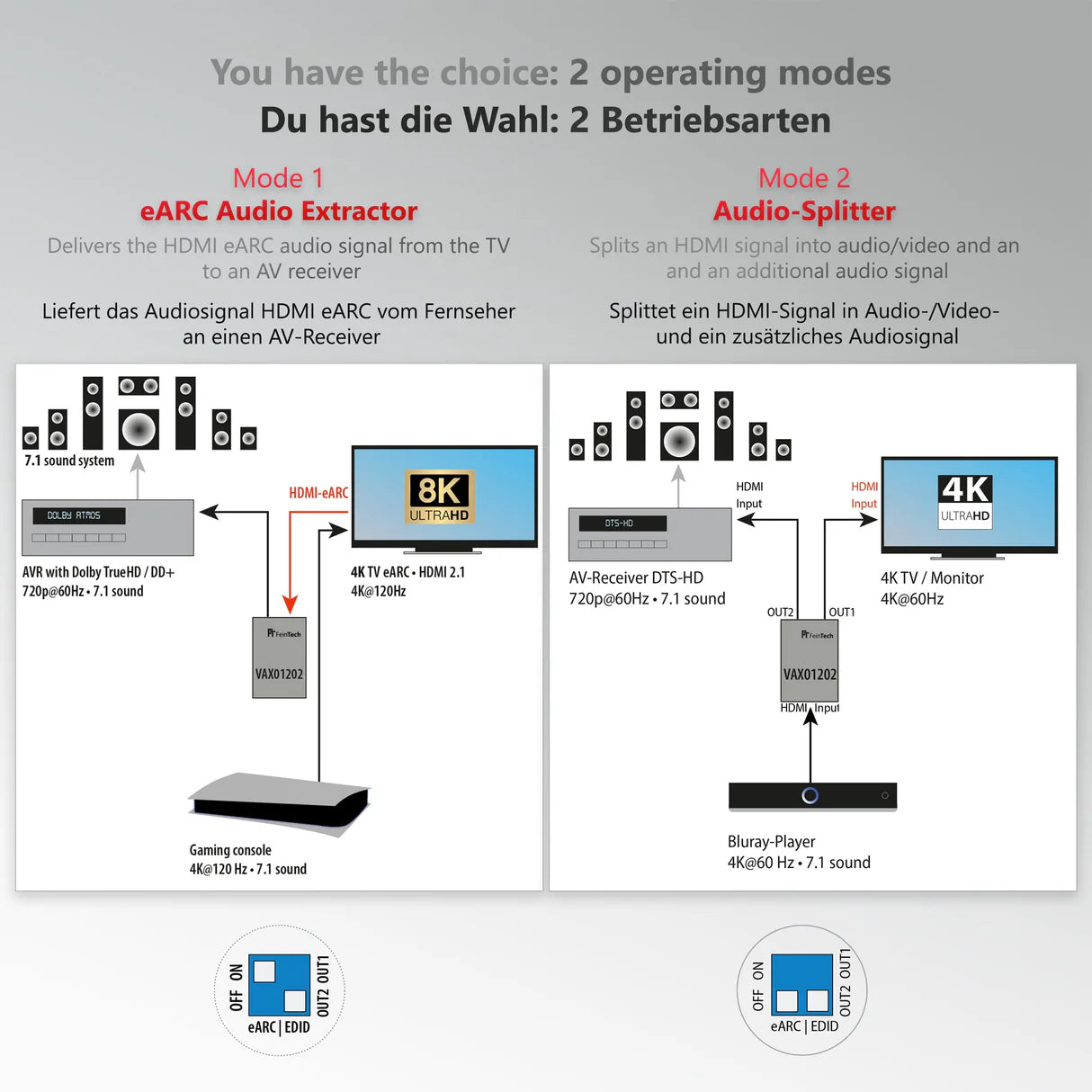

The FeinTech HDMI eARC Audio Extractor & Splitter is designed to extract and distribute high-quality audio from HDMI sources while supporting enhanced Audio Return Channel (eARC) functionality. It is ideal for advanced home theater setups requiring high-fidelity audio extraction and multi-display video distribution. - Supports HDMI 2.1 with full eARC functionality for high-bitrate audio formats - Extracts lossless audio including Dolby Atmos and DTS:X from compatible devices - Splits HDMI signals to multiple displays without compromising video or audio quality - Compatible with 4K UHD at 60Hz and HDR formats such as HDR10 and Dolby Vision - Plug-and-play design with automatic audio and video signal management Compatibility: Compatible with HDMI 2.1 and HDMI 2.0 devices including TVs, AV receivers, soundbars, gaming consoles, and Blu-ray players supporting eARC. Control options: No manual controls; automatic detection and routing of audio and video signals. Music sources: Supports PCM, Dolby Atmos, DTS:X, and other high-resolution HDMI audio formats. Inputs: 1 HDMI input with eARC support Outputs: Multiple HDMI outputs for video distribution; dedicated audio extraction output Suitable voltage: 5V DC via included power adapter. Cable lengths supported: Supports HDMI cable lengths up to 15 meters per output depending on cable quality. Connectors: Standard HDMI Type A female connectors for input and outputs; DC power input. Product weight: Approximately 130 grams. Dimensions: 120 x 60 x 25 mm (L x W x H). In the box: FeinTech HDMI eARC Audio Extractor & Splitter unit, 5V power adapter, user manual. Technical specifications: - HDMI Version: 2.1 - HDCP Support: 2.3 - Max Resolution: 4K UHD (3840x2160 @60Hz) - Bandwidth: Up to 48 Gbps - Audio Support: eARC, Dolby Atmos, DTS:X, PCM - HDR Support: HDR10, Dolby Vision - Power Consumption: Approximately 4W - Operating Temperature: 0°C to 40°C
