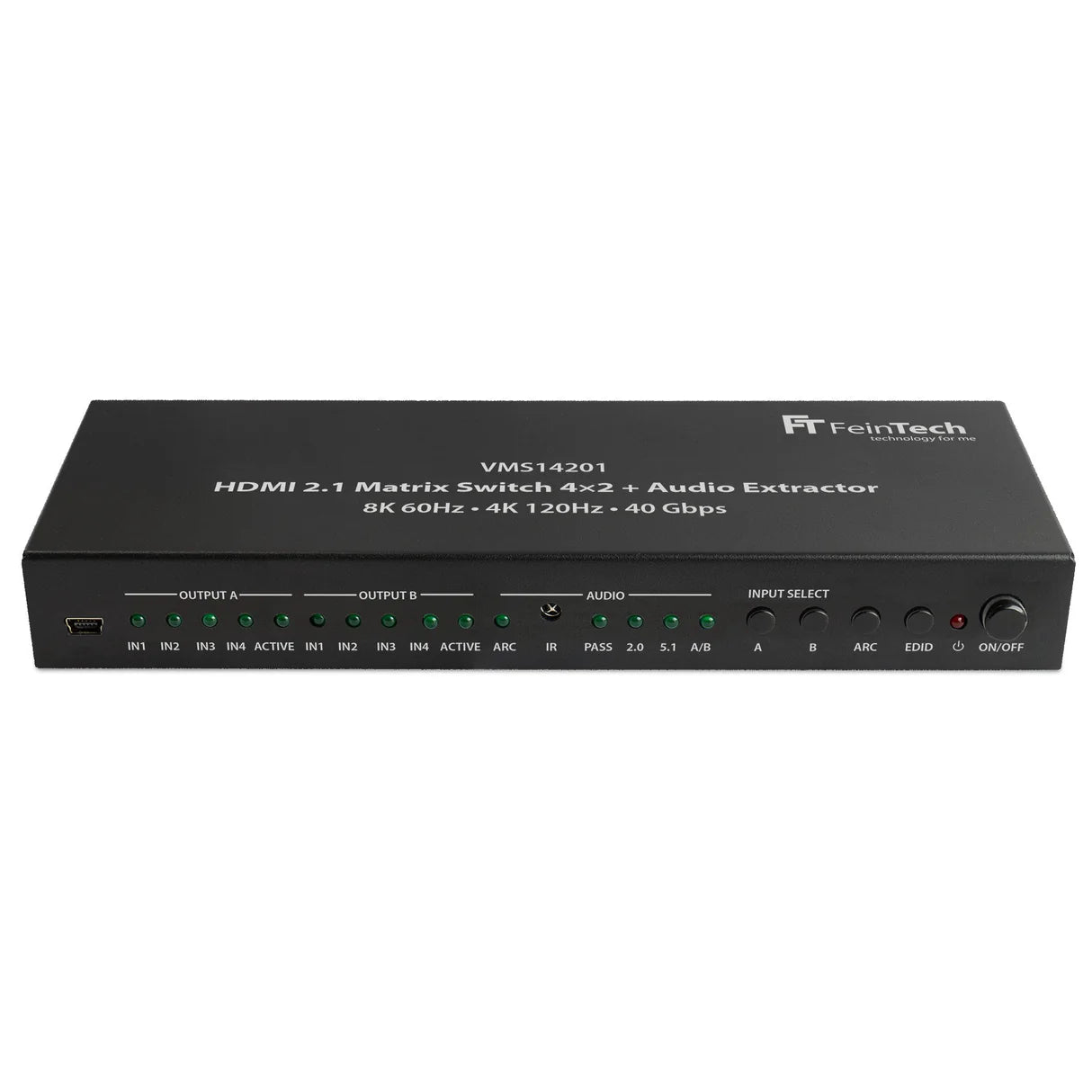

FeinTech VMS14201 HDMI 2.1 Matrix Switch 4 In 2 Out with Audio Extractor

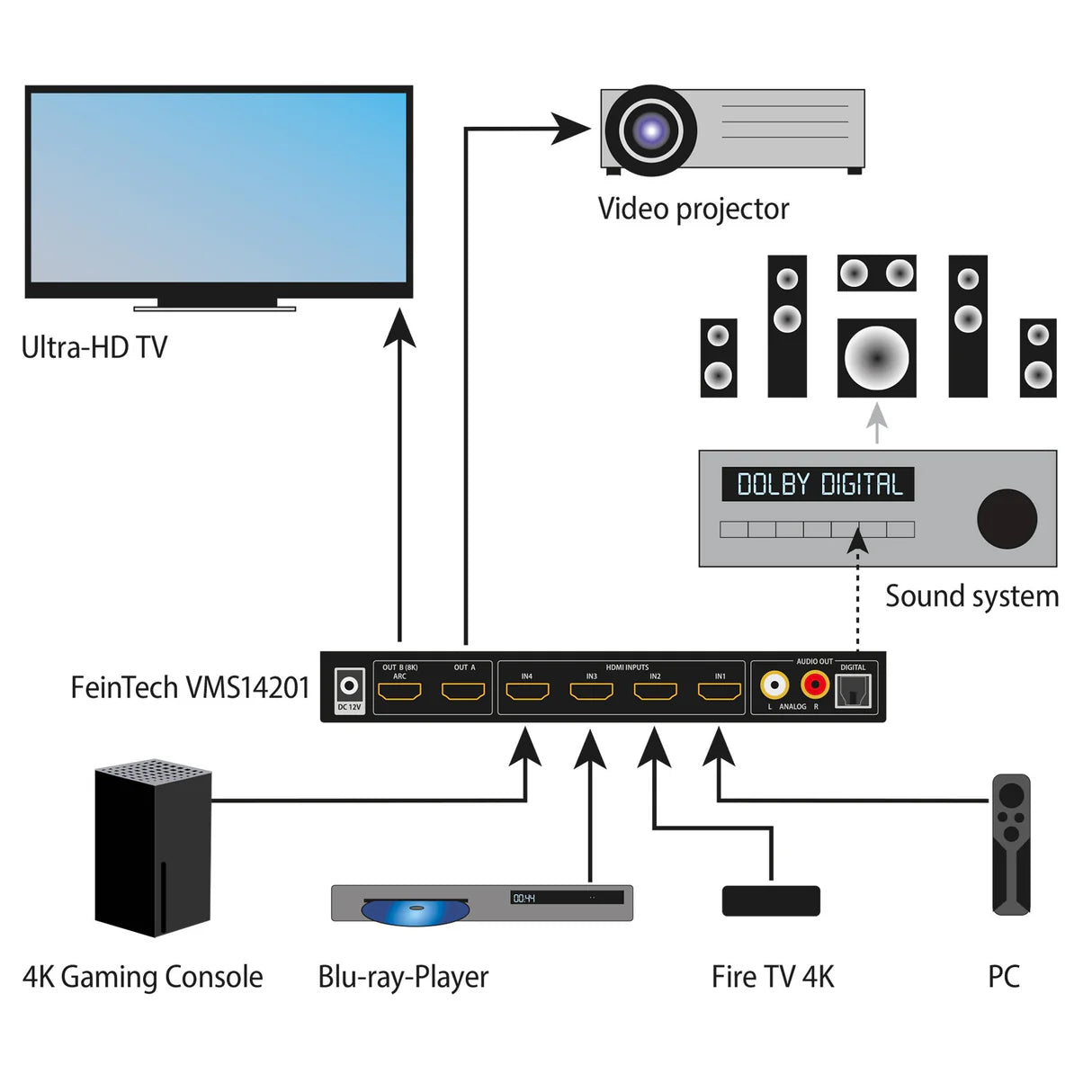

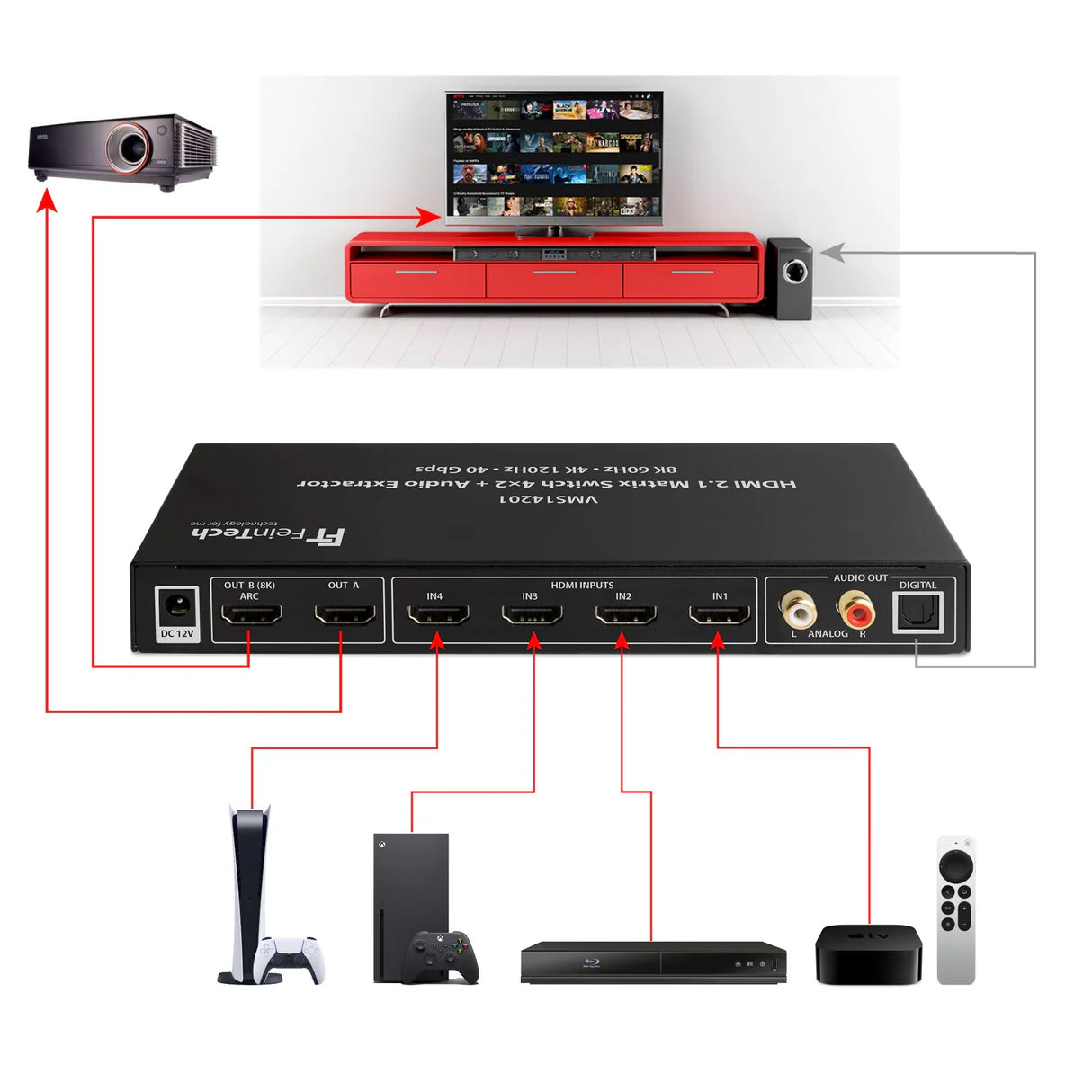

The FeinTech HDMI 2.1 Matrix Switch 4 In 2 Out with Audio Extractor is a cutting-edge AV matrix switch designed to route four HDMI 2.1 sources to two displays independently, while simultaneously extracting audio for external sound systems. It belongs to the category of advanced HDMI matrix switches with audio extraction capabilities. Main Features: • Supports HDMI 2.1 with bandwidth up to 48 Gbps, enabling 4K@120Hz and 8K@60Hz video resolutions • Allows independent routing of four HDMI inputs to two outputs • Integrated audio extractor supports multiple audio formats including Dolby Atmos and DTS:X • Equipped with ARC/eARC support for seamless audio return • User-friendly control via front panel buttons, IR remote, and RS-232 interface • Supports HDR10, Dolby Vision, and HDCP 2.3 for content protection and enhanced image quality Compatibility and Controls: Compatible with all HDMI 2.1 devices including gaming consoles, Blu-ray players, media streaming devices, and advanced AV receivers. Control options include front panel buttons, infrared remote control, and RS-232 serial commands. Inputs and Power: Includes four HDMI 2.1 inputs and two HDMI 2.1 outputs. Audio extraction ports support optical TOSLINK and analog stereo outputs. Operates on AC 100–240V power supply. Cable Lengths and Connectors: Features standard HDMI Type A connectors for inputs and outputs. Audio extraction via optical and 3.5 mm stereo jacks. Power adapter cable length approximately 1.5 meters. Dimensions and Weight: Robust chassis measuring approximately 260 x 120 x 50 mm, with a weight around 1.2 kilograms. In the Box: - FeinTech HDMI 2.1 Matrix Switch unit - IR remote control - AC power adapter - User manual Technical Specifications: - HDMI version: 2.1, HDCP 2.3 compliant - Maximum resolution: 8K@60Hz, 4K@120Hz - Bandwidth: Up to 48 Gbps - Audio formats supported: Dolby Atmos, DTS:X, LPCM 7.1, Dolby TrueHD - Outputs: 2 HDMI outputs, optical audio output, analog stereo output - Control interfaces: Front panel, IR remote, RS-232 - Power supply: AC 100–240V, 50/60Hz - Operating temperature: 0°C to 45°C
