WiiM Amp Ultra Streaming Amplifier - Silver

Regular price €639,00 EUR
Regular price €639,00 EUR Sale price €639,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

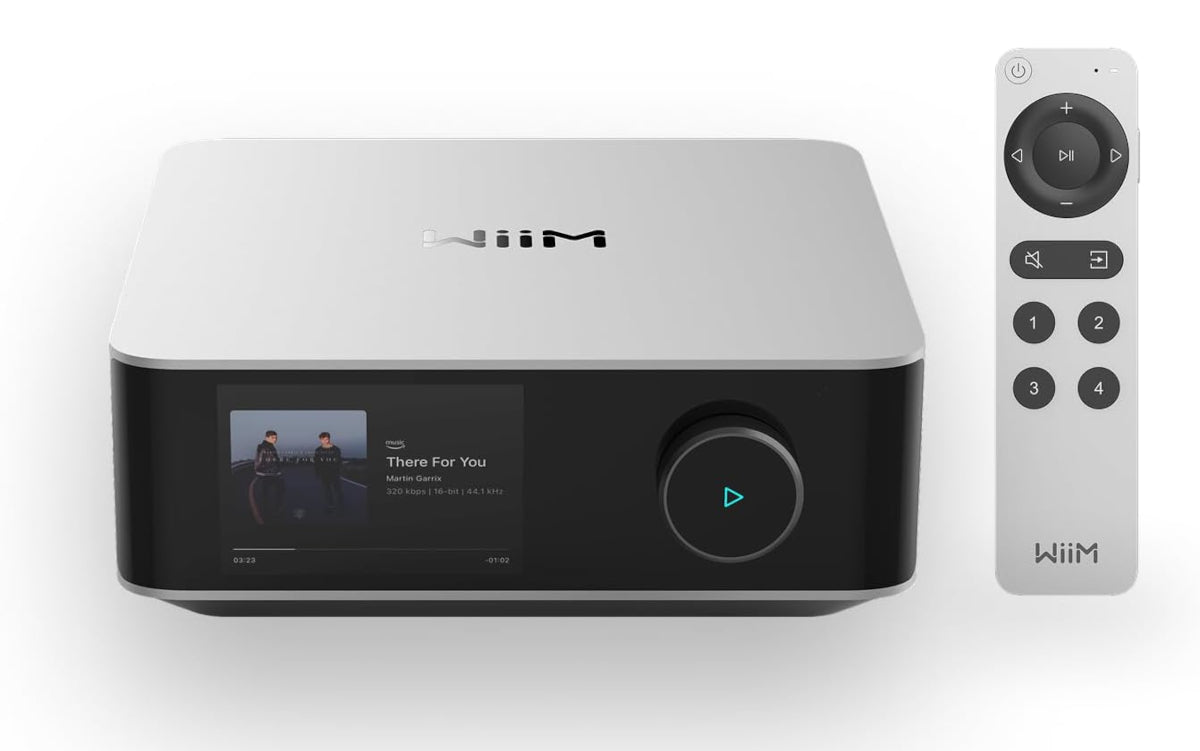

WiiM Amp Ultra is WiiM's flagship all-in-one streaming amplifier for music and TV: 100 W per channel of ultra-low-distortion power, a 3.5" touchscreen and built-in room correction, all in a precision-machined unibody aluminium chassis.

Key features

  • 100 W per channel at 8 Ω / 200 W per channel at 4 Ω from dual TI TPA3255 Class-D amplifiers
  • ESS ES9039Q2M DAC and TI OPA1612 op-amps for 121 dB SNR and -106 dB (0.0005%) THD+N
  • Post Filter Feedback (PFFB) technology for consistent, load-independent sound with any passive speaker

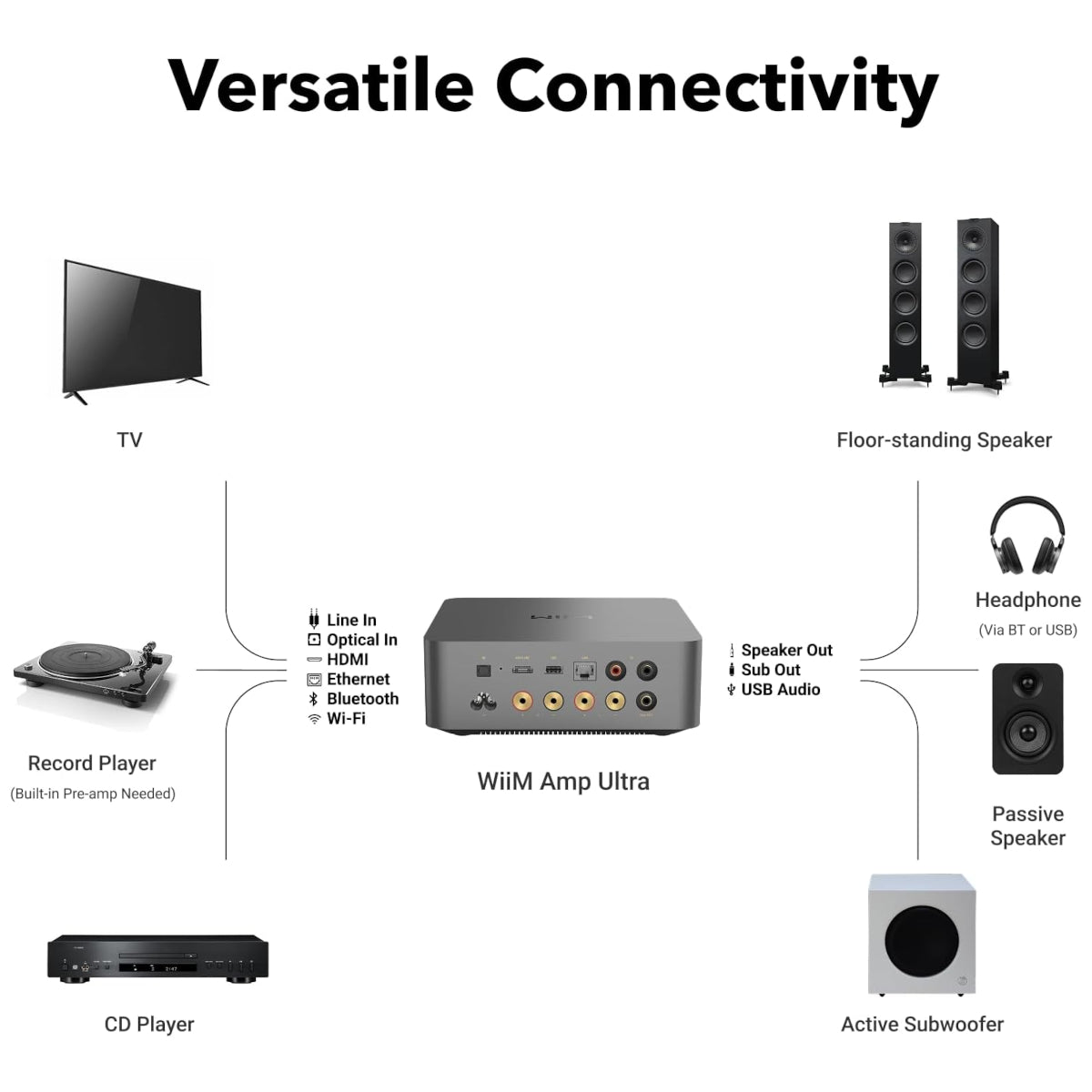

  • HDMI ARC and optical input with Dolby Digital, Line In for a turntable or CD player, subwoofer output and USB Audio Out
  • 3.5" LCD touchscreen and multifunction rotary knob for volume, playback and settings
  • Google Cast Audio, Spotify Connect, TIDAL Connect, Amazon Music Casting, DLNA, QPlay 2.0, Squeezelite and Roon Ready
  • RoomFit™ room correction, 24 preset EQs, 10-band Graphic EQ and 10-band Parametric EQ
  • Silent passive cooling with copper heat pipe, large aluminium heatsink and PID thermal control
  • Includes the aluminium WiiM Voice Remote 2 with Push-to-Talk voice control

Specifications

  • Output power (THD 0.08%, both channels driven): 100 W/ch at 8 Ω, 200 W/ch at 4 Ω
  • Amplifier: Class-D with PFFB, dual TI TPA3255
  • THD+N: -106 dB (0.0005%) at 5 W; SNR: 121 dB; dynamic range: 121 dB
  • Damping factor: 282 (8 Ω, 1 kHz), 146 (4 Ω, 1 kHz)
  • Frequency response: 20 Hz – 45 kHz; 20 Hz – 20 kHz (±0.5 dB)
  • Speaker impedance: 2 – 8 Ω
  • DAC: ESS ES9039Q2M, up to 192 kHz/24-bit bit-perfect
  • Inputs: Line In (2 Vrms, ADC up to 192 kHz/24-bit), optical up to 192 kHz/24-bit, HDMI ARC (stereo PCM and Dolby Digital; DTS not supported), USB storage (FAT32, NTFS, EXT4)
  • Outputs: gold-plated speaker binding posts (banana plugs or bare wire), subwoofer out, USB Audio Out (UAC 2.0, up to 192 kHz/24-bit)
  • Network: Wi-Fi 6 (upgradeable to Wi-Fi 6E via software), 10/100 Mbps Ethernet
  • Bluetooth: 5.3
  • Power: 100–240 V AC, 50/60 Hz
  • Dimensions: 200 × 211 × 76.2 mm
  • Weight: 2.45 kg

In the box

  • WiiM Amp Ultra, WiiM Voice Remote 2, 4 × banana plug, AC power cable, RCA cable, HDMI cable, optical cable, quick start guide

Colour: Silver.
