WiiM

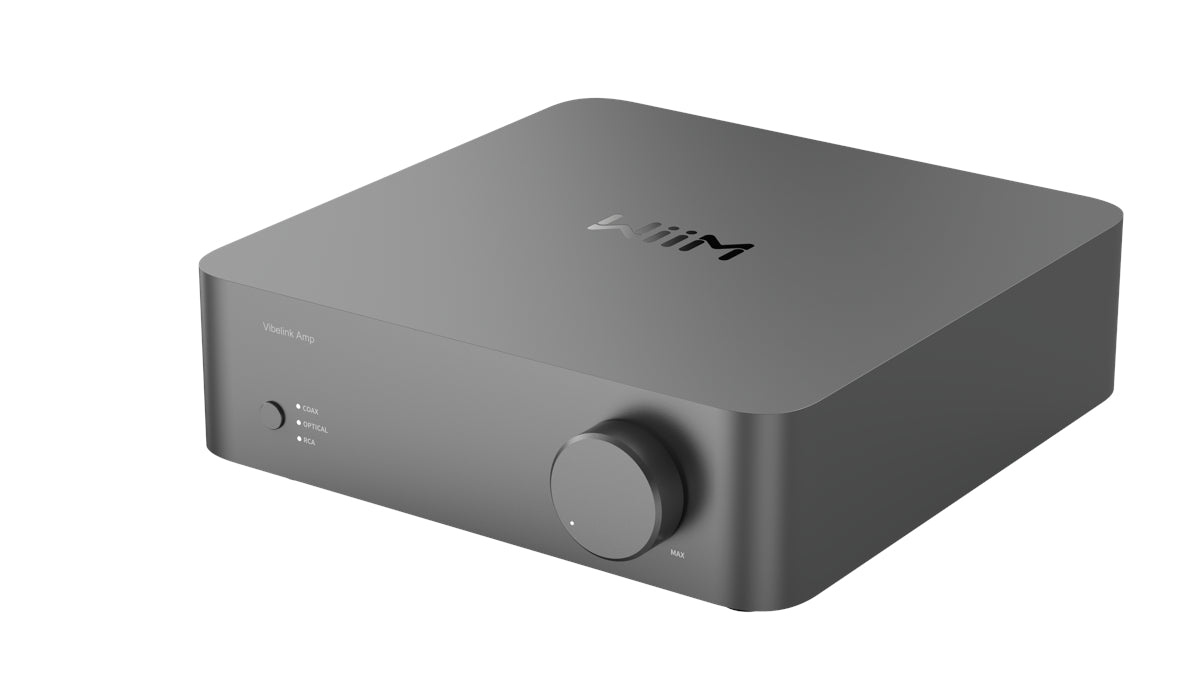

WiiM Vibelink Amp Power Amplifier
Regular price
€369,00 EUR
Regular price
€369,00 EUR
Sale price
€369,00 EUR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WiiM Vibelink Amp is a pure stereo power amplifier without streaming hardware, designed to pair with a WiiM Mini, Pro, Pro Plus or Ultra – or any other source – for a clean two-box hi-fi stack.
Key features
- 100 W per channel at 8 Ω from a Class-D amplifier with PFFB (Post-Filter Feedback) technology
- THD+N ≤0.0005% and SNR ≥120 dB for a dead-quiet background
- ESS 9039Q2M DAC with bit-perfect playback up to 192 kHz/24-bit via optical and coaxial inputs
- Pure analogue RCA input with no ADC conversion for an untouched signal path
- 12V Trigger In for automatic power-on with a paired streamer, and Auto Standby after 30 or 60 minutes
- Unibody aluminium chassis with copper heat pipe, large aluminium heatsink and PID thermal control – silent passive cooling
Specifications
- Output power: 100 W/ch at 8 Ω (stereo)
- Amplifier: Class-D with PFFB
- THD+N: ≤0.0005%; SNR: ≥120 dB; dynamic range: ≥120 dB
- Frequency response: 20 Hz – 20 kHz (±0.5 dB)
- Speaker impedance: 3 – 8 Ω
- DAC: ESS 9039Q2M, up to 192 kHz/24-bit

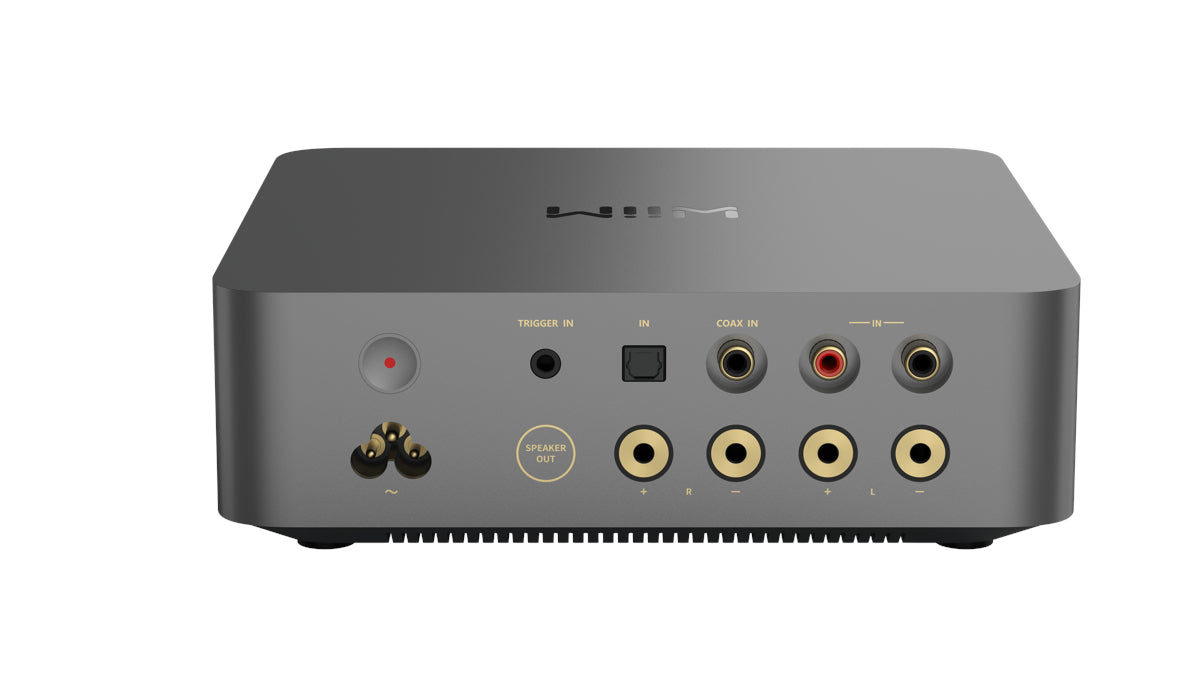

- Inputs: 1 × RCA stereo (pure analogue), 1 × optical (TOSLINK) up to 192 kHz/24-bit, 1 × coaxial up to 192 kHz/24-bit, 12V Trigger In
- Outputs: gold-plated speaker binding posts (banana plugs or bare wire)

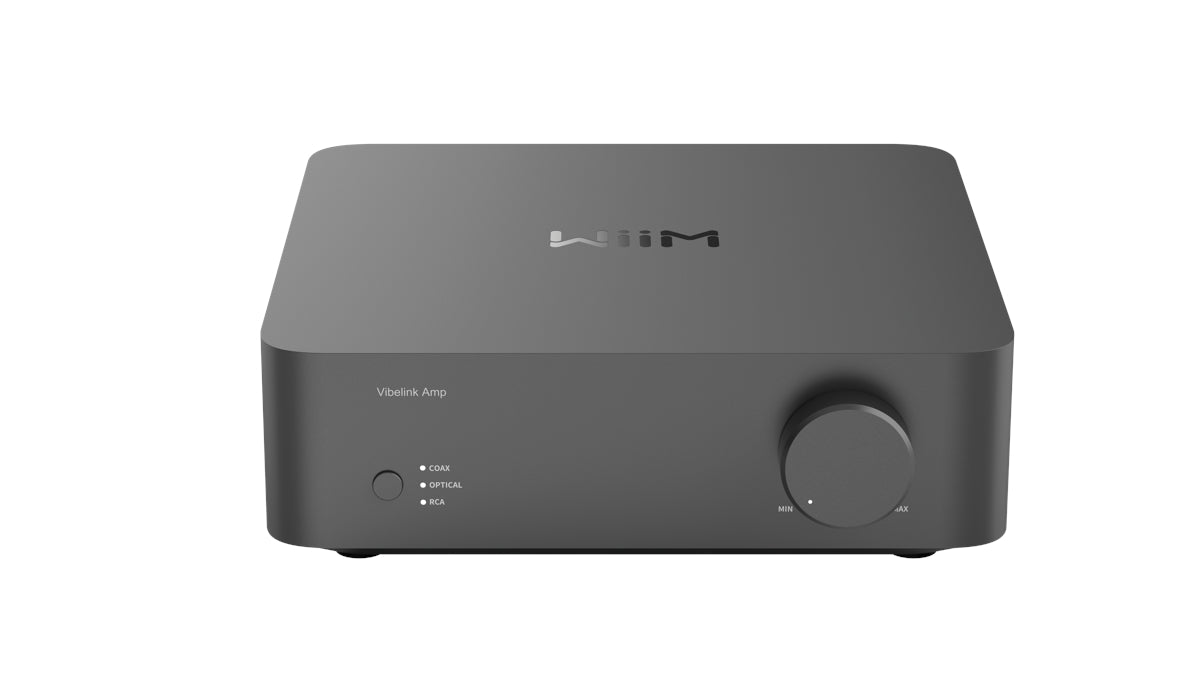

- Controls: volume knob, three RGBW LEDs for input and status
- Power: 100–240 V AC, 50/60 Hz, 3 A max
- Dimensions: 200 × 212.5 × 66 mm
- Weight: 2.05 kg
In the box
- WiiM Vibelink Amp, power cable, RCA cable, optical cable, 4 × banana plug, user guide
Colour: Space Gray.
